February 2013
4-117
ColorQube® 9303 Family
REP 12.13-110
Repairs/Adjustments
REP 12.13-110 LCSS Un-Docking
Parts List on PL 12.15.
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Take care not to topple the LCSS. The LCSS is unstable when un-docked from the
machine. Do not show the customer how to un-dock the LCSS.
1. If necessary, disconnect the harnesses between the LCSS and the machine.
2. Open the LCSS front door.

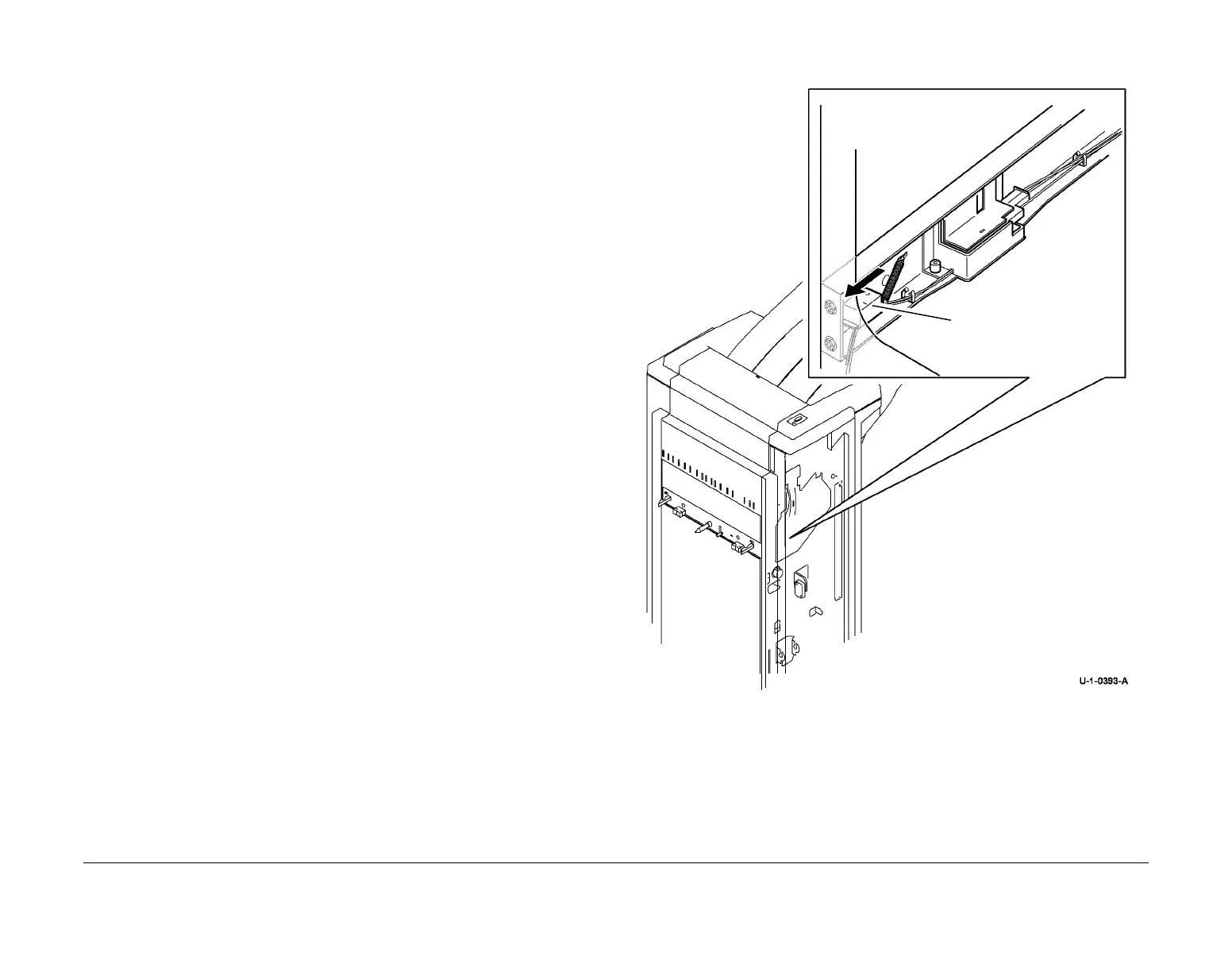

3. Figure 1, release the LCSS link bracket assembly.
Figure 1 LCSS link bracket assembly
Replacement
Line up the LCSS latches to the machine apertures then push the two units firmly together until
they latch.
1
Press the latch block forward
to release both latches.
2
Roll the LCSS away from
the machine.
To Next Page
