February 2013
4-100
ColorQube® 9303 Family
REP 12.2-110
Repairs/Adjustments
REP 12.2-110 Input Drive Belt and Paper Entry Transport
Motor
Parts List on PL 12.40.
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the LCSS rear cover, REP 12.1-110.
2. Remove the motor and drive belt, Figure 1.

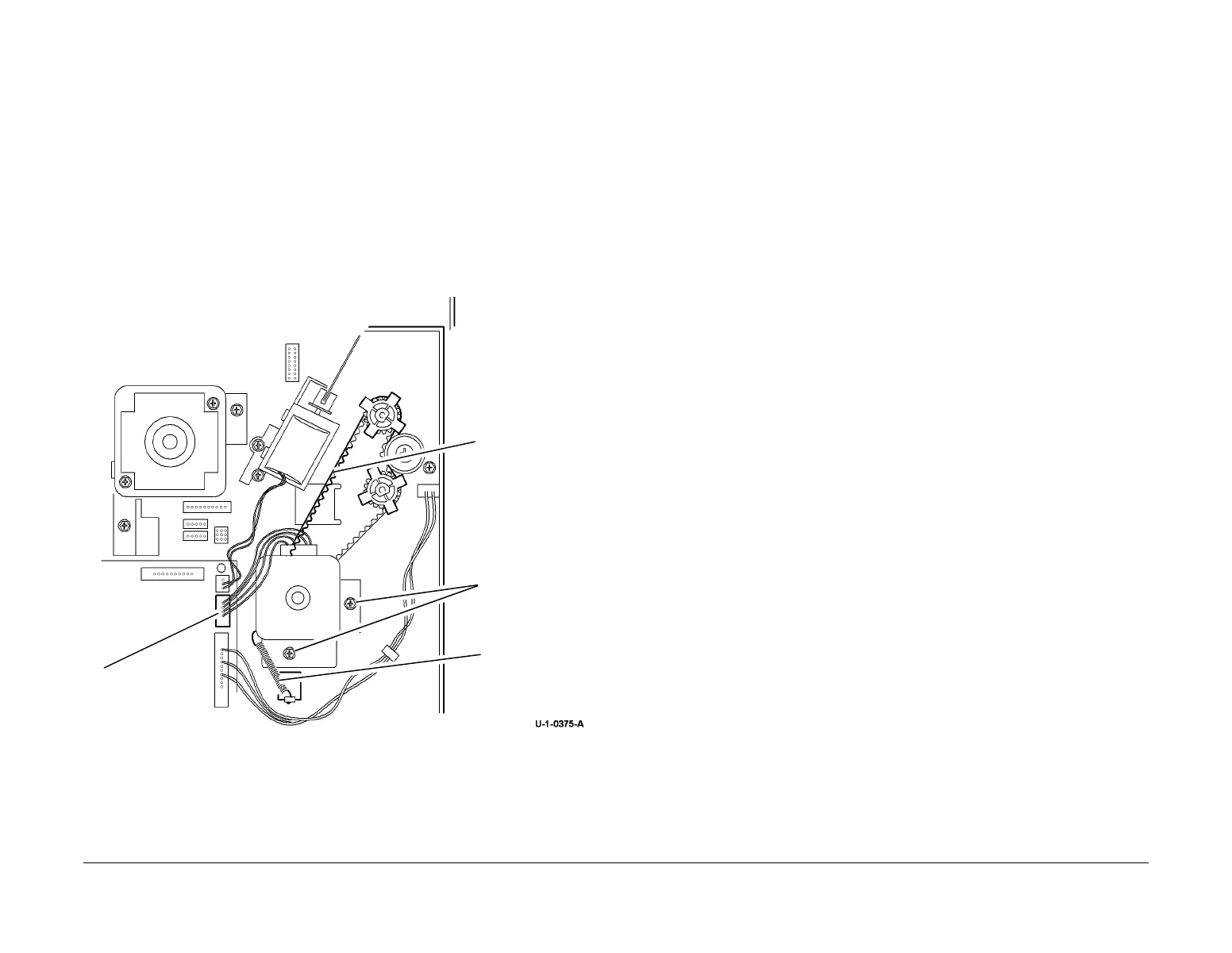

Figure 1 Removing the drive belt
Replacement
1. Place the belt around the pulleys.
2. Install the motor screws, but do not tighten.
3. Install the spring
4. Rotate the shaft by hand to ensure the belt runs smoothly over the pulleys and allow the
spring to tension the belt, ADJ 12.4-110.
5. Tighten the motor screws and re-connect the harness.
6. Install the LCSS rear cover, REP 12.1-110.
1
Disconnect the
motor harness.
2
Remove the
spring.
4
Remove the drive
belt.
3
Remove 2 screws
and motor
