Xerox ColorQube 9303 Series Service Manual

February 2013
5-35
ColorQube® 9303 Family
PL 12.115
Parts Lists

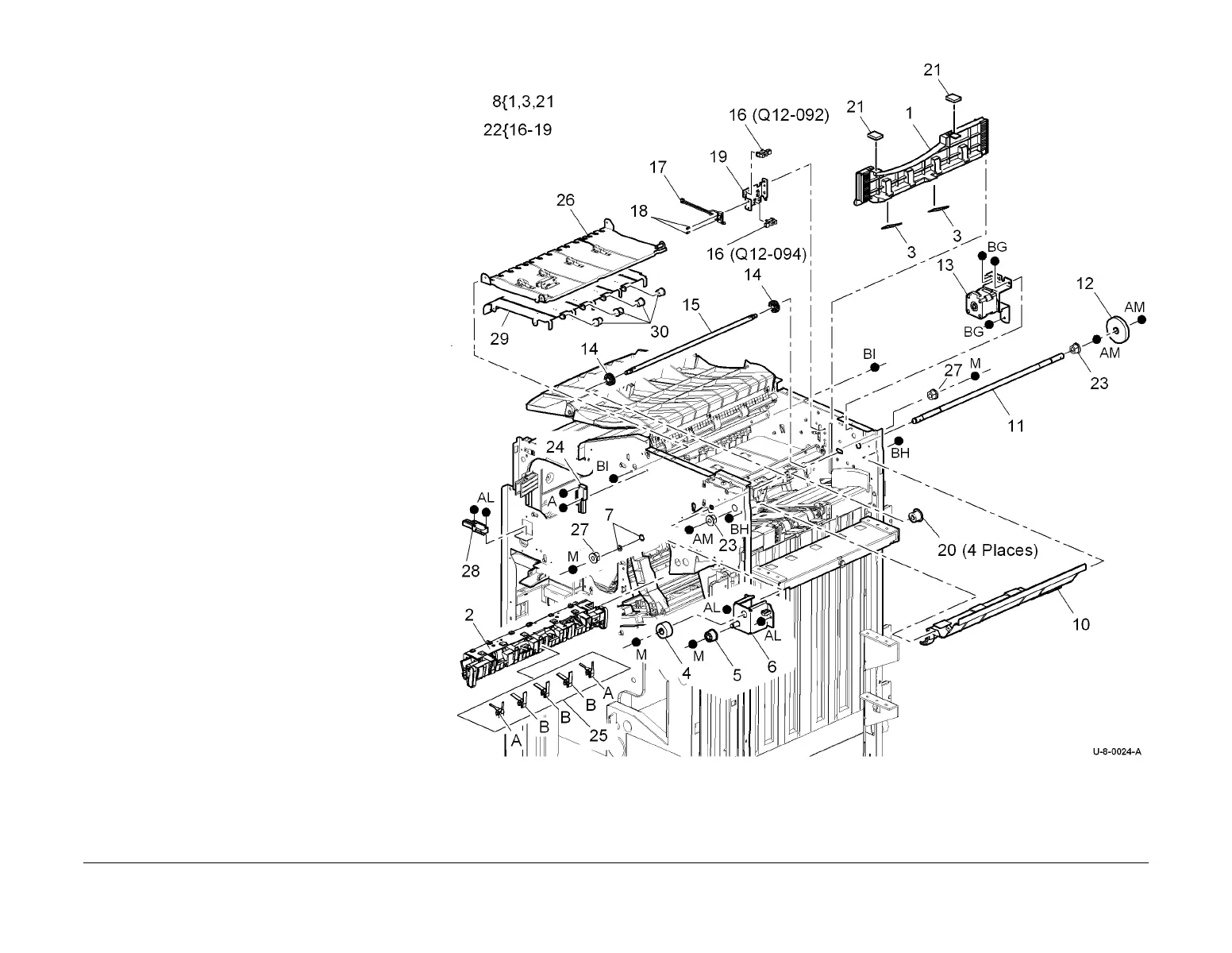

PL 12.115 HVF Ejector, Pressing and
Support (2 of 2)
Item Part Description
1 – Paper pusher (P/O PL 12.115 Item
8)
2 033K04642 Paddle unit (REP 12.49-171)
3 – Pusher mylar (P/O PL 12.115 Item
8)
4 – Timing belt pulley (Not spared)
5 – Timing belt tensioner (Not spared)
6 – Front stacker pulley bracket (Not
spared)
7 – Thrust washer (Not spared)
8 050K68501 Paper pusher assembly (REP
12.53-171)
9 – Not used
10 – Compile exit upper guide (Not
spared)
11 – Stacker main drive gear shaft (Not
spared) (REP 12.37-171)
12 – Stacker main drive gear (Not
spared) (REP 12.37-171)
13 674K03550 Paper pusher motor assembly
(MOT12-265) (REP 12.51-171)
14 – Pinion gear (Not spared)
15 – Pinion gear shaft (Not spared)
16 130E12830 Paper pusher upper sensor (Q12-
092)/Paper pusher lower sensor
(Q12-094) (REP 12.54-171)
17 – Stapler gate safety switch (S12-
319) (P/O PL 12.115 Item 22)
18 – Sensor screw (P/O PL 12.115 Item
22)
19 – Sensor assembly bracket (P/O PL
12.115 Item 22)
20 006K32980 Stacker idler roll (REP 12.10-171)
21 – Pusher dampers (P/O PL 12.115
Item 8)
22 674K03541 Sensor assembly (REP 12.54-171)
23 013E37150 Stacker driving shaft bearing (REP
12.37-171)
24 110K20900 Top cover interlock switch (S12-
197)
25 033K04651 Paddles (A) outer 2 off, (B) inner 3
off (REP 12.101-171)
26 059K69931 Top jam clearance guide assembly
27 013E25800 Copper bearing
28 110K13980 Front door interlock switch (S12-
303)
29 – Lower exit guide (Not spared)
30 006K33390 Exit idler roller (x4)
