February 2013
5-24
ColorQube® 9303 Family
PL 12.40
Parts Lists

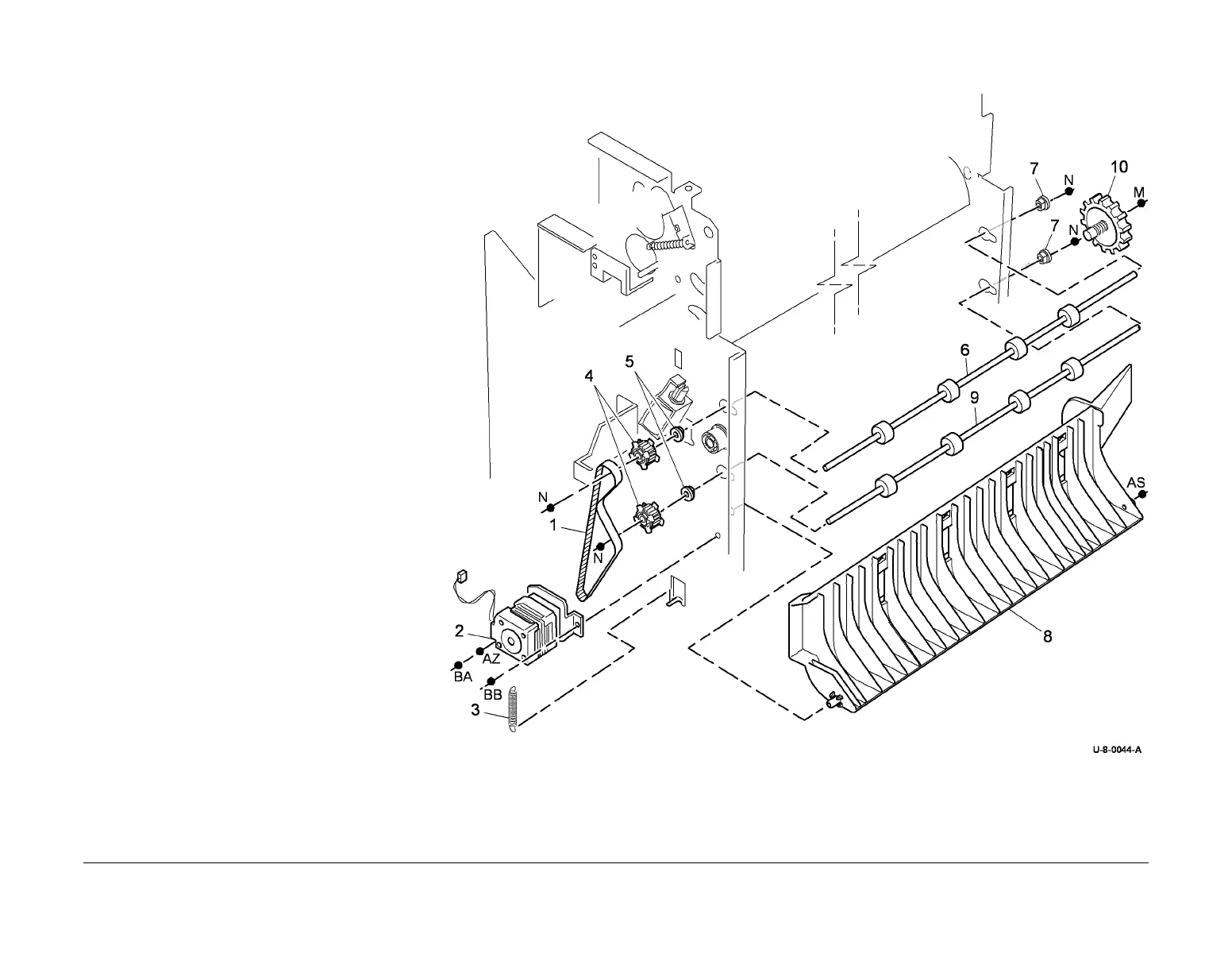

PL 12.40 LCSS Paper Entry Transport
Item Part Description
1 023E24340 Input drive belt (REP 12.2-110)
2 127K55860 Transport motor 1 (MOT12-223)
(REP 12.2-110)
3 – Spring (Not spared)
4 – Pulley (Not spared)
5 013E37460 Dry bearing
6 – Feed roll shaft (short) (Not spared)
7 013E37470 Bearing
8 – Paper entry guide assembly (REF:
PL 12.70 Item 1)
9 – Feed roll shaft (long) (Not spared)
10 006K32780 Thumb wheel
