February 2013
4-130
ColorQube® 9303 Family
REP 12.5-171
Repairs/Adjustments
REP 12.5-171 Right Side-Cover Removal
Parts List on PL 12.105.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. With the machine powered on, use the PTU or dC330 code 12-242 to lower Bin 1.
2. Remove Bin 1, REP 12.4-171.
3. If a HVF unit only, remove the middle right side cover, PL 12.105 Item 17.
If a HVF BM unit installed, remove the HVF BM bin 2 assembly, PL 12.190 Item 8.
4. Remove the right side-cover, Figure 1.

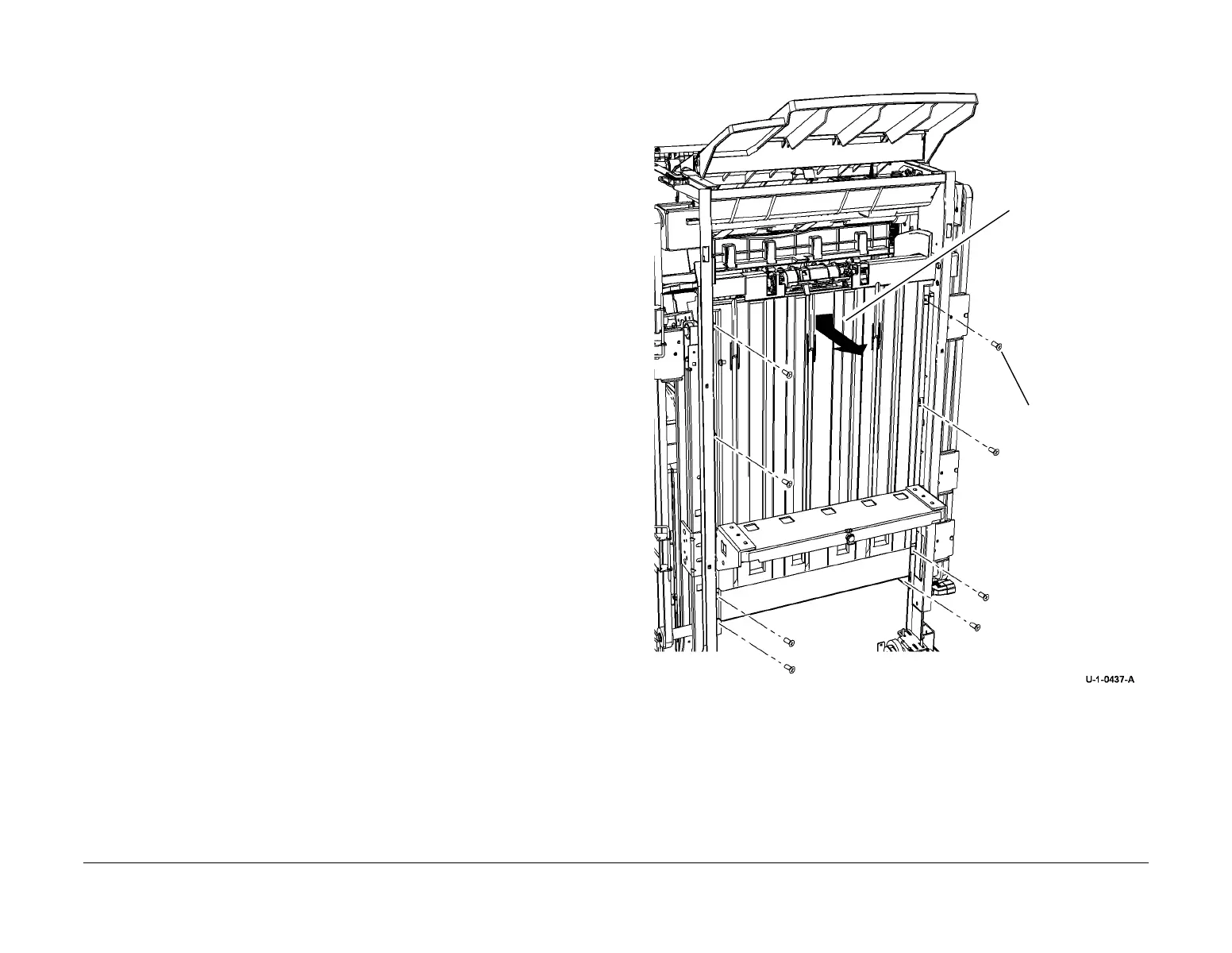

Figure 1 Right side cover removal
Replacement
The replacement procedure is the reverse of the removal procedure.
1
Remove 8
screws.
2
Remove the right
side cover.
To Next Page
