February 2013
4-310
ColorQube® 9303 Family
REP 83.2
Repairs/Adjustments
REP 83.2 Duplex End Sensor, Nip C Solenoid and HPP
Diverter Solenoid
Parts List on PL 82.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Take care during this procedure. Motors will become hot during normal operation.
1. Remove the horizontal paper path, REP 83.1.
2. Prepare to remove the duplex end sensor, Figure 1.
NOTE: Hold down the cover against the force of the spring when removing screws.

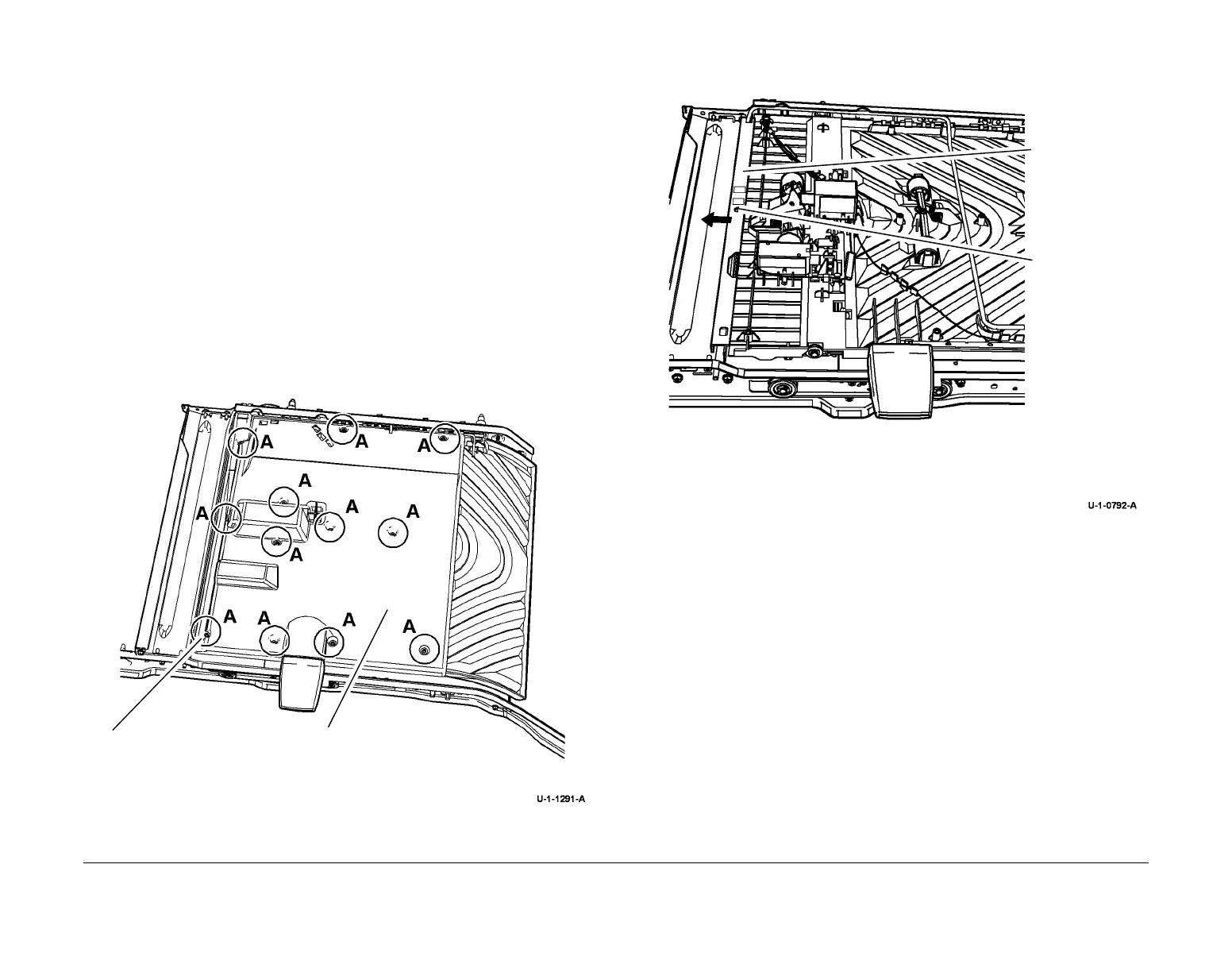

Figure 1 Preparation
3. Remove the duplex end sensor, Figure 2.
Figure 2 Duplex end sensor removal
1
Remove screws marked A.
2
Remove the top cover.
1
Move sensor
retainer to the left
2
Disconnect har-
ness and remove
sensor
To Next Page
