Xerox ColorQube 9303 Series Service Manual

February 2013
5-32
ColorQube® 9303 Family
PL 12.100
Parts Lists

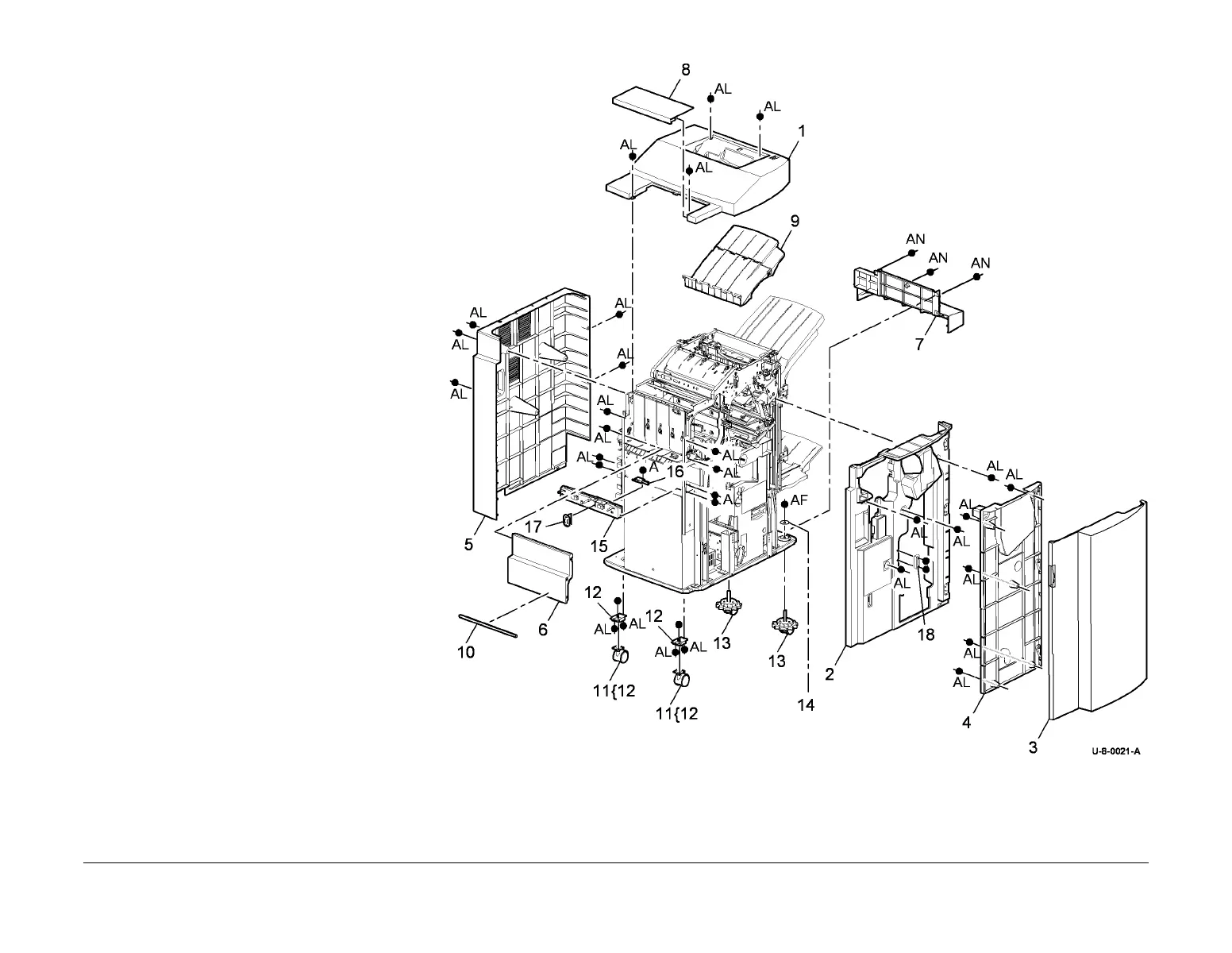

PL 12.100 HVF Covers and Docking
Item Part Description
1 848E40510 Top cover (REP 12.1-171)
2 848K12501 Front cover (REP 12.1-171)
3 848E17790 Front door (REP 12.1-171)
4 848K12510 Door support (REP 12.1-171)
5 848E40521 Rear cover (REP 12.1-171)
6 848K12530 Vent cover (REP 12.1-171)
7 848E17800 Foot cover (REP 12.1-171)
8 848E17810 Inserter cover (REP 12.1-171)
9 848E40500 Top tray (REP 12.3-171)
10 – Seal (Not spared)
11 017K04830 Fixed caster assembly (REP 12.96-
171)
12 – Fixed caster bracket (P/O PL
12.100 Item 11)
13 017K04630 Adjustable caster (REP 12.96-171)
14 – Adjustable caster washer (P/O PL
12.100 Item 13)
15 017K04760 Mounting bracket assembly
16 110K13980 Docking interlock switch (S12-177)
17 120K03450 Docking actuator (P/O PL 12.100
Item 15)
18 049K13570 Bookletmaker interlock bracket
