February 2013
5-68
ColorQube® 9303 Family
PL 62.10
Parts Lists

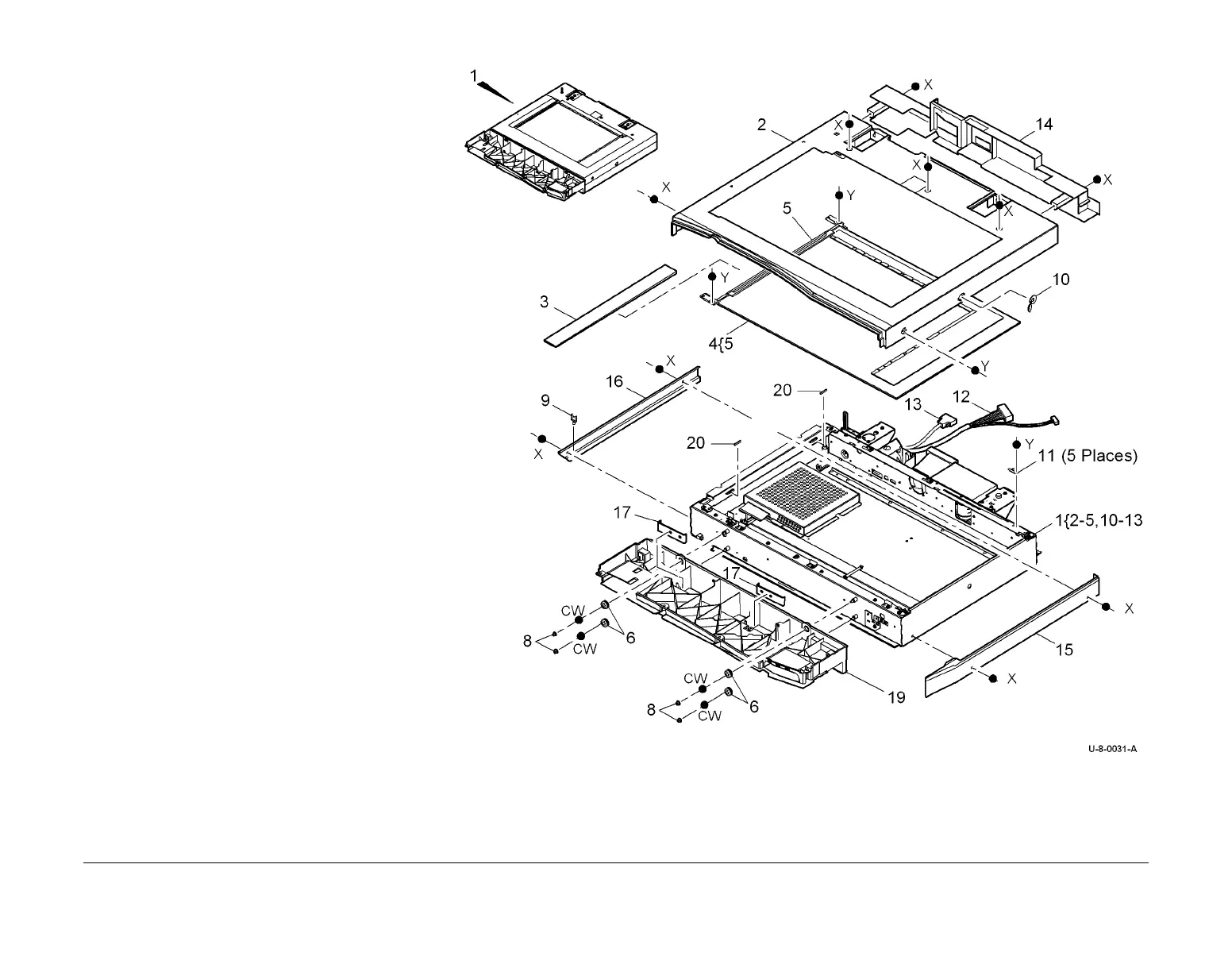

PL 62.10 Scanner Module, CVT/
Document Glass
Item Part Description
1 062K28322 Scanner module (REP 62.1)
2 – Top cover (P/O PL 62.10 Item 1)
(REP 62.2, ADJ 62.4)
3 090E02581 CVT Glass (See NOTE) (REP 62.3)
4 090K02560 Document glass assembly (REP
62.3)
5 032K09770 CVT Ramp assembly (REP 62.3)
6 – Grommet (Not spared)
7 – Not used
8 – Nut (Not spared)
9 – Harness clamp (Not spared)
10 – Top cover plug (Not spared)
11 – Document glass securing bracket
(P/O PL 62.10 Item 1)
12 – DADH/IIT power comms harness
(PJ8, PJ18, PJ920) (REF: PL 62.16
Item 7)
13 952K00380 IIT video/SBC PWB harness (PJ15,
PJ922)
14 848E69071 Scanner rear cover
15 – Scanner side cover (RH) (Not
spared)
16 – UI harness cover (Not spared)
17 – Latch plate (Not spared)
18 – Not used
19 – UI Base (Not spared) (REP 2.1)
20 – Rubber stop (Not spared)
NOTE: 1. Refer to ADJ 62.1 for the optics cleaning
procedure.
