February 2013
4-87
ColorQube® 9303 Family
REP 10.17
Repairs/Adjustments
REP 10.17 Roller Nip P
Parts List on PL 10.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the exit paper path, REP 10.20.
2. Remove the belt and pulley, Figure 1.

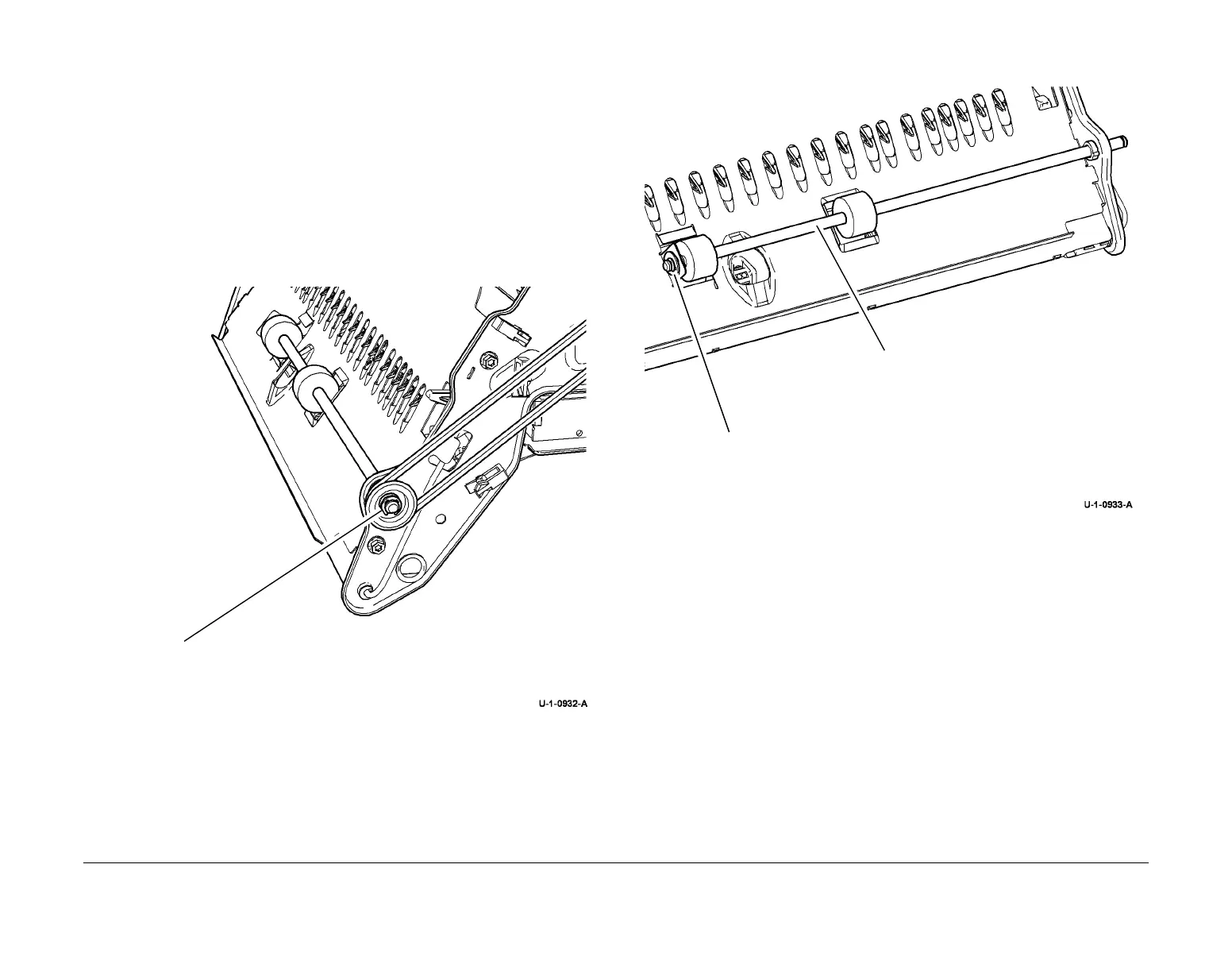

Figure 1 Belt and pulley removal
3. Remove roller nip P, Figure 2.
Figure 2 Roller nip removal
Replacement
Replacement is the reverse of the removal procedure.
1
Remove the e-clip, gear and drive belt.
1
Remove the e-clip and bearing.
2
Remove the roller nip P.
To Next Page
