ColorQube® 9303 Family
GP 46
General Procedures/Information
GP 46 How to Identify the Different Printhead Connectors
Purpose
To identify both types of connector that can be used to connect the video and wave amp cables
to the printheads.
Description
Two types of connector, type A and type B, can be used to secure the video and wave amp
cables to the printheads. Type A cables can only be used with type A printheads and type B
cables with type B printheads. Both types of cables and printheads may be present in the
machine.
To identify both types of connector, refer to:
• Type A
• Type B
Type A

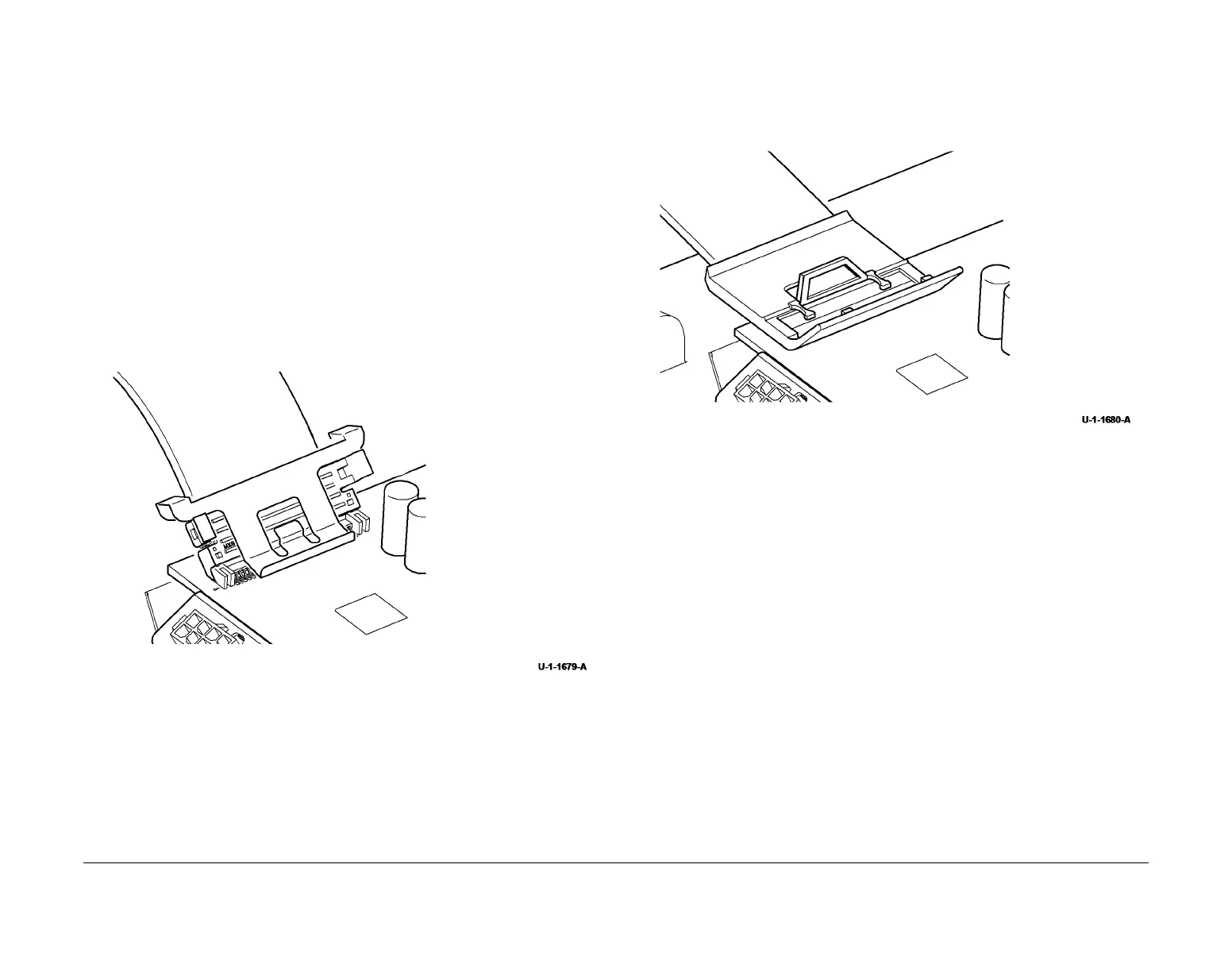

Type A connectors are shown in Figure 1. They are secured to the printhead by cable clips.
Figure 1 Type A
Type B
Type B connectors are shown in Figure 2. They are secured to the printheads by a latch mech-
anism.
Figure 2 Type B
