February 2013
4-301
ColorQube® 9303 Family
REP 82.3, REP 82.4
Repairs/Adjustments
REP 82.3 Tray 3 Horizontal Transport Assembly
Parts List on PL 81.35
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
CAUTION
Take care when removing tray 3 support bracket from its snap in mounting.
1. Remove tray 1, REP 71.1.

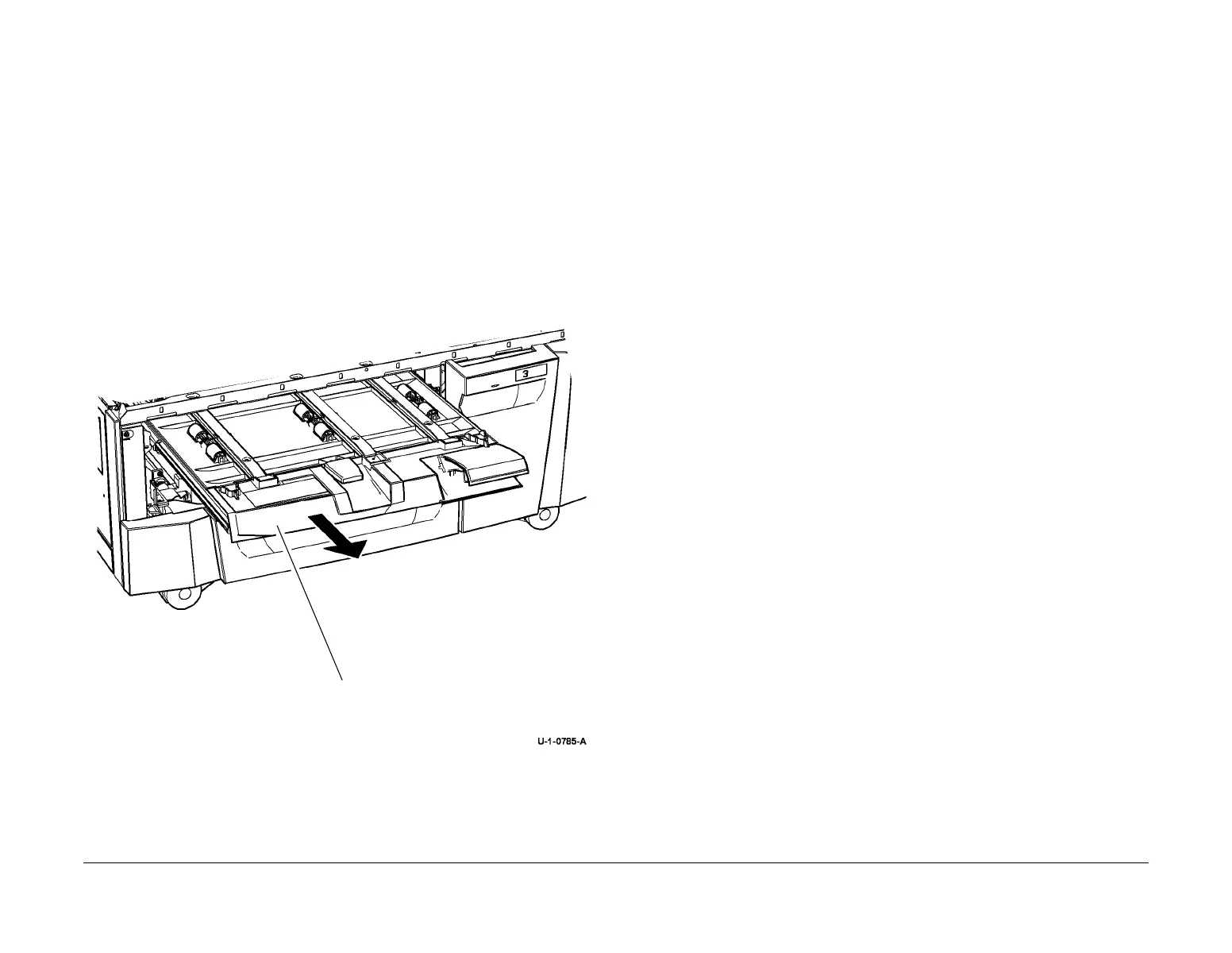

2. Remove horizontal transport assembly, Figure 1
Figure 1 Remove transport assembly
Replacement
Replacement is the reverse of the removal procedure.
REP 82.4 Tray 3 Horizontal Transport Rolls
Parts List on PL 81.35
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the tray 3 horizontal transport assembly, REP 82.3.
Pull out the horizontal transport assembly
To Next Page
