February 2013
4-303
ColorQube® 9303 Family
REP 82.5
Repairs/Adjustments
REP 82.5 Tray 5 Transport motor
Parts List on PL 81.40
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the rear cover, REP 75.8.
2. Remove the drives plate, Figure 1.

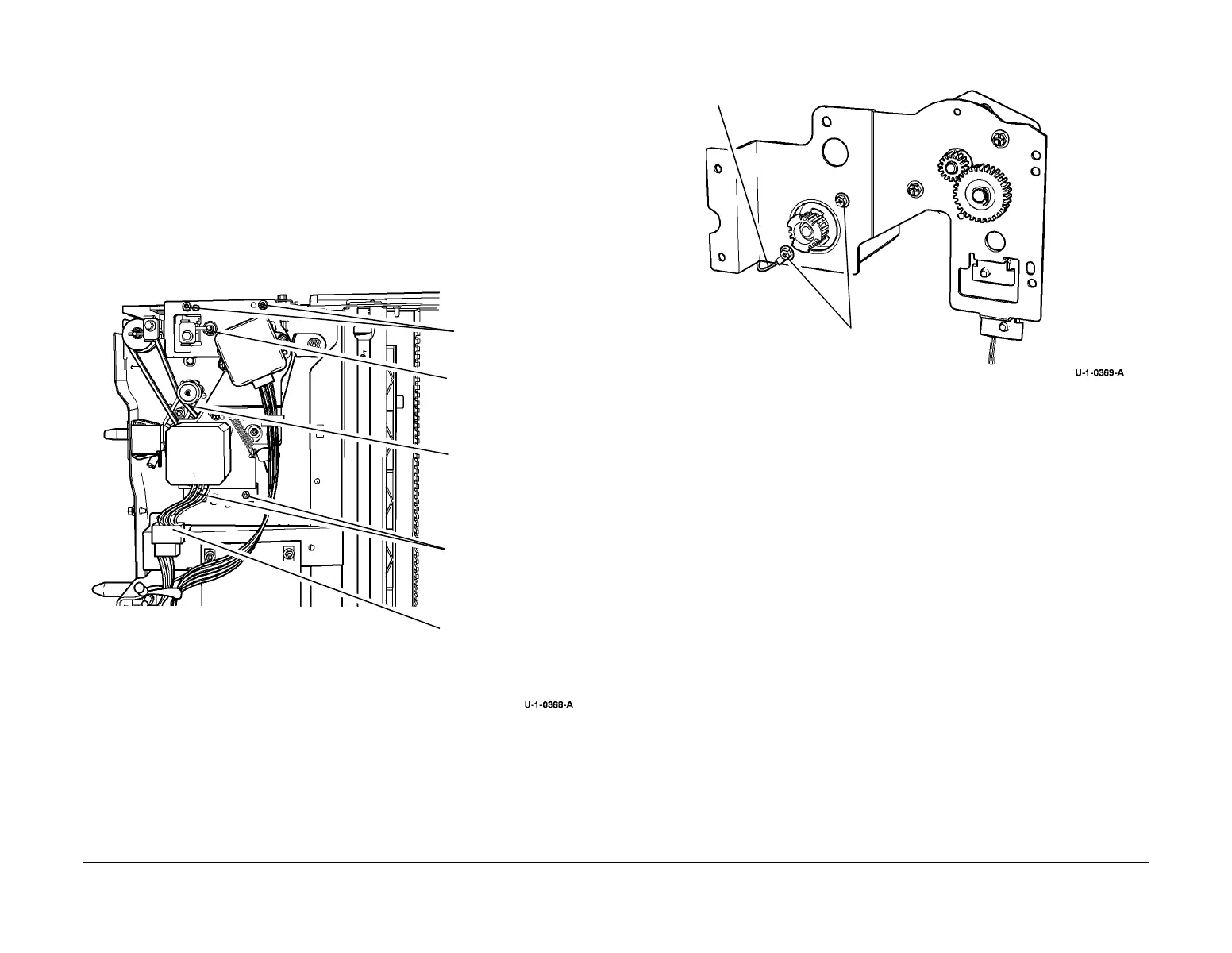

Figure 1 Remove the drives plate
3. Remove tray 5 transport motor, Figure 2.
Figure 2 Remove the transport motor
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure that the ground wire terminal is located under the motor securing screw, Figure 2.
1
Remove two screws
2
Remove E-clip
3
Loosen the screw to
release belt tensioner
4
Remove 2 screws
5
Disconnect both motor
harnesses
2
Remove the motor
1
Remove two screws
Ground wire
