Xerox ColorQube 9303 Series Service Manual

February 2013
4-56
ColorQube® 9303 Family
REP 5.18
Repairs/Adjustments
REP 5.18 Exit Roll Idler
Parts List on PL 5.30
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the baffle assembly lower cover, PL 5.30 Item 1.
2. Remove the baffle assembly, REP 5.5.
3. Prepare to remove the exit roll idlers, Figure 1.

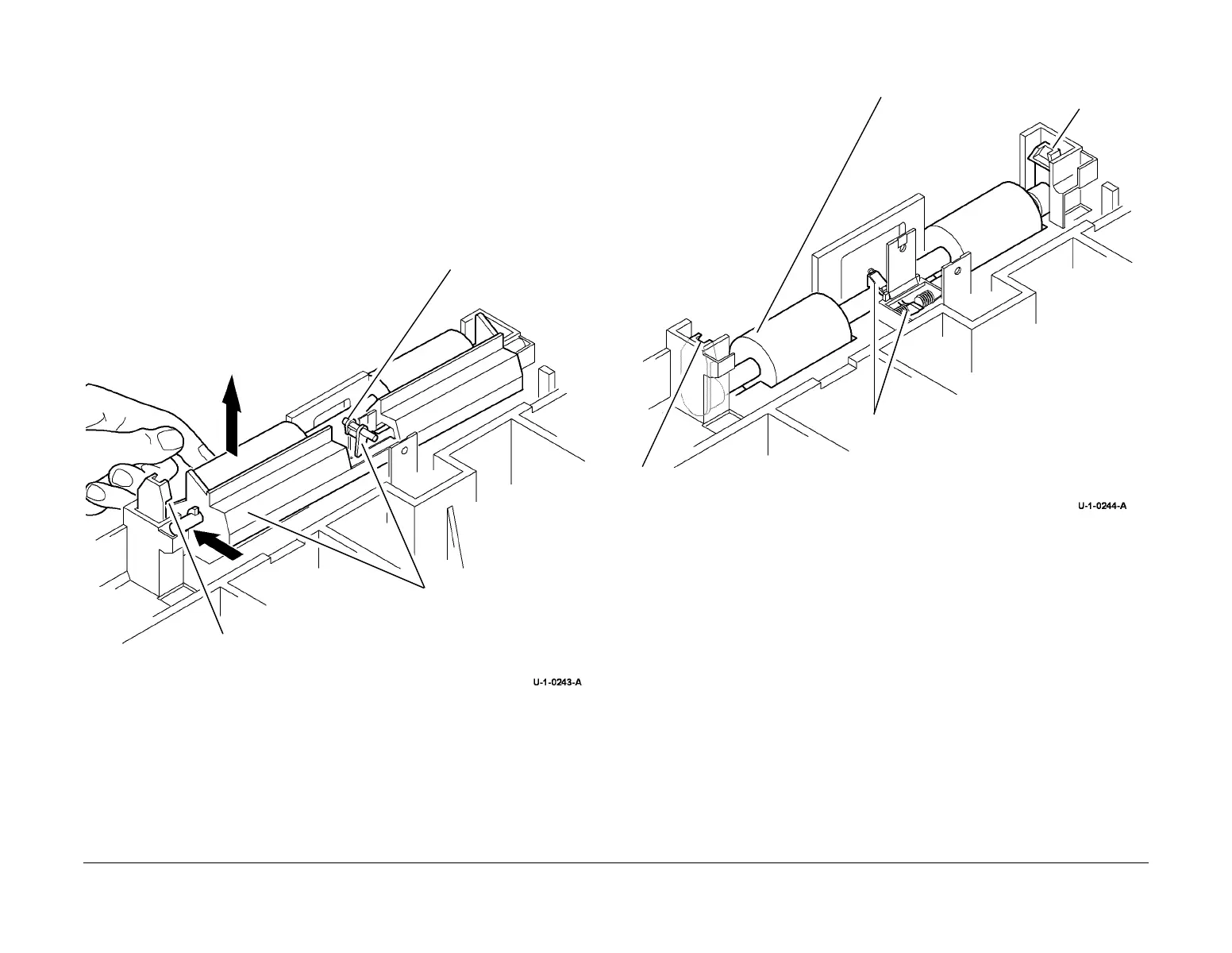

Figure 1 Preparation
4. Remove the exit roll idlers, Figure 2.
Figure 2 Exit roll idlers
1
Release the link arm.
2
Raise one end of the exit roll idler shaft, then release
the lift bar.
3
Remove the lift bar and
link arm.
1
Carefully remove the torsion spring
and the document finger.
2
Lift out the exit roll idlers.
3
Remove the 2 bearings.
Bearing
Bearing
