Xerox ColorQube 9303 Series Service Manual

February 2013
5-42
ColorQube® 9303 Family
PL 12.150
Parts Lists

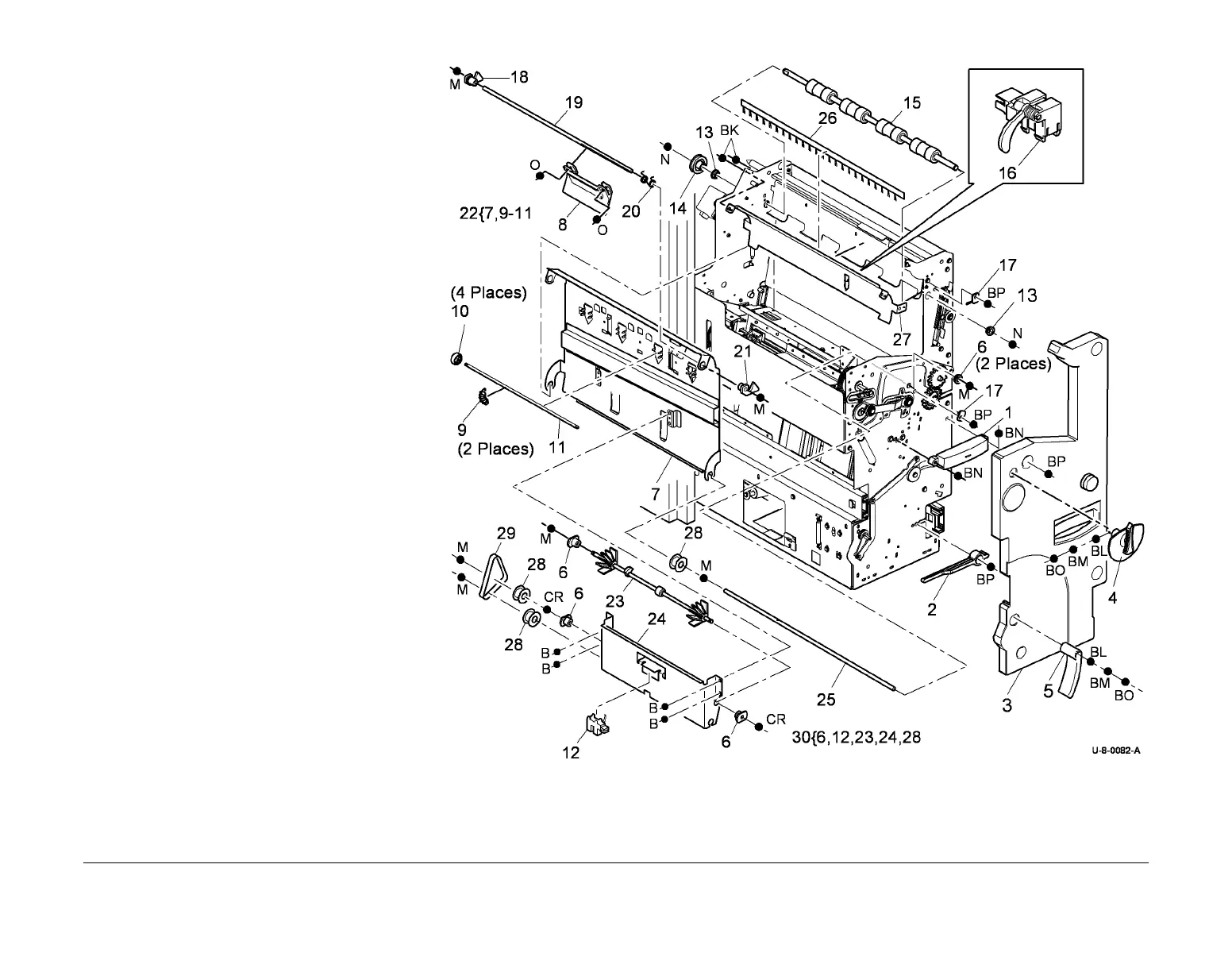

PL 12.150 HVF BM Entry and Front
Cover
Item Part Description
1 003E69092 Drawer handle
2 – Crease roll leaf spring (Not spared)
3 848E40470 BM Front cover
4 803E14110 Crease blade knob (6d)
5 803E13850 Crease roll handle (6c)
6 013E12610 Nylon bearing
7 – Paper guide (6e) (P/O PL 12.150
Item 22) (REP 12.60-171)
8 – Jam clearance handle (Not spared)
(REP 12.60-171)
9 – Nip spring (P/O PL 12.150 Item 22)
(REP 12.60-171)
10 022E30620 Nip roll (REP 12.60-171)
11 – Nip shaft (P/O PL 12.150 Item 22)
(REP 12.60-171)
12 130K74072 Flapper home sensor (Q12-207)
(REP 12.16-171)
13 – Bearing (Not spared)
14 020E39990 BM Entry roll pulley (REP 12.22-
171)
15 006K28660 BM Entry roll (REP 12.22-171)
16 130K74110 BM Entry sensor (Q12-089) (REP
12.23-171)
17 125E00430 Static eliminator
18 – Rear latch (Not spared)
19 – Shaft (Not spared)
20 809E46411 Latch spring
21 – Front latch (Not spared)
22 – Entrance baffle assembly (Not
spared) (REP 12.60-171)
23 – BM Flapper (P/O PL 12.150 Item
30) (REP 12.16-171)
24 – BM flapper bracket (P/O PL 12.150
Item 30)
25 – BM Compiler shaft (Not spared)
26 125K03831 Static eliminator
27 – Top baffle (Not spared)
28 – Pulley (Not spared)
29 – BM flapper drive belt (Not spared)
30 059K52940 BM Flapper assembly (REP 12.16-
171)
