February 2013
5-54
ColorQube® 9303 Family
PL 12.215
Parts Lists

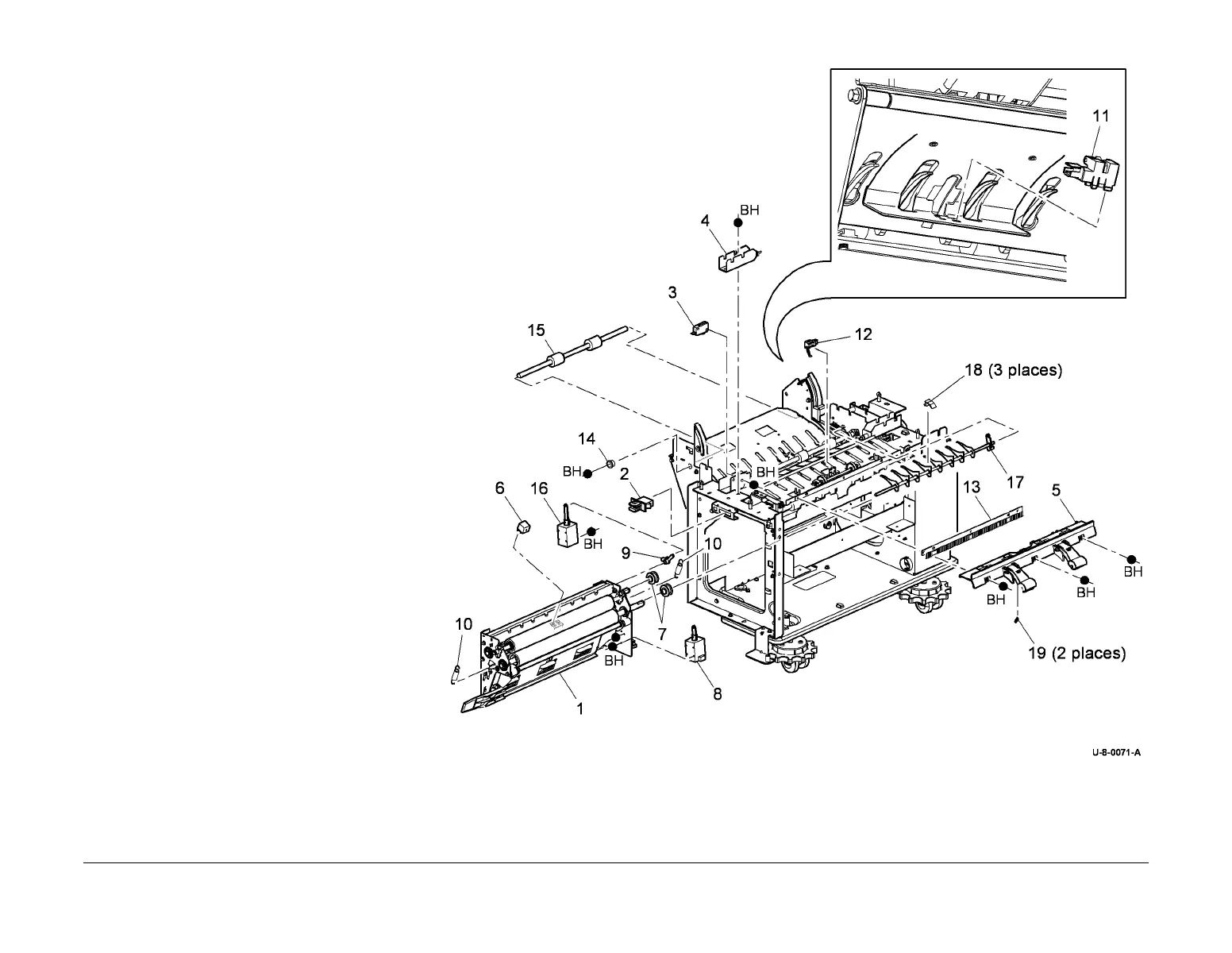

PL 12.215 Tri-Folder Main Drives
Assembly
Item Part Description
1 – Roller assembly (Not spared) (REP
12.74-171)
2 110E19840 Front door interlock switch (S12-
209) (REP 12.77-171)
3 110E19831 Top cover interlock switch (S 12-
210) (REP 12.77-171)
4 – Top access cover docking catch
(Not spared)
5 – Pressing and stacking assembly
(Not spared)
6 130E11861 Assist gate sensor (Q12-165) (REP
12.78-171)
7 020E38480 Centerfold pulley (REP 12.74-171)
8 121K44660 Assist gate solenoid (SOL12-268)
(REP 12.71-171)
9 011E13832 Centerfold entry gate lever (REP
12.74-171)
10 809E44040 Crease roll spring (REP 12.72-171)
11 130K74920 Tri folder entry sensor (Q12-164)
(REP 12.78-171)
12 130K74051 Tri folder exit sensor (Q12-166)
(REP 12.79-171)
13 – Static eliminator (Not spared)
14 – Feed roller bearing (Not spared)
15 – Feed roller (Not spared) (REP
12.70-171)
16 121K44650 Tri folder diverter solenoid (SOL12-
267) (REP 12.74-171)
17 050E23180 Diverter gate
18 050E28950 Diverter gate spring clip
19 809E95080 Nip spring
To Next Page
