February 2013
4-309
ColorQube® 9303 Family
REP 83.1
Repairs/Adjustments
REP 83.1 Horizontal Paper Path
Parts List on PL 82.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Open the front door and remove the inner cover, PL 81.11 Item 2.
2. Open the left hand upper door, PL 70.30.
3. Remove the horizontal paper path, Figure 1.

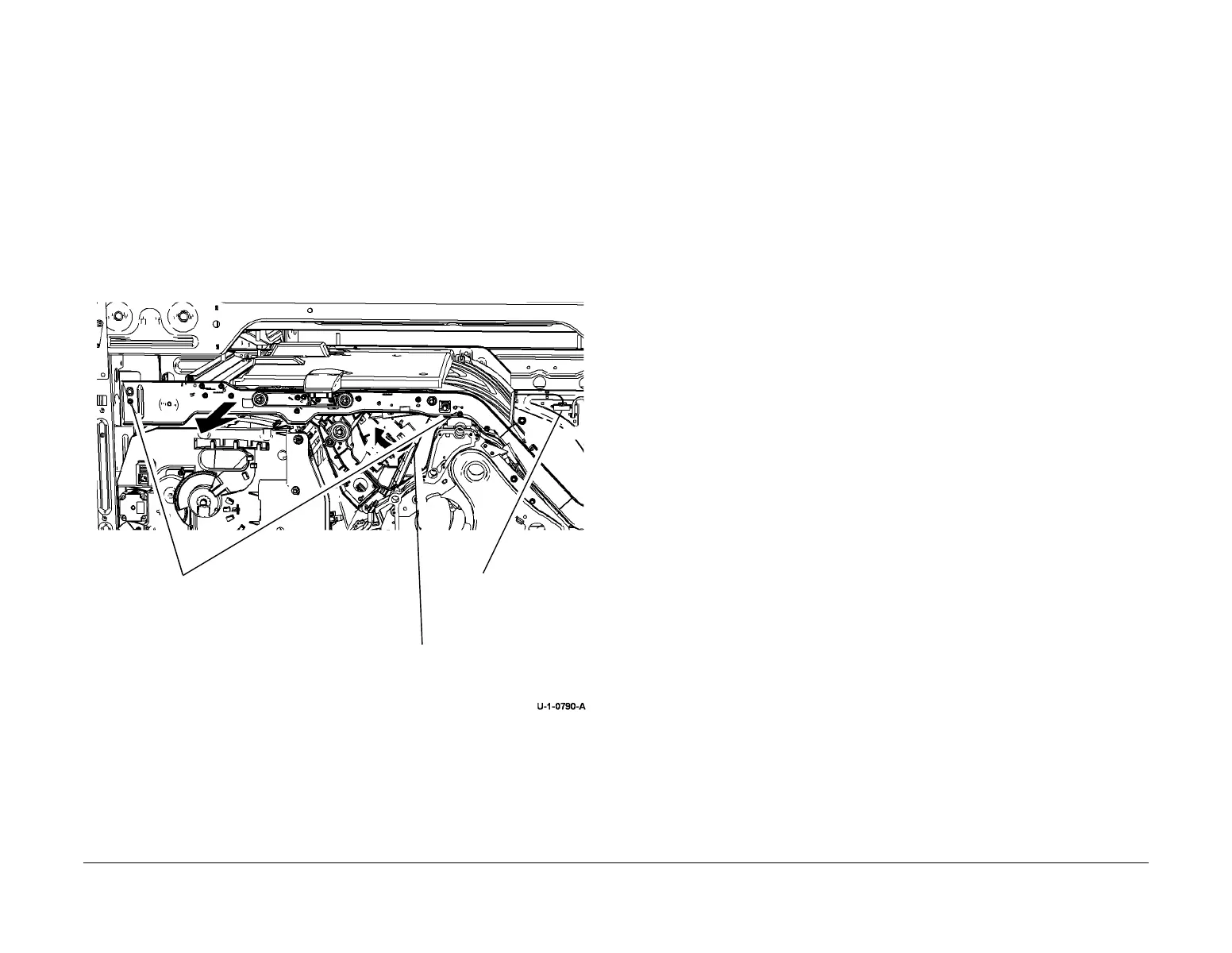

Figure 1 Remove the horizontal paper path
Replacement
1. Replacement is the reverse of the removal procedure.
2. Hold the heat shield up. Locate the rear left hand ‘V’ slots on the horizontal transport with
the guide on the top of the marking unit. Holding the unit level slide back in. Do not force
it, try to align the transport location holes with the location pins and it should fall into place.
3. Run the relevant diagnostic routines, refer to GP 37 Post Part Replacement Routines.
4
Lift slightly and pull out the hori-
zontal transport
3
Lift the heat shield and hold in
the up position
2
Remove the screws
1
Disconnect harness
on the rear frame
To Next Page
