February 2013
4-421
ColorQube® 9303 Family
ADJ 75.1
Repairs/Adjustments
ADJ 75.1 Tray 5 Paper Tray Guide Setting
Parts List on PL 75.64
Purpose
To adjust the paper tray guides in tray 5 for A4 / A3 or 8.5 x 11 / 11 x 17 inch paper.
Adjustment
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 14. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
1. Open tray 5 door and allow the tray to lower and remove the paper stack.
2. Adjust the paper guide to the required paper size, Figure 1.
• To set the paper tray guide to A4 / A3 paper size, move the paper guide to the outer
position.
• To set the paper tray guide to 8.5 x 11 / 11 x 17 inch paper size, move the paper
guide to the inner position.
3. Check the registration, refer to dC625 Registration / Preheat Calibration.

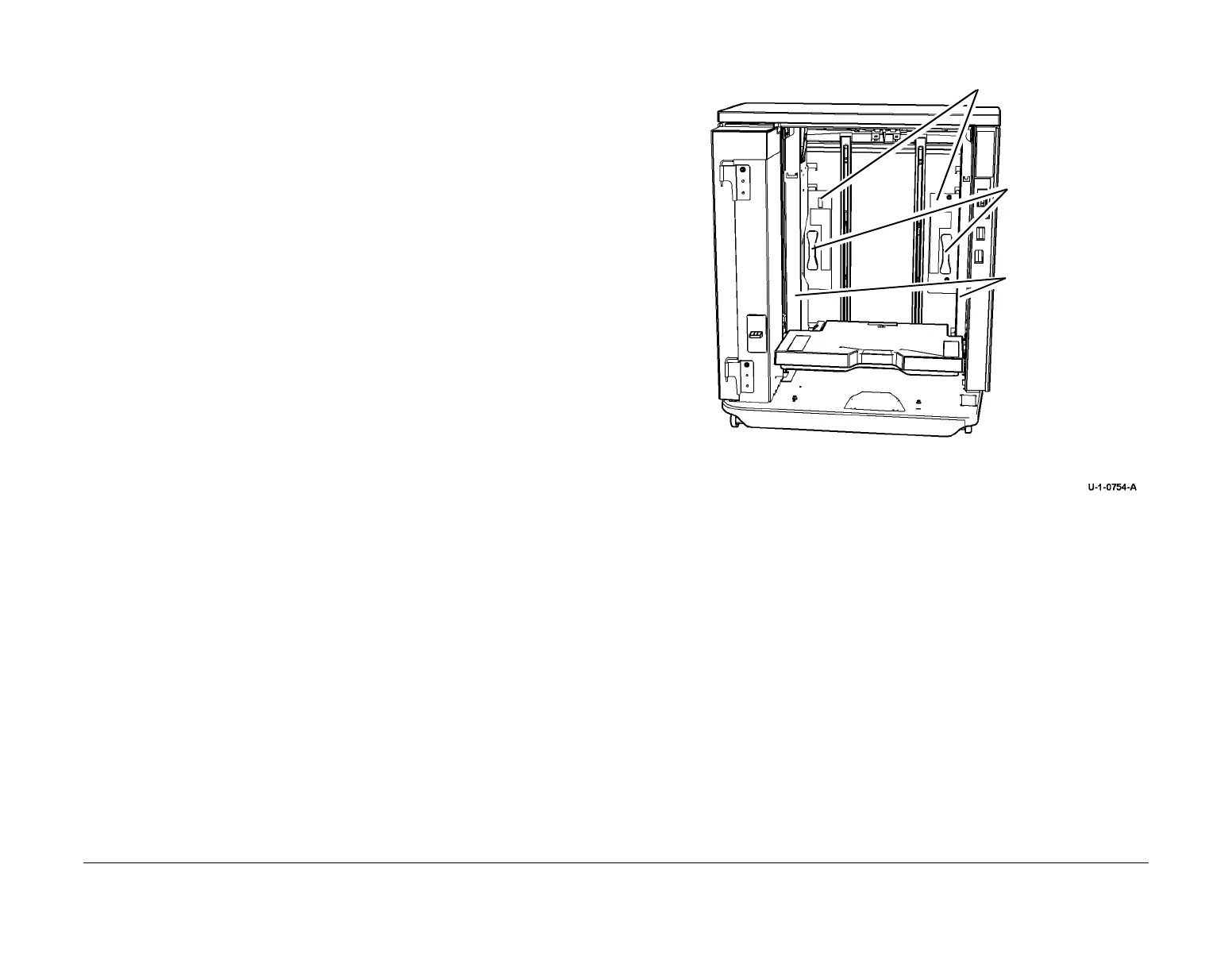

Figure 1 Paper guide adjustment
Paper size indicator window
1
Move the handle up to
release the lock on the
paper guide
2
Use the handle to move
the paper guide to the
required paper size
3
Move the handle down
to lock the paper guide
To Next Page
