February 2013
5-96
ColorQube® 9303 Family
PL 91.05
Parts Lists

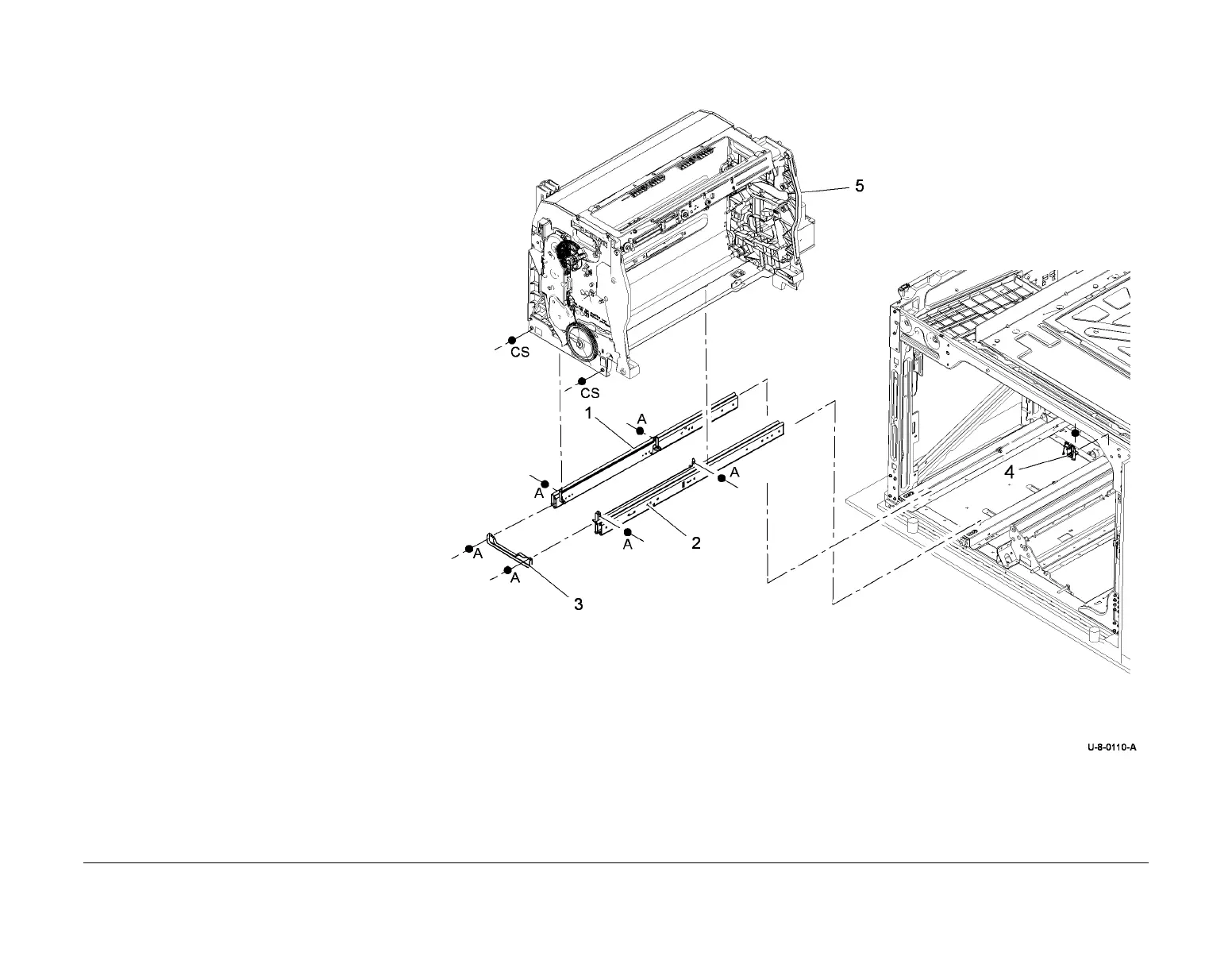

PL 91.05 Marking Unit Slide Assembly
Item Part Description
1 010K04820 Left hand slide assembly (REP
91.26)
2 010K04830 Right hand slide assembly (REP
91.26)
3 674E02850 Slide assembly cross brace (REP
91.26)
4 130E18210 Waste tray sensor (Q91-019)
5 – Marking unit assembly (Not spared)
(REP 91.26)
