Xerox ColorQube 9303 Series Service Manual

February 2013
5-48
ColorQube® 9303 Family
PL 12.180
Parts Lists

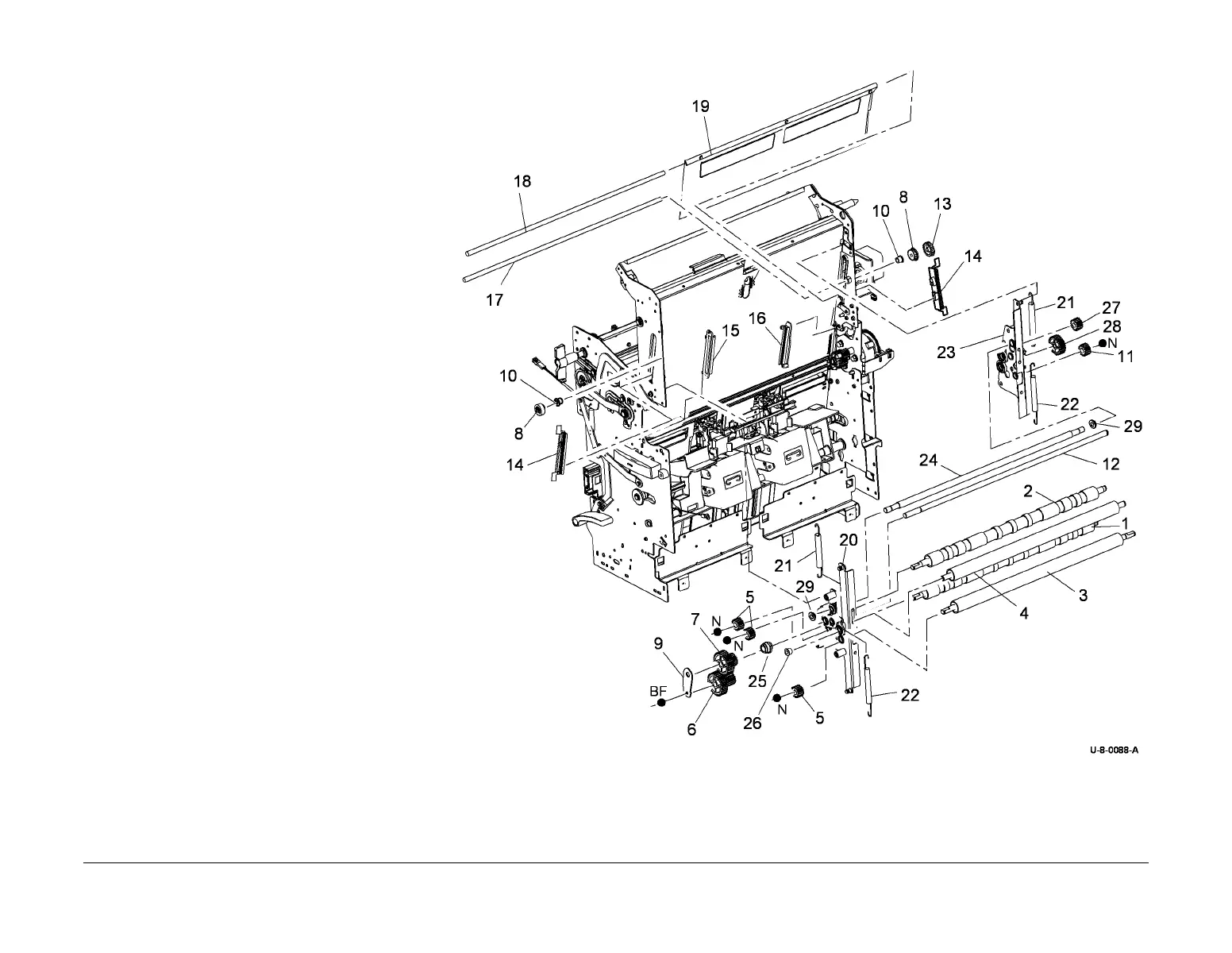

PL 12.180 HVF BM Crease Rolls and
Support Leg
Item Part Description
1 006K32721 Crease roll assembly 1 (REP
12.52-171)
2 006K32731 Crease roll assembly 2 (REP
12.52-171)
3 006K32740 Crease roll assembly 3 (REP
12.52-171)
4 006K32750 Crease roll assembly 4 (REP
12.52-171)
5 807E34231 Gear crease roll 4
6 807E34240 Lower compound gear
7 807E34280 Upper compound gear
8 007E69081 Crease roll gate rack gear (REP
12.59-171)
9 – Gear plate (Not spared)
10 – Bearing (Not spared)
11 807E34261 Gear (16T)
12 – Drive shaft (Not spared)
13 007E69070 Crease roll gate rack drive gear
(REP 12.59-171)
14 007E68951 Crease roll gate rack (REP 12.59-
171)
15 020E54110 Crease roll gate front guide
16 020E54120 Crease roll gate rear guide
17 – Crease roll drive shaft (Not spared)
18 – Crease roll gate shaft (Not spared)
19 050E23160 Crease roll gate (REP 12.59-171)
20 – Front frame assembly (Not spared)
21 809E95060 Spring arm nip 1
22 809E95071 Spring arm nip 2
23 – Rear frame assembly (Not spared)
24 – Nip release shaft (Not spared)
25 016E20010 Bush roll release
26 413W88650 Bearing flanged
27 807E34251 Gear (15T)
28 807E34270 Gear (30T)
29 016E20000 Bush follower
