February 2013
4-96
ColorQube® 9303 Family
REP 10.22, REP 10.23
Repairs/Adjustments
6. Remove the upper baffle, Figure 2.

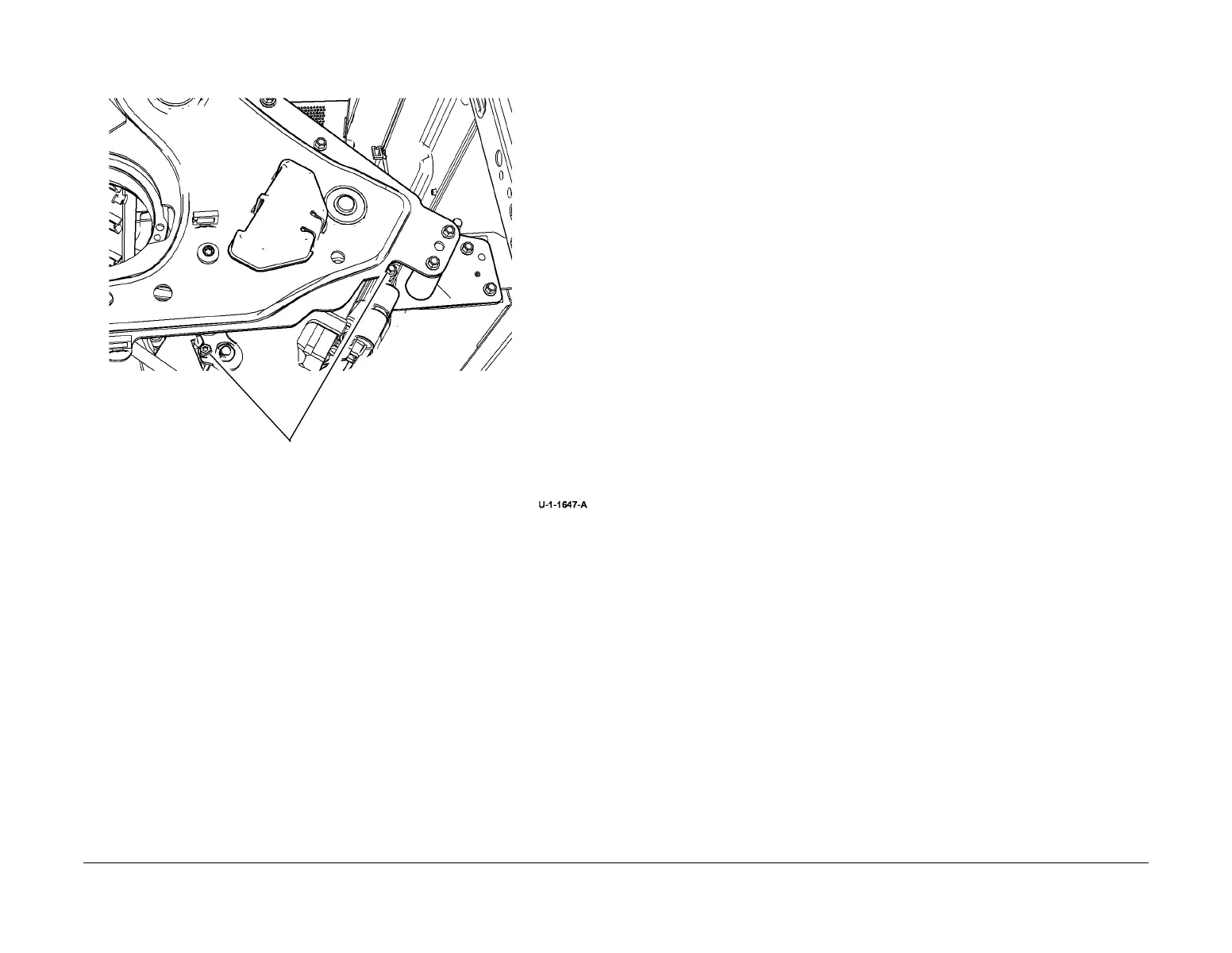

Figure 2 Remove upper baffle
Replacement
1. Replacement is the reverse of the removal procedure.
2. If the upper baffle is cleaned, or a new upper baffle is installed, reset the upper JL baffle
count to zero. Refer to dC135 CRU / HFSI Status.
REP 10.23 Stripper Guide Latch Cam Shaft
Parts List on PL 10.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. The stripper blade is very sharp and can cause injury.
1. Open the front door.
2. Remove the inner cover, PL 81.11 Item 2.
3. Unlock and fully open the stripper gate, GP 31.
4. Remove the exit paper path, REP 10.20.
5. Remove the M4 motor and gearbox, REP 10.8.
1
Remove 2 screws then
remove the baffle.
To Next Page
