February 2013
5-83
ColorQube® 9303 Family
PL 81.10
Parts Lists

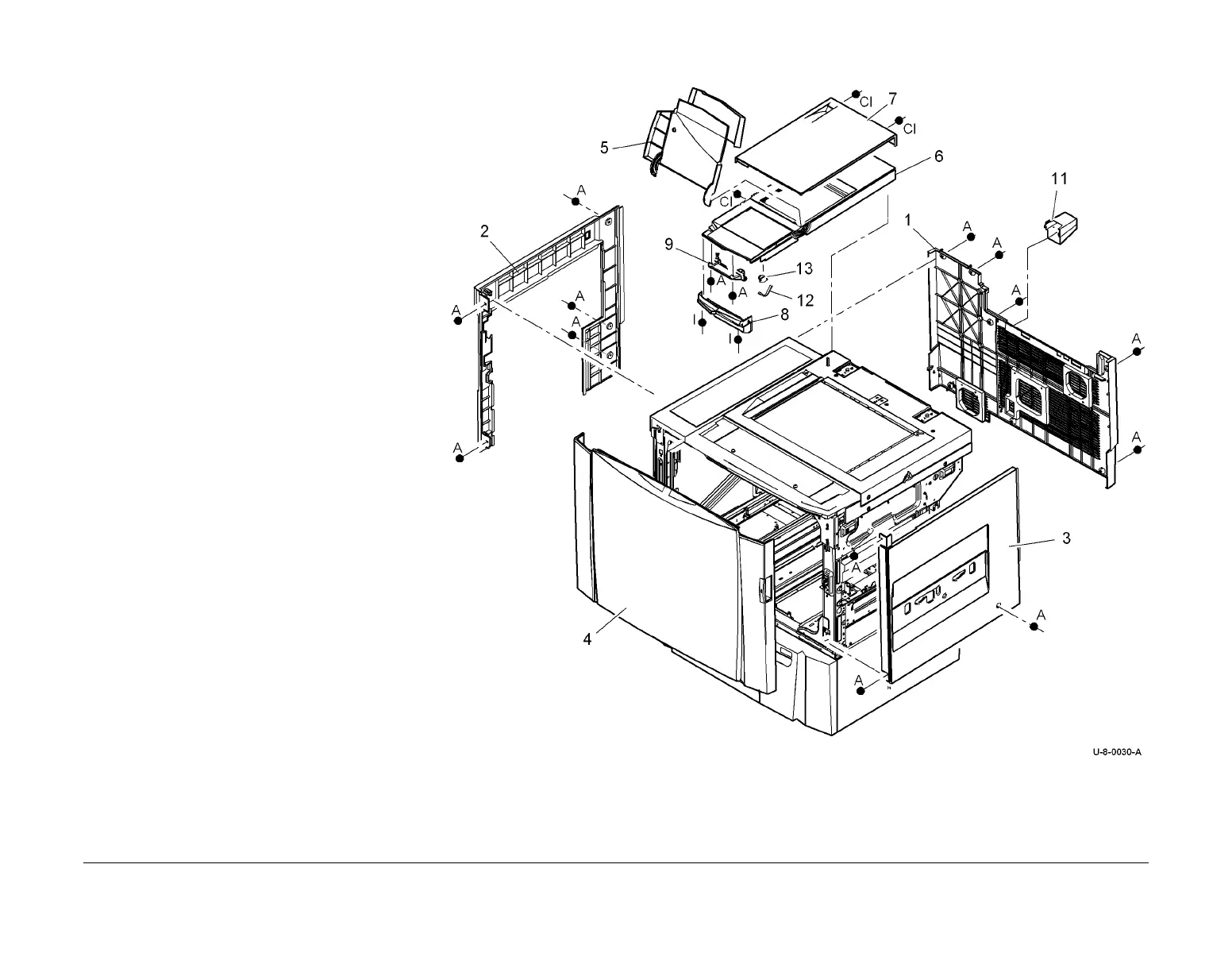

PL 81.10 Main Covers
Item Part Description
1 848K66280 Rear cover
2 848E15831 Left cover
3 848E45840 Right cover
4 – Front door assembly (REF: PL
81.11 Item 11)
5 848K31762 Ink loader access cover
6 848E45881 Ink loader top
7 848E45890 Ink loader access cover rear
8 848E45950 Ink loader backup cover
9 848E45961 Ink loader bracket
10 – Not used
11 014E68060 Rear standoff (duct)
12 019E81431 Ink loader rotary damper clip
13 016E20080 Ink loader rotary damper
