February 2013
4-138
ColorQube® 9303 Family
REP 12.14-171
Repairs/Adjustments
REP 12.14-171 HVF Upper Exit Guide (5c)
Parts List on PL 12.125.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the HVF front door, REP 12.1-171.
2. Remove the HVF top cover, REP 12.1-171.
3. Remove the HVF front cover, REP 12.1-171.
4. Remove the HVF rear cover, REP 12.1-171.

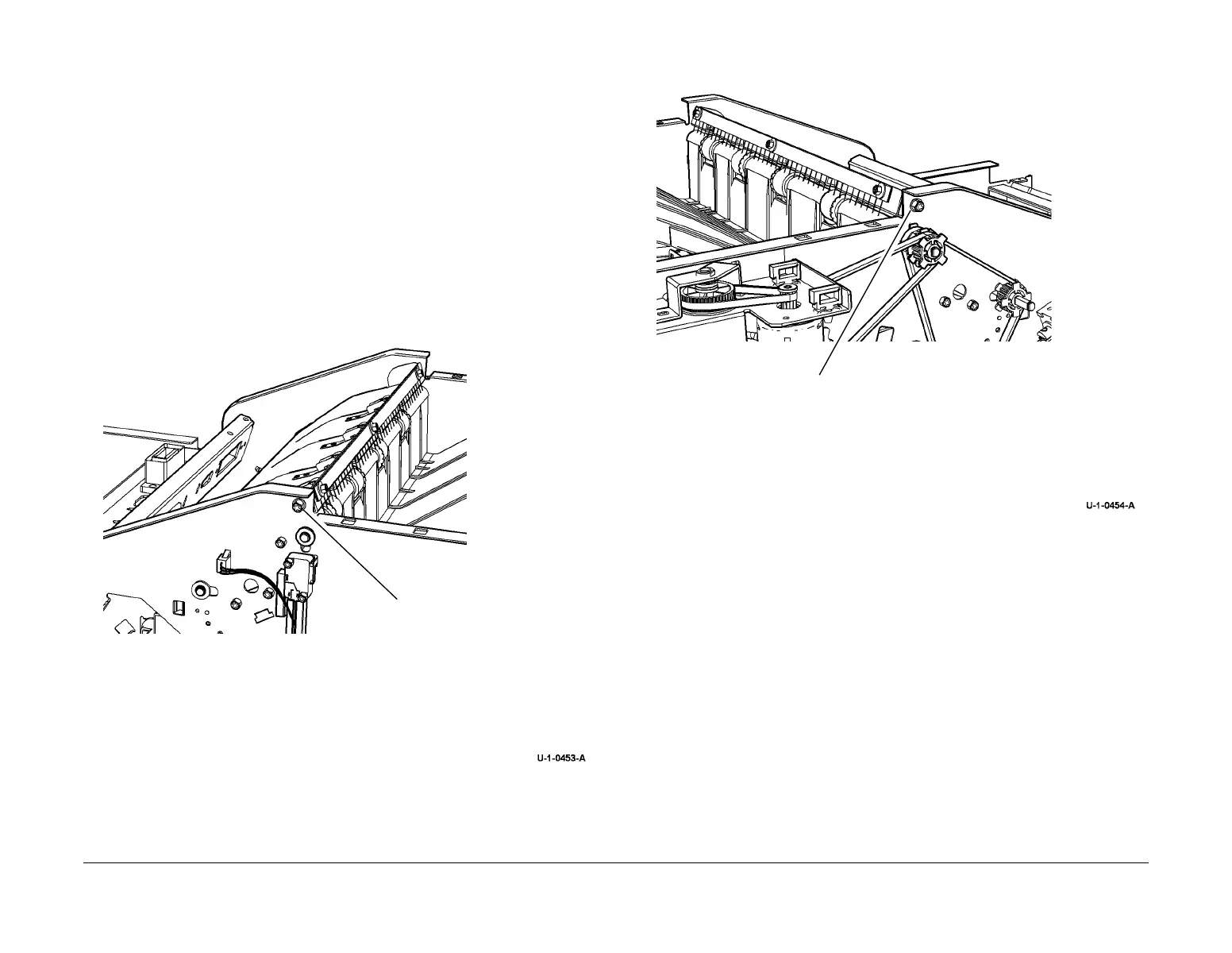

5. Figure 1. Remove the outboard pivot screw.
Figure 1 Outboard pivot screw.
6. Figure 2. Remove the inboard pivot screw.
Figure 2 Inboard pivot screw.
1
Remove the outboard
pivot screw.
FRONT VIEW
1
Remove the inboard
pivot screw.
REAR VIEW
To Next Page
