ColorQube® 9303 Family
REP 5.15, REP 5.16
Repairs/Adjustments
Replacement
1. The replacement is the reverse of the removal procedure. Make sure the white washer is
installed correctly, Figure 4.
2. Perform the DADH CVT motor adjustment, refer to ADJ 5.1.

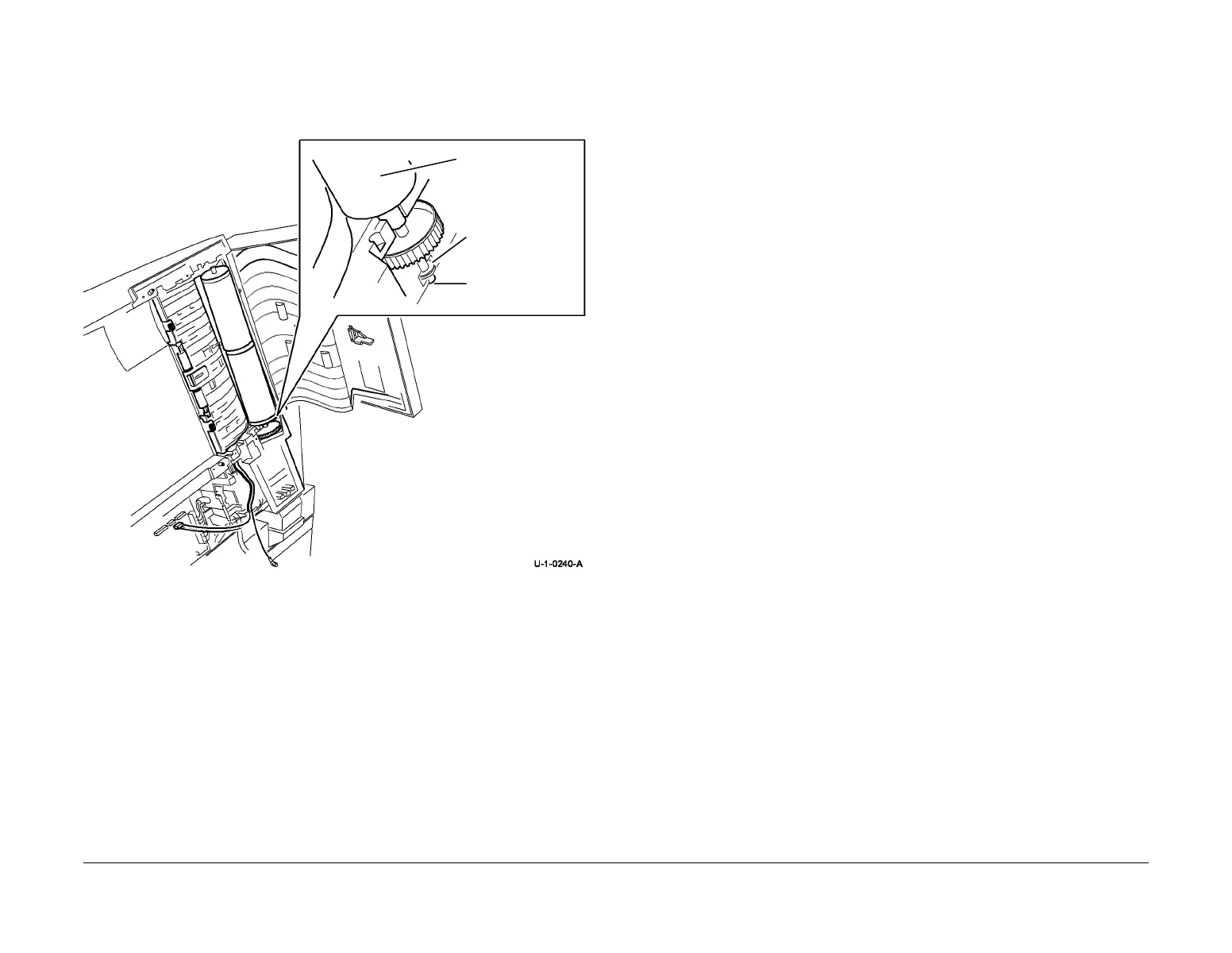

Figure 4 Replacement
REP 5.16 Document Width Sensor
Parts List on PL 5.35
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the feed assembly, REP 5.3.
2. Remove the input tray assembly, REP 5.4.
CAUTION
Disconnect the ground harness from the static eliminator before the input tray assembly lower
cover is removed, refer to Figure 1.
3. Turn the input tray assembly upside down, then remove the Lower cover right, PL 5.35
Item 9 and Lower cover left, PL 5.35 Item 20
CVT roll.
White washer.
