Xerox ColorQube 9303 Series Service Manual

February 2013
5-45
ColorQube® 9303 Family
PL 12.165
Parts Lists

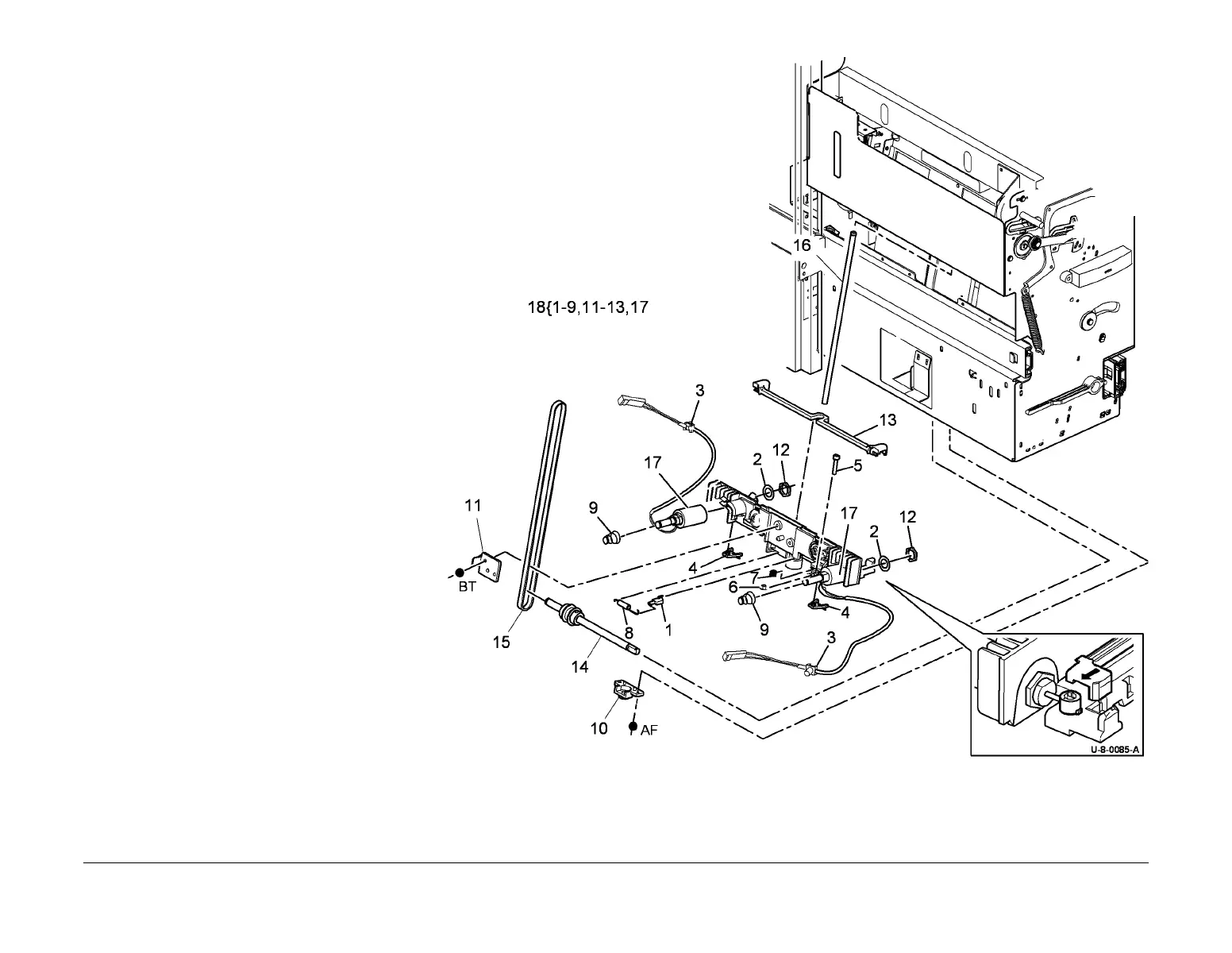

PL 12.165 HVF BM Back Stop
assembly
Item Part Description
1 019E74451 Anti-play shoe
2 – BM back stop lock washer (P/O PL
12.165 Item 18)
3 – Cable fastener (P/O PL 12.165 Item
18)
4 031E11300 Anti-rattle arm
5 – Screw (P/O PL 12.165 Item 18)
6 – Flanged hex nut (P/O PL 12.165
Item 18)
7 – Back stop adjust spring (P/O PL
12.165 Item 18)
8 809E71970 Antiplay spring
9 – Solenoid spring (P/O PL 12.165
Item 18)
10 – Shaft support (Not spared)
11 – Belt clamp (P/O PL 12.165 Item 18)
12 – BM back stop solenoid nut (P/O PL
12.165 Item 18)
13 – Pivoting clamp (P/O PL 12.165 Item
18)
14 006K30790 BM back stop drive shaft (REP
12.26-171)
15 023E23140 BM back stop belt (REP 12.26-171)
16 – BM back stop shaft (Not spared)
17 – BM stack hold solenoid (SOL12-
259) (P/O PL 12.165 Item 18)
18 019K14160 BM back stop assembly (REP
12.21-171)
