Xerox ColorQube 9303 Series Service Manual

February 2013
5-94
ColorQube® 9303 Family
PL 88.10
Parts Lists
PL 88.10 Registration/Preheat

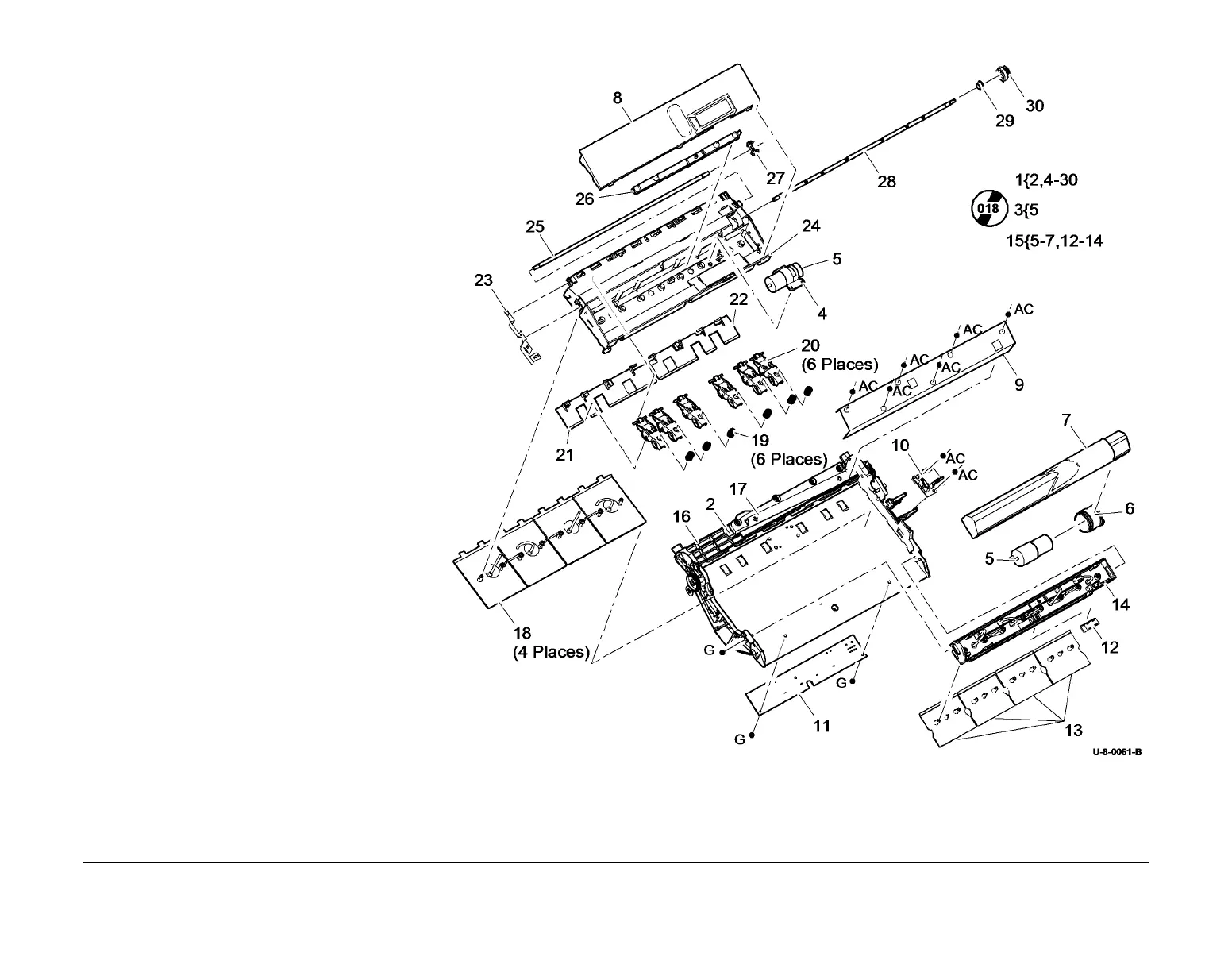

Assembly (1 of 2)
Item Part Description
1 801K37710 Registration/Preheat assembly
(complete) (REP 89.1)
2 – Registration scan bar (Q89-005)
(Not spared)
3 604K54870 Registration/Preheat pump kit (REP
89.2) (W/O TAG 018)
4 – Rubber mounting (Not spared)
5 – Registration/Preheat air pump
(MOT 88-008) (P/O PL 31.11 Item
7) (REP 89.2)
6 – Rubber mounting (Not spared)
7 – Lower platelet assembly cover (Not
spared)
8 – Pump cover (Not spared)
9 – Sensor cover (Not spared)
10 – Registration/Preheat interface PWB
(Not spared)
11 – Thermal cutout PWB (Not spared)
12 130E12950 Pre transfix sensor (20) (Q89-006)
(REP 10.7)
13 – Lower heat plate (Not spared)
14 – Lower platelet base assembly (Not
spared)
15 – Lower platelet assembly (Not
spared) (REP 89.1)
16 – Frame and jam clearance assembly
(Not spared)
17 – Registration scan bar cover (Not
spared)
18 – Upper heat plate (Not spared)
19 – Idler assembly spring (Not spared)
20 – Idler assembly (Not spared)
21 – Front inverter (Not spared)
22 – Rear inverter (Not spared)
23 – Grounding plate (Not spared)
24 – Upper housing (Not spared)
25 – Shaft (Not spared)
26 – Suction plate (Not spared)
27 – Gear (Not spared)
28 – Shaft (Not spared)
29 – Bearing (Not spared)
30 – Gear (Not spared)
