Xerox ColorQube 9303 Series Service Manual

February 2013
5-90
ColorQube® 9303 Family
PL 81.45
Parts Lists

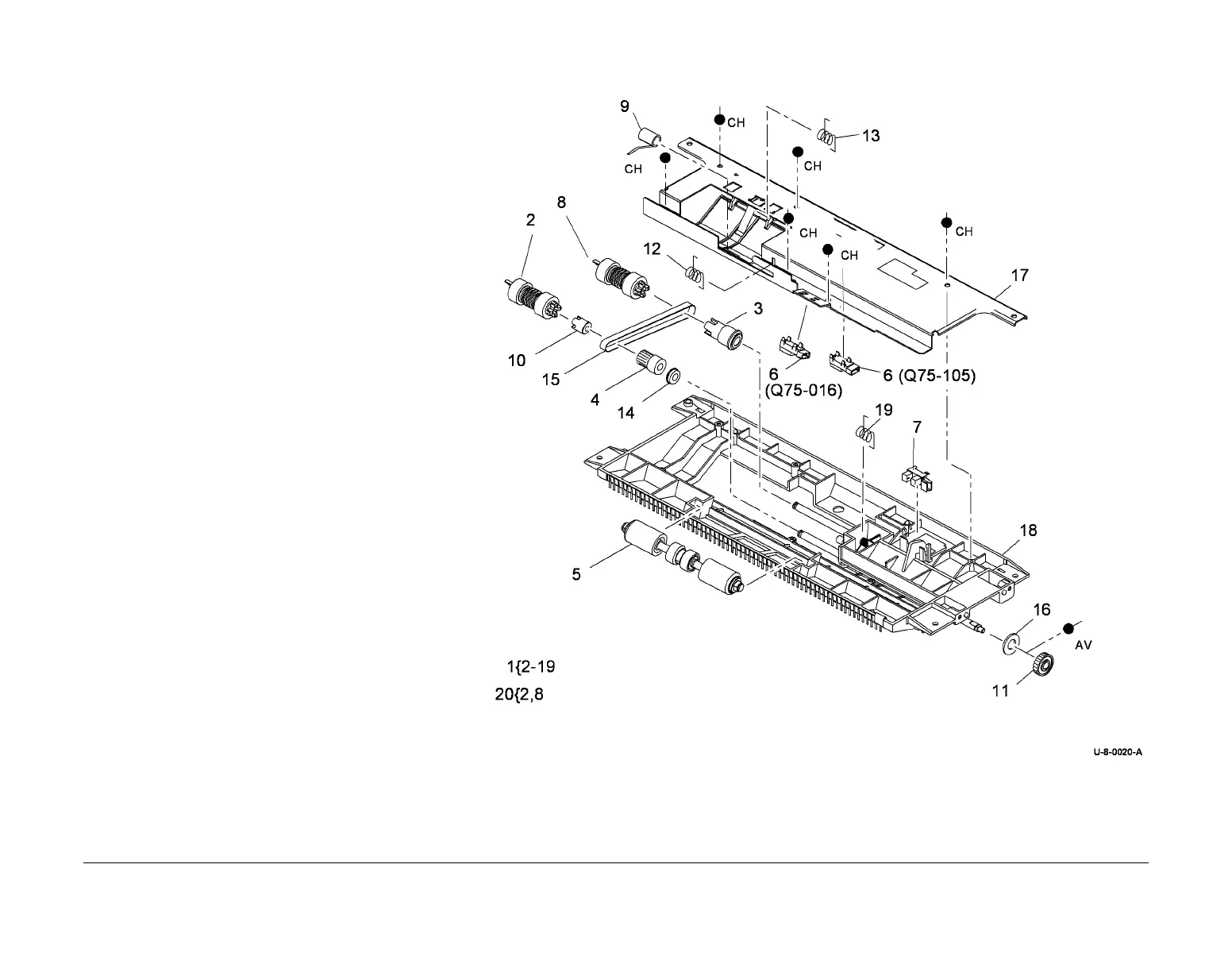

PL 81.45 Tray 5 Feed Assembly (2 of
3)
Item Part Description
1 059K69991 Upper feeder assembly (REP 82.7)
2 – Feed roller (REP 81.7) (P/O PL
81.45 Item 20) (See NOTE)
3 – Nudger pulley (P/O PL 81.45 Item
1)
4 – One way coupling (P/O PL 81.45
Item 1)
5 – Take away idler roller (P/O PL
81.45 Item 1)
6 130E11610 Tray 5 empty sensor (Q75-
016)(REP 75.1)/Feed sensor (Q75-
105)(REP 81.11)
7 130E12060 Stack height sensor (Q75-011)
(REP 75.2)
8 – Nudger roller (P/O PL 81.45 Item
20) (REP 81.7)
9 – Torsion spring (P/O PL 81.45 Item
1)
10 – Clutch (P/O PL 81.45 Item 1)
11 – Gear (29T) (P/O PL 81.45 Item 1)
12 – Housing spring (P/O PL 81.45 Item
1)
13 – Torsion chute spring (P/O PL 81.45
Item 1)
14 – Bearing (P/O PL 81.45 Item 1)
15 – Roller belt (P/O PL 81.45 Item 1)
16 – Washer (P/O PL 81.45 Item 1)
17 – Upper feed assembly top cover (P/
O PL 81.45 Item 1)
18 – Upper feed assembly base (P/O PL
81.45 Item 1)
19 – Torsion nudger spring (P/O PL
81.45 Item 1)
20 – Feed roll kit (Pack of 3) (REF: PL
31.11 Item 26) (REP 81.7)
NOTE: To reset the HFSI count, go to dC135.
