February 2013
4-342
ColorQube® 9303 Family
REP 91.14, REP 91.15
Repairs/Adjustments
Replacement
1. Replacement is the reverse of the removal procedure.
2. Ensure all ground lead connections are firmly remade.
3. When installing a new carriage, ensure the shipping restraint clips are removed before
installation, Figure 5.

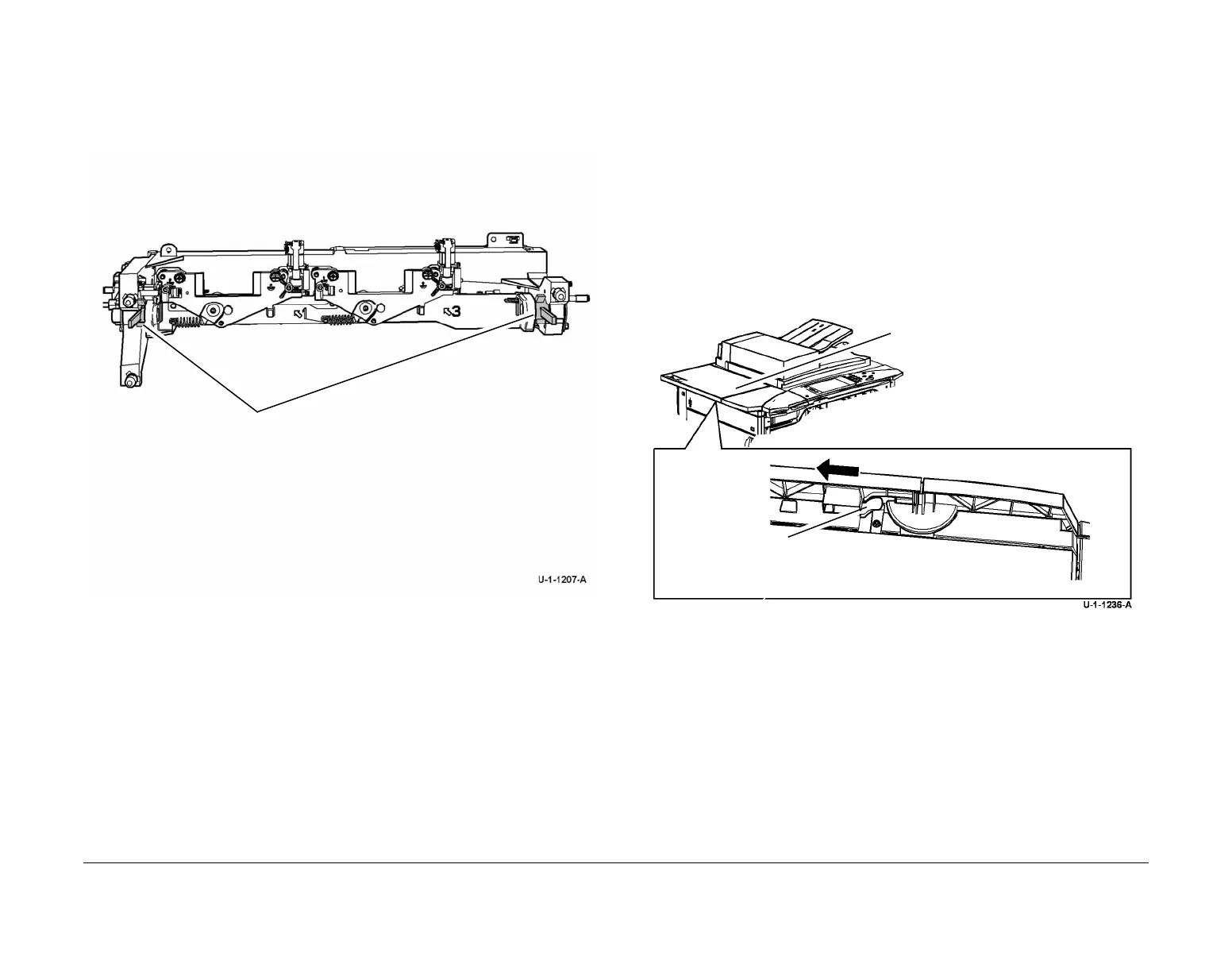

Figure 5 Shipping restraint clips
4. Ensure the harnesses are routed correctly, refer to GP 28.
5. Run the relevant diagnostic routines, refer to GP 37 Post Part Replacement Routines.
6. Ensure that both carriages are parked and the wiper is in the home position, all the way
up or down.
REP 91.15 Ink Loader Assembly
Parts List on PL 93.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Open the front door.
2. Remove the rear cover, PL 81.10 Item 1.
3. Remove the ink loader access cover rear, PL 81.10 Item 7. The cover is secured by a clip
on the left side, Figure 1.
Figure 1 Release the access cover
1
Remove both shipping
restraint clips.
Ink loader access
cover rear.
1
Release the clip then remove the
cover towards the rear.
To Next Page
