Xerox ColorQube 9303 Series Service Manual

February 2013
5-15
ColorQube® 9303 Family
PL 10.15
Parts Lists

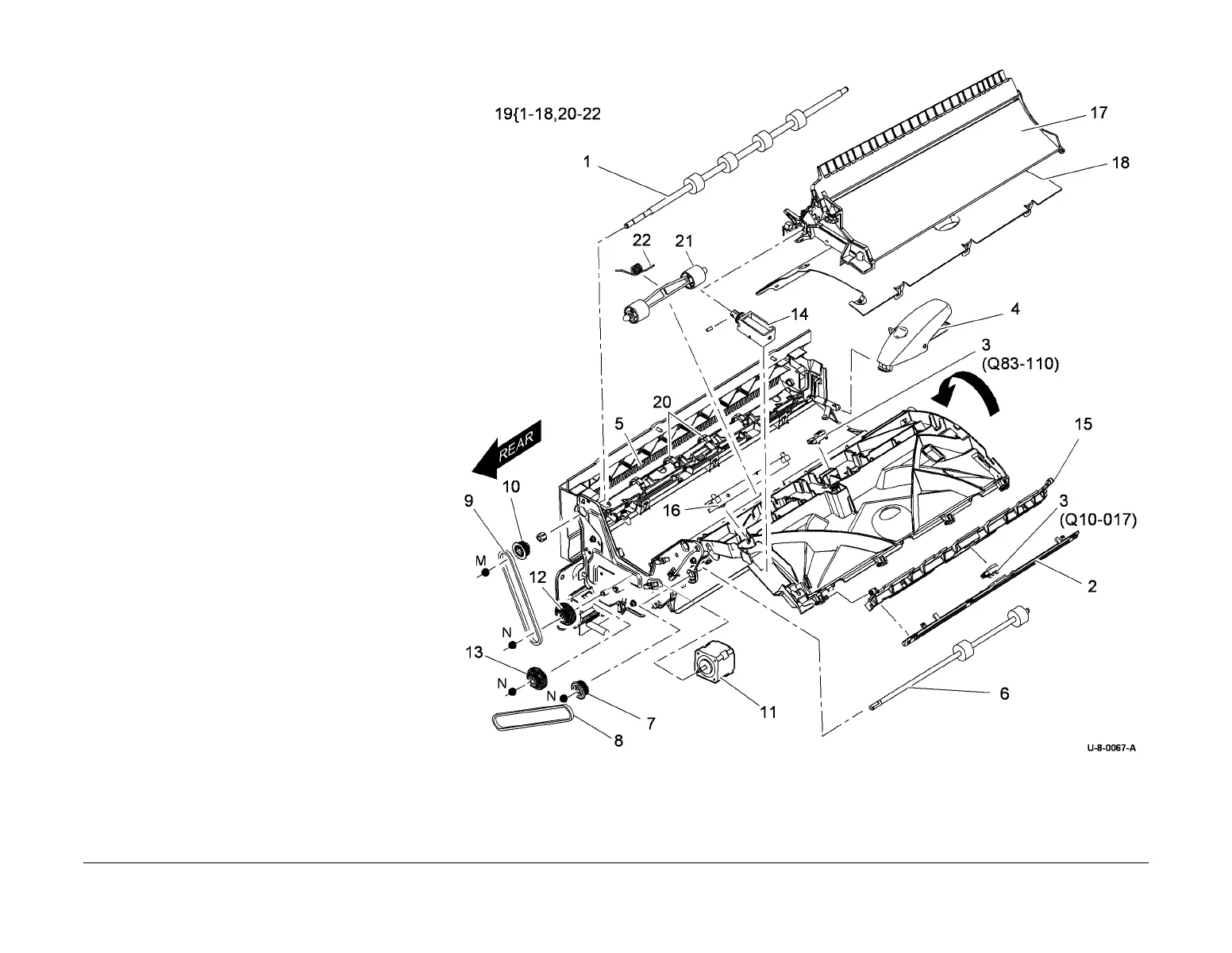

PL 10.15 Exit Paper Path
Item Part Description
1 059E10720 Roller nip 'N' (REP 10.18)
2 – Sensor cover (Not spared)
3 130E12950 Exit sensor (15)(Q10-017)(REP
10.16)/Duplex start sensor
(13)(Q83-110)(REP 10.15)
4 – Handle (Not spared)
5 – Static brush (P/O PL 10.15 Item 19)
6 059E10730 Roller nip 'P' (REP 10.17)
7 020K20480 Pulley 3mm (driven)
8 023E31390 Belt 3mm (112T)
9 023E31400 Belt 3mm (92T)
10 020K20460 Pulley 3mm (21T one way)
11 127E16370 Exit Motor (M5) (MOT83-001) (REP
10.14)
12 807E28980 Driven compound gear
13 807E28990 Idler compound gear
14 121E26500 Exit/duplex solenoid (SOL83-006)
(REP 10.12)
15 – Upper exit guide (P/O PL 10.15
Item 19)
16 – Exit illuminator PWB (P/O PL 10.15
Item 19) (REP 10.19)
17 – Diverter gate assembly (P/O PL
10.15 Item 19) (REP 10.13)
18 – Top exit baffle (P/O PL 10.15 Item
19)
19 038K23770 Exit paper path assembly (REP
10.20)
20 – Upper exit idler (P/O PL 10.15 Item
19)
21 – Upper baffle idler (P/O PL 10.15
Item 19)
22 – Upper baffle idler spring (P/O PL
10.15 Item 19)
