ColorQube® 9303 Family
PL 12.25
Parts Lists

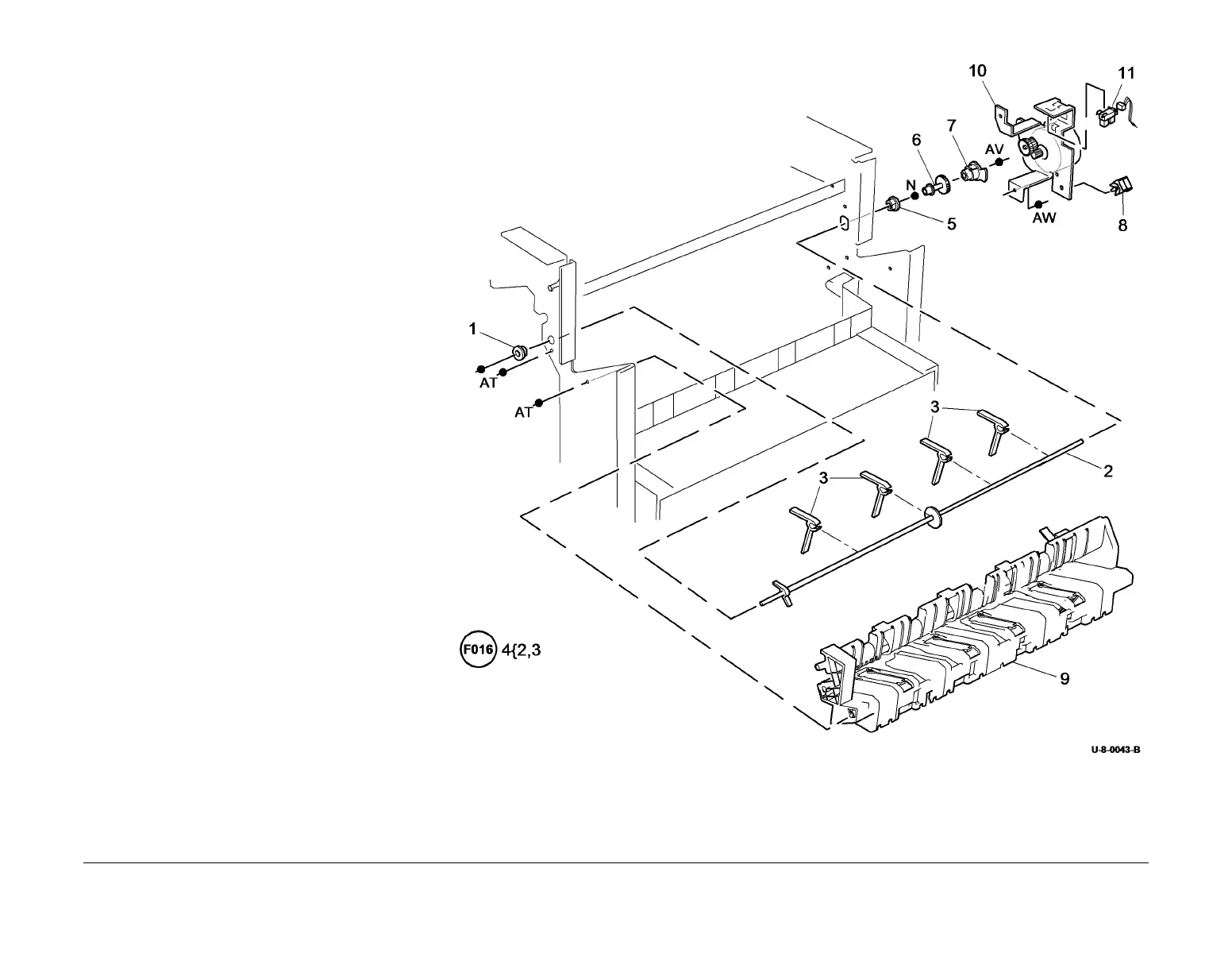

PL 12.25 LCSS Paddle Wheel
Item Part Description
1 – Bushing (Not spared)
2 – Shaft (P/O PL 12.25 Item 4)
3 – Paddle wheel (4 off) (REF: PL
31.10 Item 4) (REP 12.18-110)
4 – Paddle wheel shaft assembly(W/
TAG F-016) (REF: PL 31.11 Item
6)(REP 12.12-110)
5 013E25790 Nylon bearing
6 – Gear (Not spared)
7 – Flag (Not spared)
8 – Cable clamp (Not spared)
9 – Output cover (REF: PL 12.10 Item
7)
10 127K62580 Paddle roll motor assembly
(MOT12-238)
11 130E10360 Paddle roll home sensor (Q12-186)
To Next Page
