Xerox ColorQube 9303 Series Service Manual

February 2013
5-34
ColorQube® 9303 Family
PL 12.110
Parts Lists

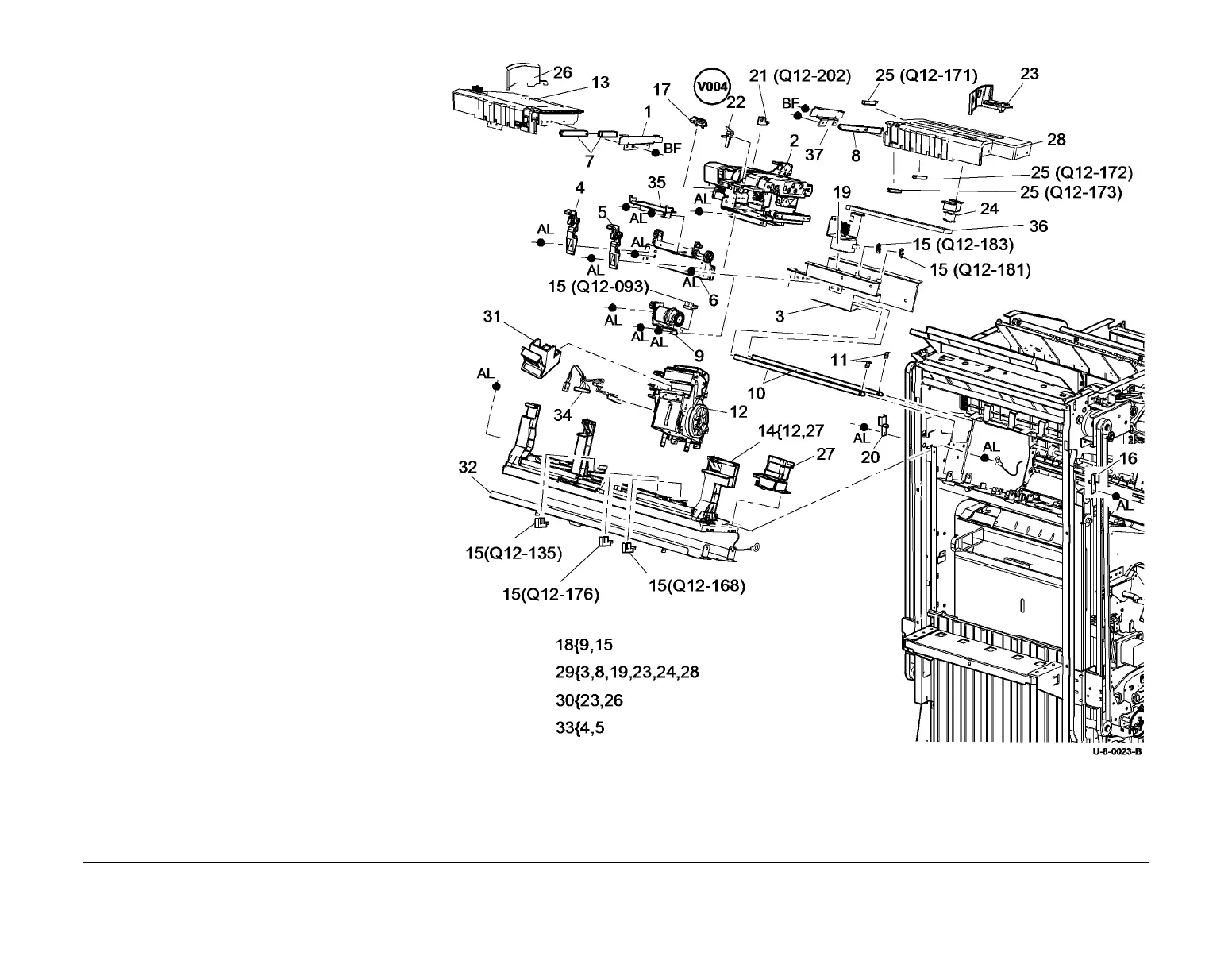

PL 12.110 HVF Ejector, Pressing and
Support (1 of 2)
Item Part Description
1 – Front tamper bracket (Not spared)
2 059K69943 Ejector assembly (REP 12.6-171)
3 – Rear tamper support bracket (P/O
PL 12.110 Item 29)
4 – Front pressing plate finger (P/O PL
12.110 Item 33) (REP 12.7-171)
5 – Rear pressing plate finger (P/O PL
12.110 Item 33) (REP 12.7-171)
6 049K23160 Pressing plate bracket
7 003K20652 Front support finger (REP 12.8-
171)
8 003K20662 Rear support finger (REP 12.8-171)
9 – Pressing and support motor
(MOT12-323) (Not spared)
10 – Offset rod (Not spared)
11 019K13380 Offset rod KL clip
12 – Stapler unit (P/O PL 12.110 Item
14) (REP 12.2-171)
13 – Front tamper (Not spared) (REP
12.11-171)
14 029K04671 Stapler assembly (REP 12.2-171)
15 130E12830 Pressing and support encoder
sensor (Q12-093)/Stapler unit
home sensor (Q12-135)/Stapler
unit mid home sensor (Q12-176)/
Stapler unit index sensor (Q12-
168)/Rear tamper away sensor
(Q12-183)/Rear tamper home
sensor (Q12-181)
16 130K75470 Bin 1 upper level sensor (receiver)
(Q12-188) (REP 12.76-171)
17 130K75900 Paper pressing sensor (Q12-322)
18 127K56550 Motor encoder assembly
19 – Rear tamper motor (MOT12-227)
(P/O PL 12.110 Item 29) (REP
12.15-171)
20 130K75480 Bin 1 upper level sensor
(transmitter) (Q12-188) (REP
12.76-171)
21 – Ejector paper present sensor (Q12-
202) (P/O PL 12.110 Item 2)
22 033K04850 Ejector paddle assembly (W/TAG
V-004) (REP 12.100-171)
23 032E35301 Rear tamper arm
24 – Rear tamper pulley (P/O PL 12.110
Item 29)
25 – Pressing and support sensor A
(Q12-172), B (Q12-171), C (Q12-
173) (P/O PL 12.110 Item 29)
26 868E36871 Front tamper arm
27 – Stapler unit 1 motor (MOT12-249)
(P/O PL 12.110 Item 14)
28 – Rear tamper (P/O PL 12.110 Item
29)
29 032K09681 Rear tamper assembly (REP 12.15-
171)
30 032E35341 Set of front and rear tamper arms
31 – Staple cartridge (REF: PL 26.10
Item 15)
32 – Support bracket (Not spared)
33 003K21100 Pressing plate kit
34 962K82410 Stapler harness and P-clip
35 – Ejector assembly safety cover (P/O
PL 31.11 Item 10)
36 – Rear tamper drive belt (P/O PL
12.110 Item 29)
37 – Rear tamper bracket (P/O PL
12.110 Item 29)
