February 2013
6-53
ColorQube® 9303 Family
GP 15, GP 16
General Procedures/Information
Refer to Figure 12 for the location of the LED’s on the scanner PWB.

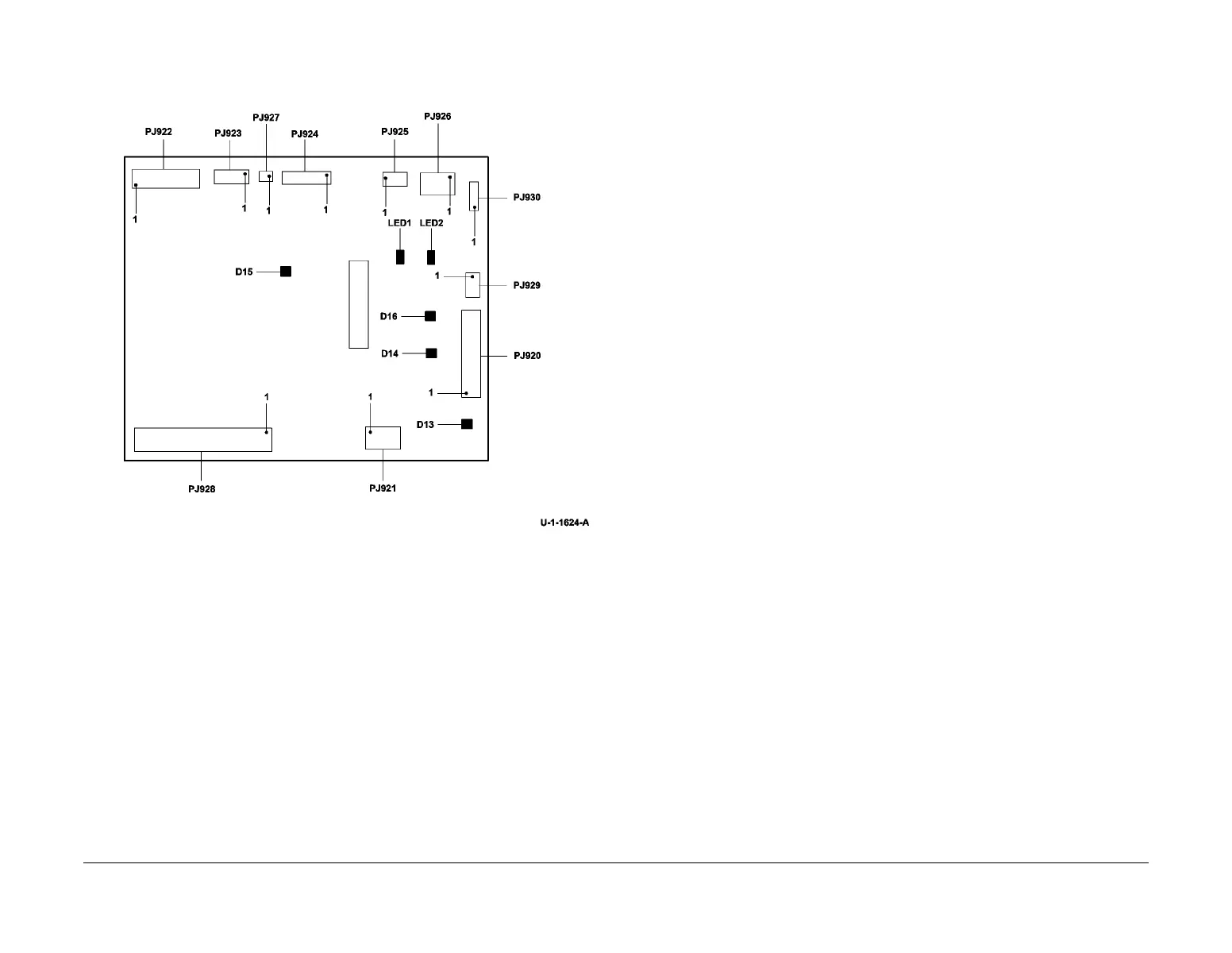

Figure 12 Scanner PWB
GP 16 How to Safely Lift or Move Heavy Modules
Purpose
Use this procedure when lifting or moving heavy modules.
Procedure
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
When removing heavy modules from the machine, the following instructions must be observed:
1. Ensure that a suitable stable surface to support the module after removal is located in
close proximity to the machine.
NOTE: Other parts of the machine are not a suitable stable surface.
2. Ensure that the height of the support surface is between 750 mm and 1000 mm (30
inches and 39 inches).
3. Ensure that there are no hazards or obstacles between the machine and the support sur-
face.
4. If instructed to remove the module toward the rear of the machine and only one person is
available, the module must be removed while standing at the rear of the machine. If two
people are available, the module may be removed while standing at the front of the
machine.
5. Two people are required if the module is to be lifted on to the floor or lifted from the floor.
To Next Page
