Xerox ColorQube 9303 Series Service Manual

February 2013
5-82
ColorQube® 9303 Family
PL 75.70
Parts Lists

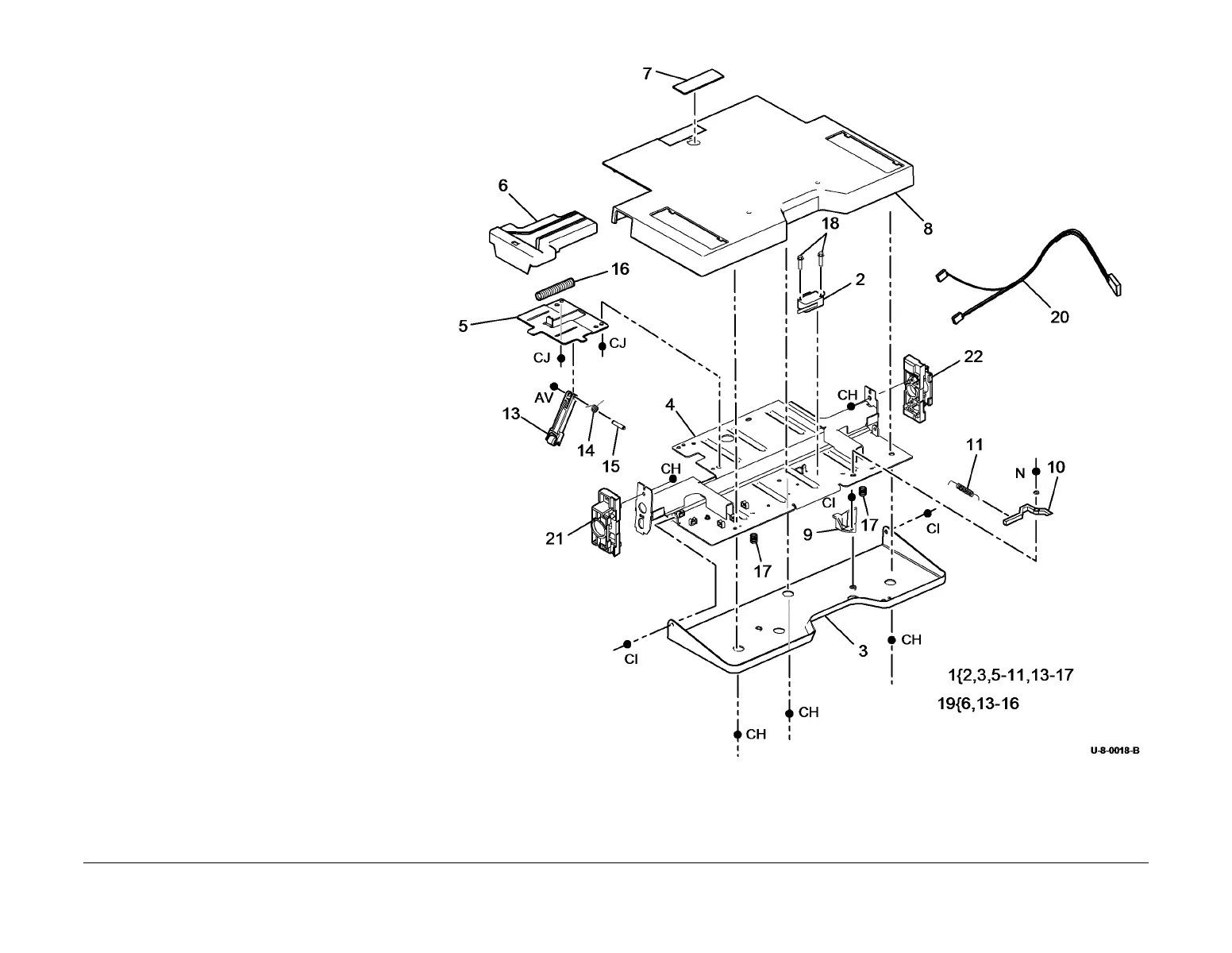

PL 75.70 Tray 5 Lift Assembly (2 of 2)
Item Part Description
1 – Tray lift assembly (Not spared)
2 110E06961 Tray down limit switch (S75-415)
(REP 75.6)
3 025E06871 Lower safety bar
4 – Lift plate (Not spared)
5 – Fixing plate (Not spared)
6 – Infill plate (P/O PL 75.70 Item 19)
7 019K13470 Cork pad
8 – Tray lift top cover (Not spared)
9 – Lift plate crash bar actuator 2 (Not
spared)
10 – Lift plate crash bar actuator 1 (Not
spared)
11 – Crash bar actuator spring (Not
spared)
12 – Not used
13 – Infill actuator arm (P/O PL 75.70
Item 19)
14 – Infill actuator arm spring (P/O PL
75.70 Item 19)
15 – Infill actuator arm pin (P/O PL 75.70
Item 19)
16 – Infill plate spring (P/O PL 75.70
Item 19)
17 – Lower safety spring (Not spared)
18 612W25655 Tray down limit switch screw
19 815K11380 Infill plate assembly
20 962K50461 Tray 5 elevator harness (PJ504)
21 032E29800 Rear elevator tray guide (REP
75.11)
22 032E29790 Front elevator tray guide (REP
75.11)
