Xerox ColorQube 9303 Series Service Manual

February 2013
5-79
ColorQube® 9303 Family
PL 75.62
Parts Lists

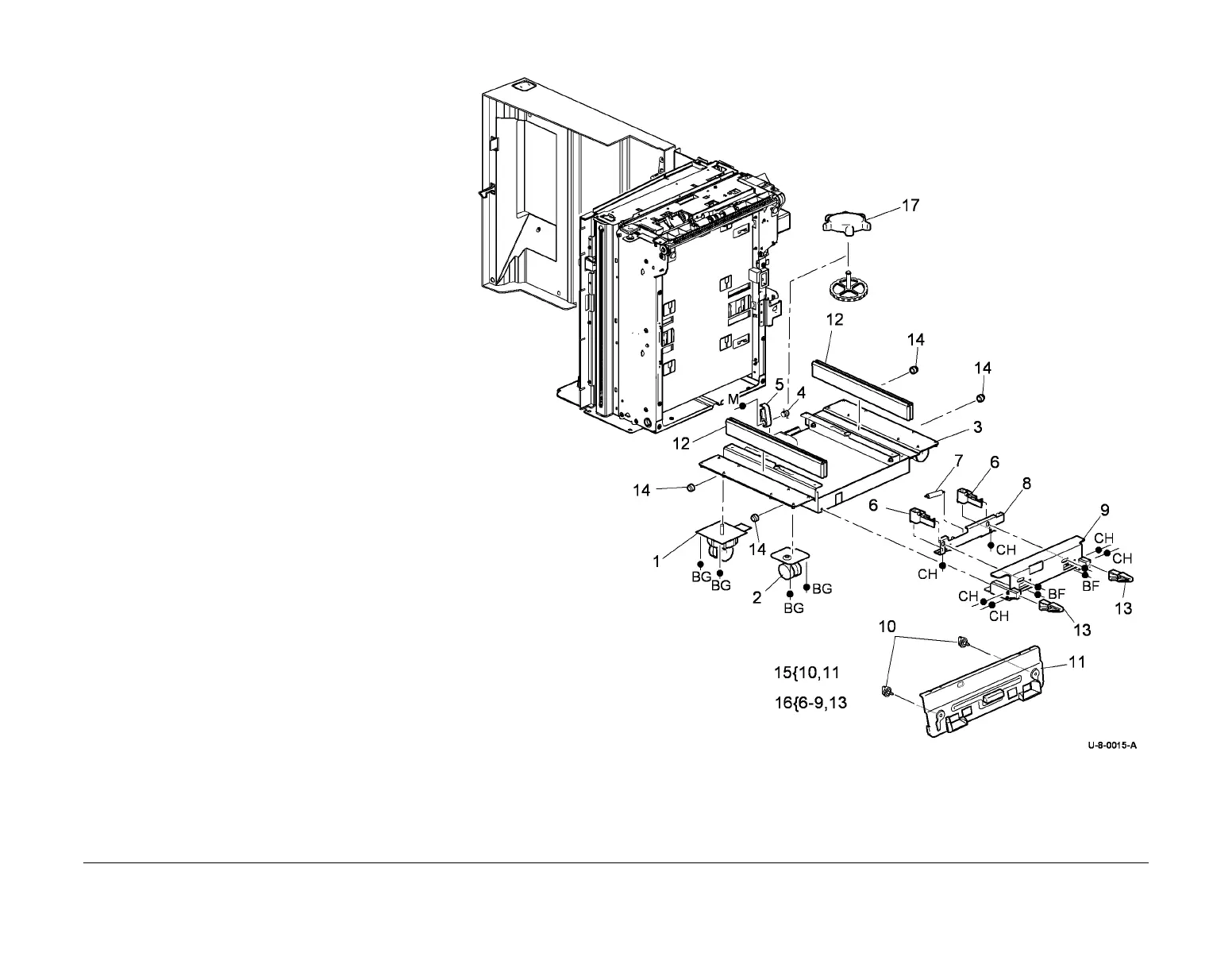

PL 75.62 Tray 5 Base
Item Part Description
1 – Adjustable caster (Not spared)
2 – Caster (Not spared)
3 – Platform assembly (Not spared)
4 009E74211 Spring Bias
5 003E76870 Latch bias
6 003E78020 Docking latch (REP 75.9)
7 – Docking latch spring (P/O PL 75.62
Item 16)
8 – Docking latch bracket (P/O PL
75.62 Item 16)
9 – Docking latch main bracket (P/O PL
75.62 Item 16)
10 803E13680 Docking latch thumb screw
11 068K54910 Docking plate
12 – Slide assembly (Not spared)
13 – Docking guides (P/O PL 75.62 Item
16)
14 – Slide assembly locking nut (Not
spared)
15 049K00270 Docking kit
16 003K20681 Latch assembly
17 – Adjuster wheel (Not spared)
