February 2013
4-121
ColorQube® 9303 Family
REP 12.17-110
Repairs/Adjustments
REP 12.17-110 Ejector Belt
Parts List on PL 12.50.
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the ejector assembly, refer to REP 12.10-110.
2. Figure 1, remove the ejector belt.

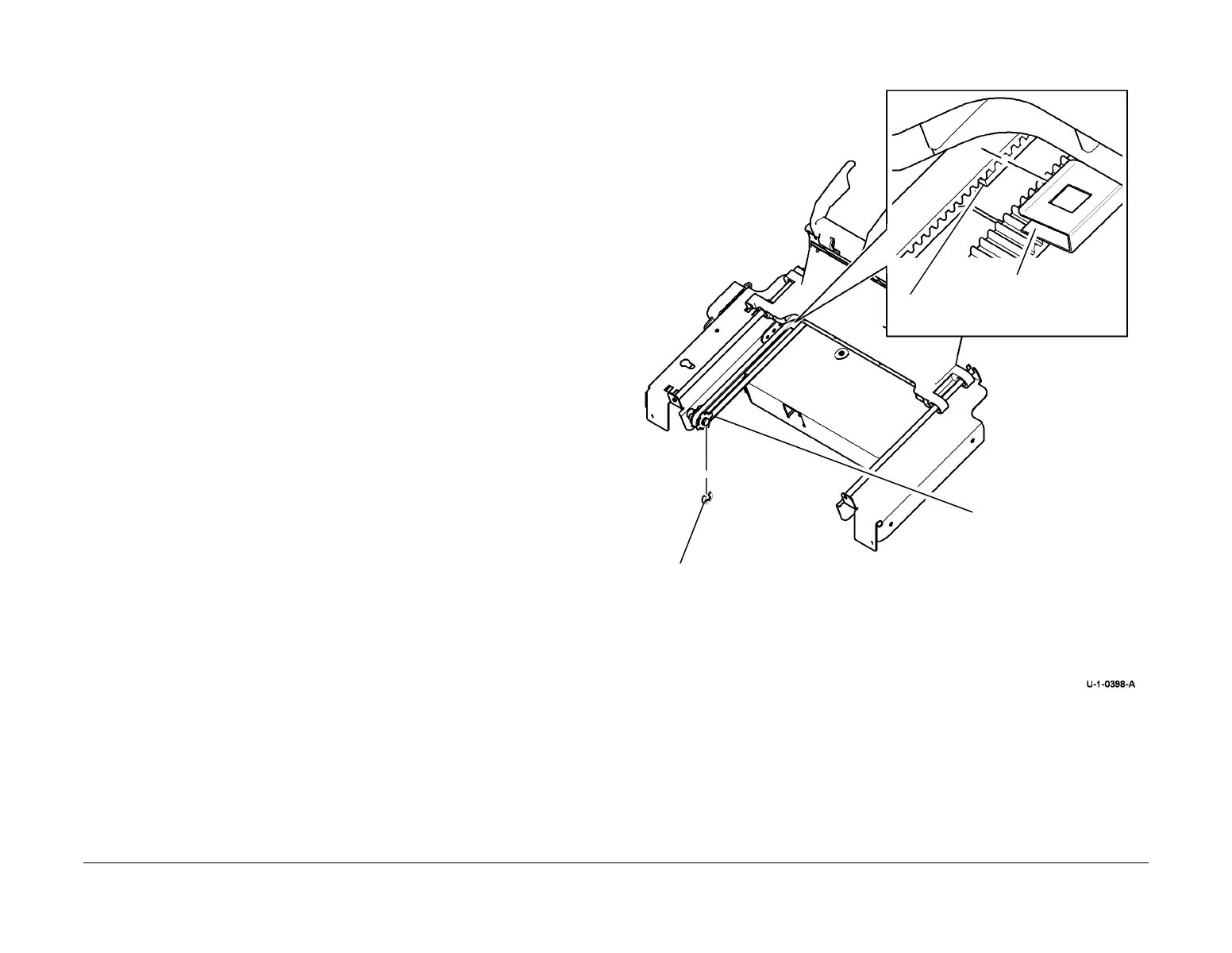

Figure 1 Remove the ejector belt
Replacement
The replacement is the reverse of the removal procedure. Ensure that the ejector belt is cor-
rectly engaged with the belt grip on the ejector assembly before the clip is reinstalled. Refer to
Figure 1.
1
Remove the clip.
2
Remove the E-clip.
3
Remove the pulley
then the ejector belt.
Belt grip.
To Next Page
