ColorQube® 9303 Family
REP 12.31-171
Repairs/Adjustments
REP 12.31-171 HVF Buffer Guide Assembly
Parts List on PL 12.125.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine GP 14. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Remove the HVF front door, REP 12.1-171.
2. Remove the HVF top cover, REP 12.1-171.
3. Remove the HVF front cover, REP 12.1-171.
4. Remove the HVF rear cover, REP 12.1-171.

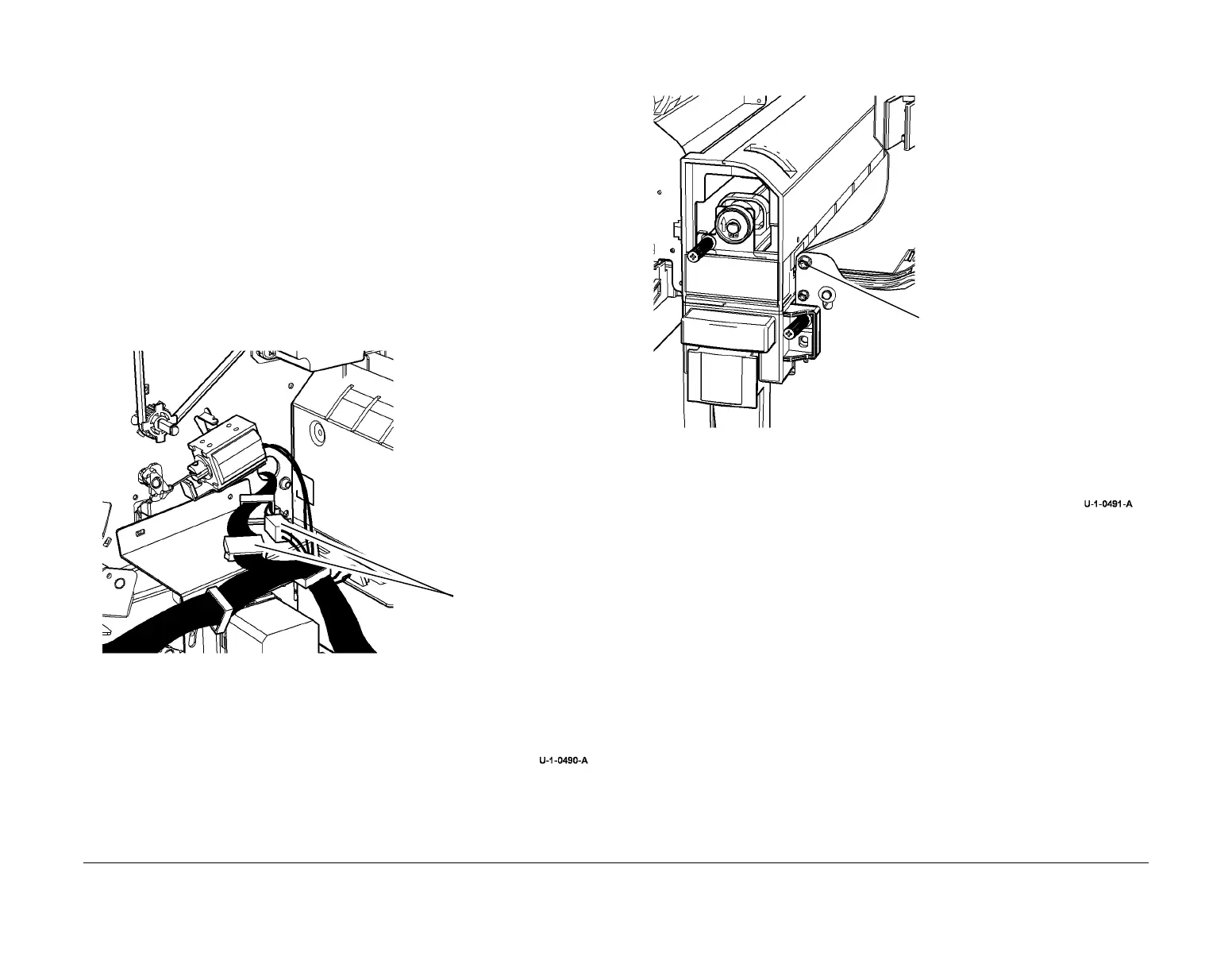

5. Figure 1. At the rear of the finisher, disconnect the two PJs.
Figure 1 Disconnecting PJs.
6. Figure 2. Remove the pivot screw.
Figure 2 Pivot screw removal.
7. Pass the PJs through the cut-out in the rear frame.
8. Withdraw the guide through the front opening.
Replacement
Position the spigot at the guide rear in the hole in the rear frame. The rest of the replacement
procedure is the reverse of the removal procedure.
1
Disconnect the
two PJs.
REAR VIEW
1
Remove the
pivot screw.
