February 2013
4-89
ColorQube® 9303 Family
REP 10.18, REP 10.19
Repairs/Adjustments

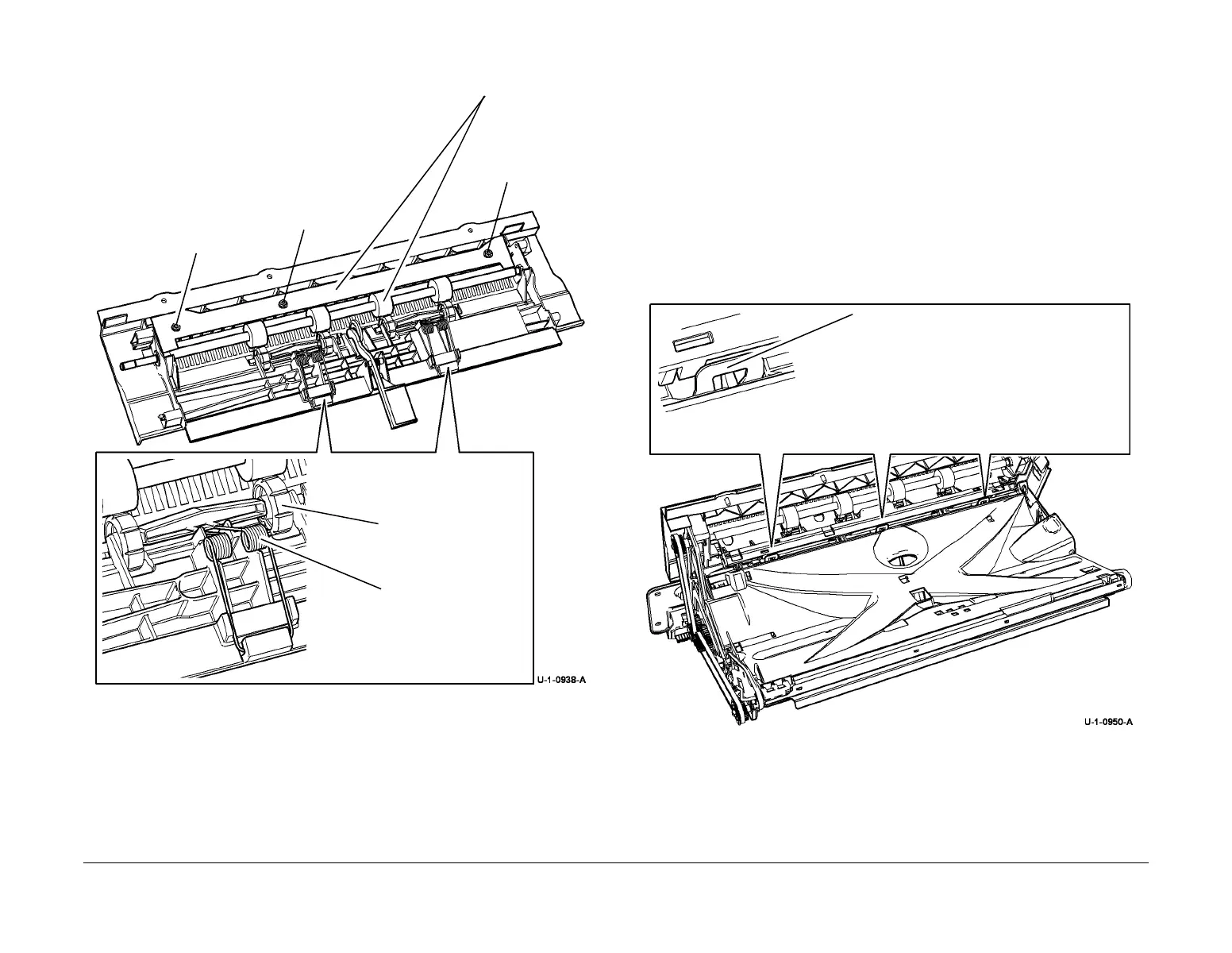

4. Remove roller nip N, Figure 3.
Figure 3 Roller nip N removal
Replacement
Replacement is the reverse of the removal procedure.
REP 10.19 Exit Illuminator PWB
Parts List on PL 10.15
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the exit paper path, REP 10.20.
2. Remove diverter gate, REP 10.13.
3. Remove the paper guide, Figure 1.
Figure 1 Paper guide removal
Correct orientation of spring
and nip idler assembly.
2
Remove the screws marked A.
A
A
A
3
Remove the cove
and roller nip N.
Nip idler assembly.
Spring.
1
With the jam clearance door opened, release the
3 retaining tabs. Then remove the inner paper
guide.
To Next Page
