February 2013
5-98
ColorQube® 9303 Family
PL 91.15
Parts Lists

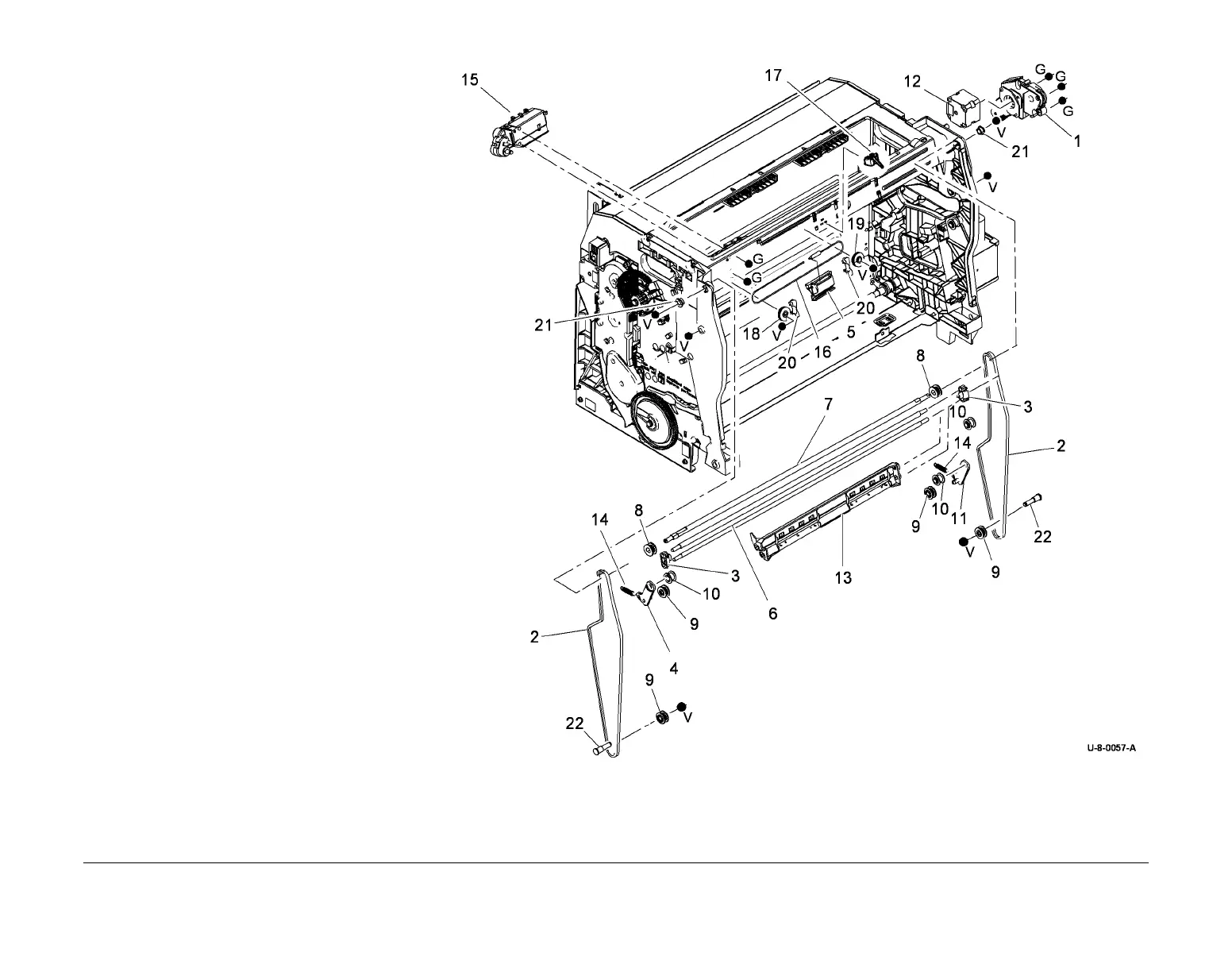

PL 91.15 Marking Unit Belt and Drive
Item Part Description
1 007K19800 Vertical gearbox (REP 91.2)
2 023E31420 HM belt (REP 91.5)
3 019E80820 HM belt clip (REP 91.5)
4 801E11470 Front tensioner base (REP 91.4)
5 033K04550 Horizontal drive paddle
6 – Horizontal drive shaft (Not spared)
7 – Upper drive shaft (Not spared)
8 020K20630 Drive pulley
9 020K20470 Belt pulley
10 022E38380 Tensioner pulley
11 801E11480 Back tensioner base (REP 91.4)
12 – HM vertical motion motor (MOT91-
023) (P/O PL 91.15 Item 1) (REP
91.2)
13 033K04560 HM wiper (REP 91.3)
14 009K02440 HM tensioner spring
15 007K19790 HM Horizontal motion motor
(MOT91-025) (REP 91.6)
16 023K01420 Horizontal drive cable
17 130E18200 HM position sensor (Q91-014)
18 020K20560 HM drive pulley
19 020K20570 HM idler pulley
20 – HM drive cable stop (Not spared)
21 – Bearing (Not spared)
22 – Belt pulley shaft (Not spared)
To Next Page
