February 2013
5-5
ColorQube® 9303 Family
PL 2.10
Parts Lists

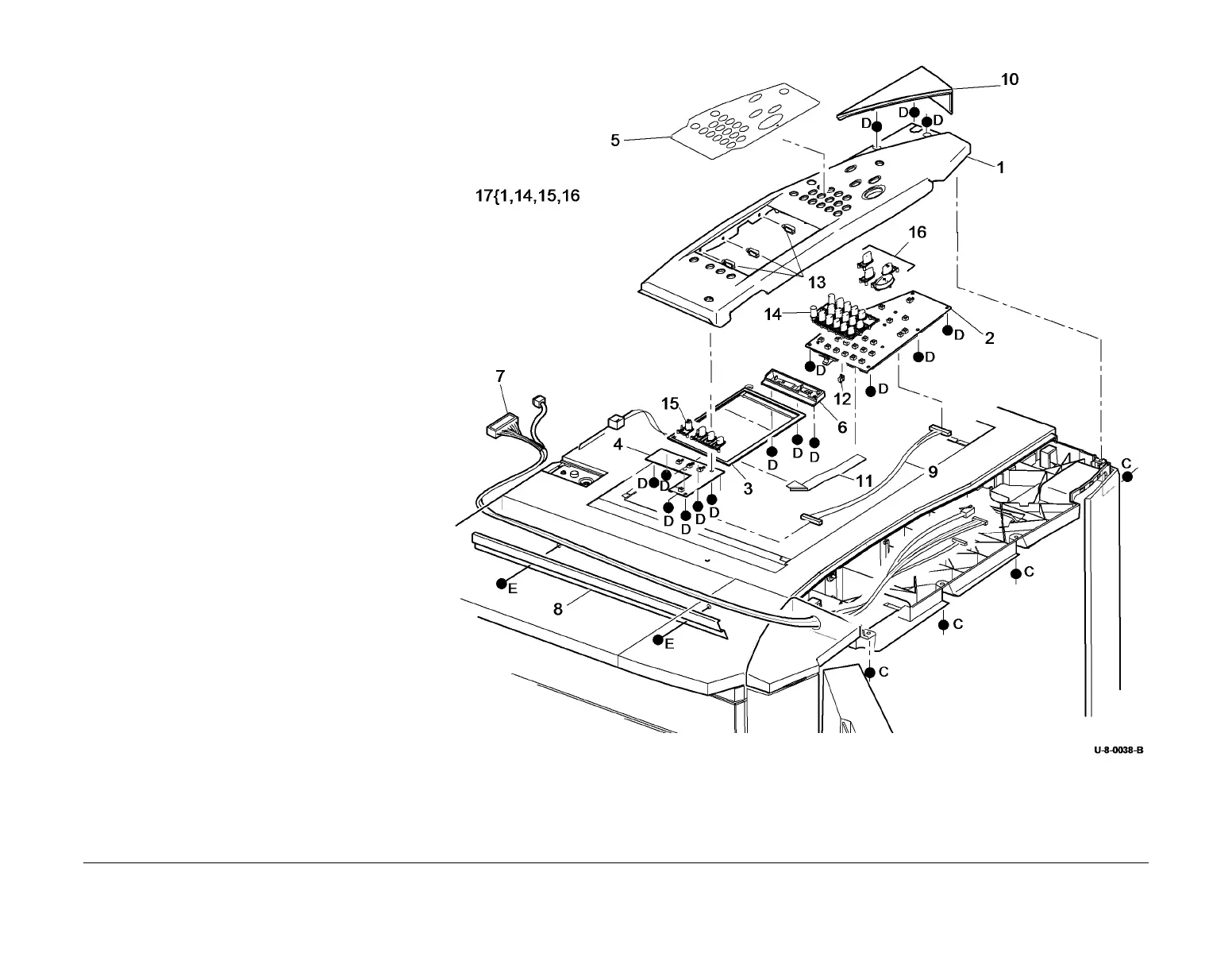

PL 2.10 User Interface
Item Part Description
1 – User interface control panel
housing (XE) (P/O PL 2.10 Item 17)
– – User interface control panel
housing (USSG/XCL) (P/O PL 2.10
Item 17)
2 960K66481 User interface control PWB (REP
2.3)
3 123K08482 User interface touch screen (REP
2.2)
4 960K52290 User interface status PWB
5 – French/Canadian overlay label (P/
O PL 31.11 Item 8)
6 – Retainer touch screen (Not spared)
7 952K00890 User interface harness (PJ19 to
PJ905, PJ223 to PJ900)
8 – UI harness cover (Not spared)
9 962K76550 User interface control PWB to user
interface status PWB harness
(PJ907 to PJ908)
10 848E40401 UI inlay
11 962K76560 LCD to PWB harness
12 – Harness clip (Not spared)
13 – User interface harness clip (P/O PL
31.10 Item 12)
14 – Numeric keys (P/O PL 2.10 Item
17)
15 – Service keys (P/O PL 2.10 Item 17)
16 – Power keys (P/O PL 2.10 Item 17)
17 848K31214 UI plastic housing (XE) (REP 2.1)
– 848K31224 UI plastic housing (USSG/XCL)
(REP 2.1)
To Next Page
