February 2013
4-126
ColorQube® 9303 Family
REP 12.1-171, REP 12.2-171
Repairs/Adjustments
Replacement
The replacement procedure is the reverse of the removal procedure.
Depending on the installed options and the covers removed, refit covers in the following
sequence:
1. Vent cover, PL 12.100 Item 6.
2. Foot cover (if no tri-folder installed), PL
3. Rear cover, PL 12.100 Item 5.
4. Front cover, PL 12.100 Item 2.
5. Top cover, PL 12.100 Item 1.
6. Inserter cover (if no inserter installed). PL 12.100 Item 8.
7. Front door, PL 12.100 Item 3.
REP 12.2-171 HVF Stapler Assembly
Parts List on PL 12.110.
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Slide the HVF away from the machine.
2. Remove the HVF front door, REP 12.1-171.
3. Remove the HVF top cover, REP 12.1-171.
4. Remove the HVF front cover, REP 12.1-171.
5. Remove the rear cover, REP 12.1-171.
6. Figure 1. At the rear of the HVF, disconnect three connectors and remove one screw
securing the grounding strap.

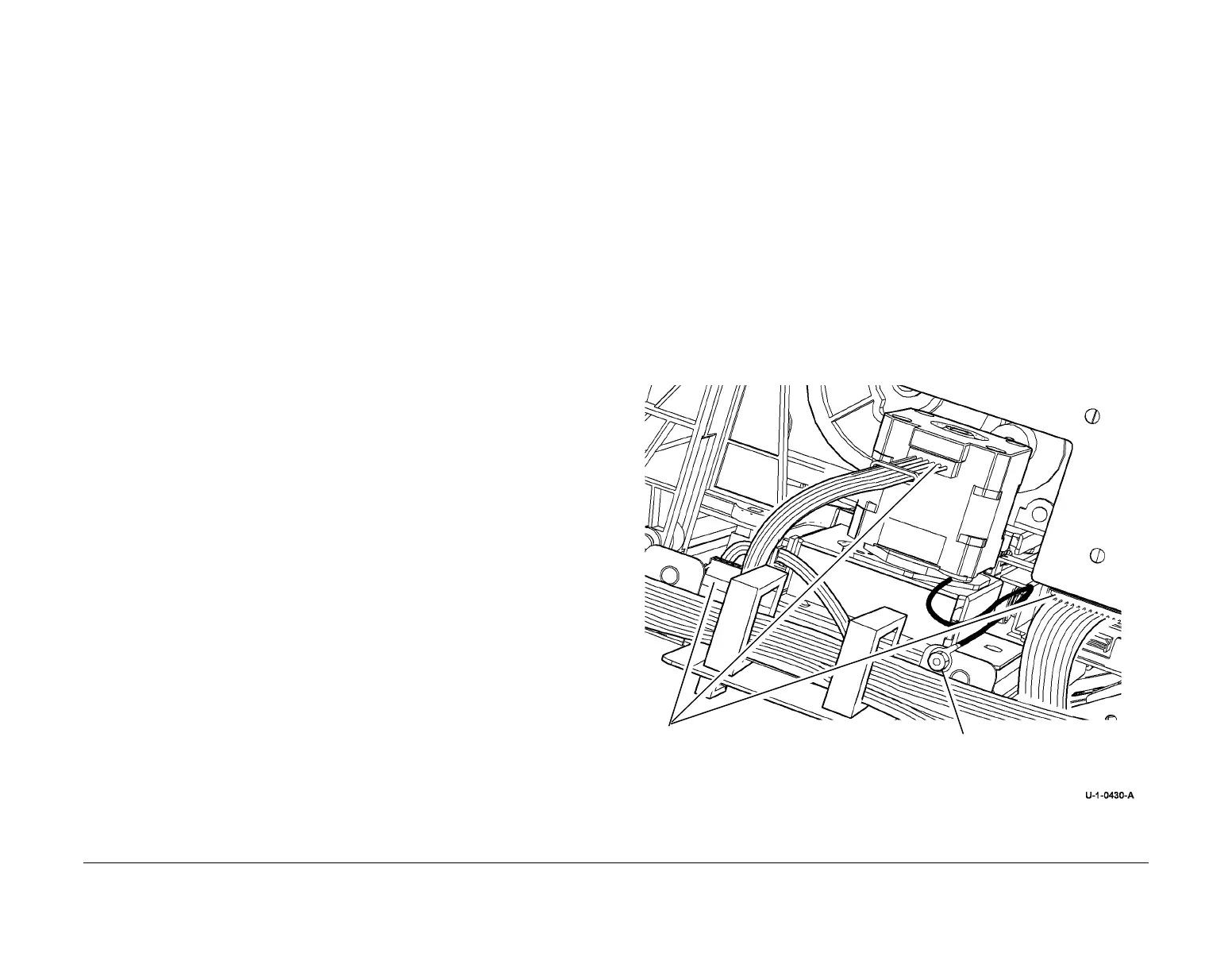

Figure 1 Disconnect PJs and remove screw
1
Disconnect three PJs.
2
Remove grounding
strip screw.
REAR VIEW
To Next Page
