February 2013
5-7
ColorQube® 9303 Family
PL 5.10
Parts Lists

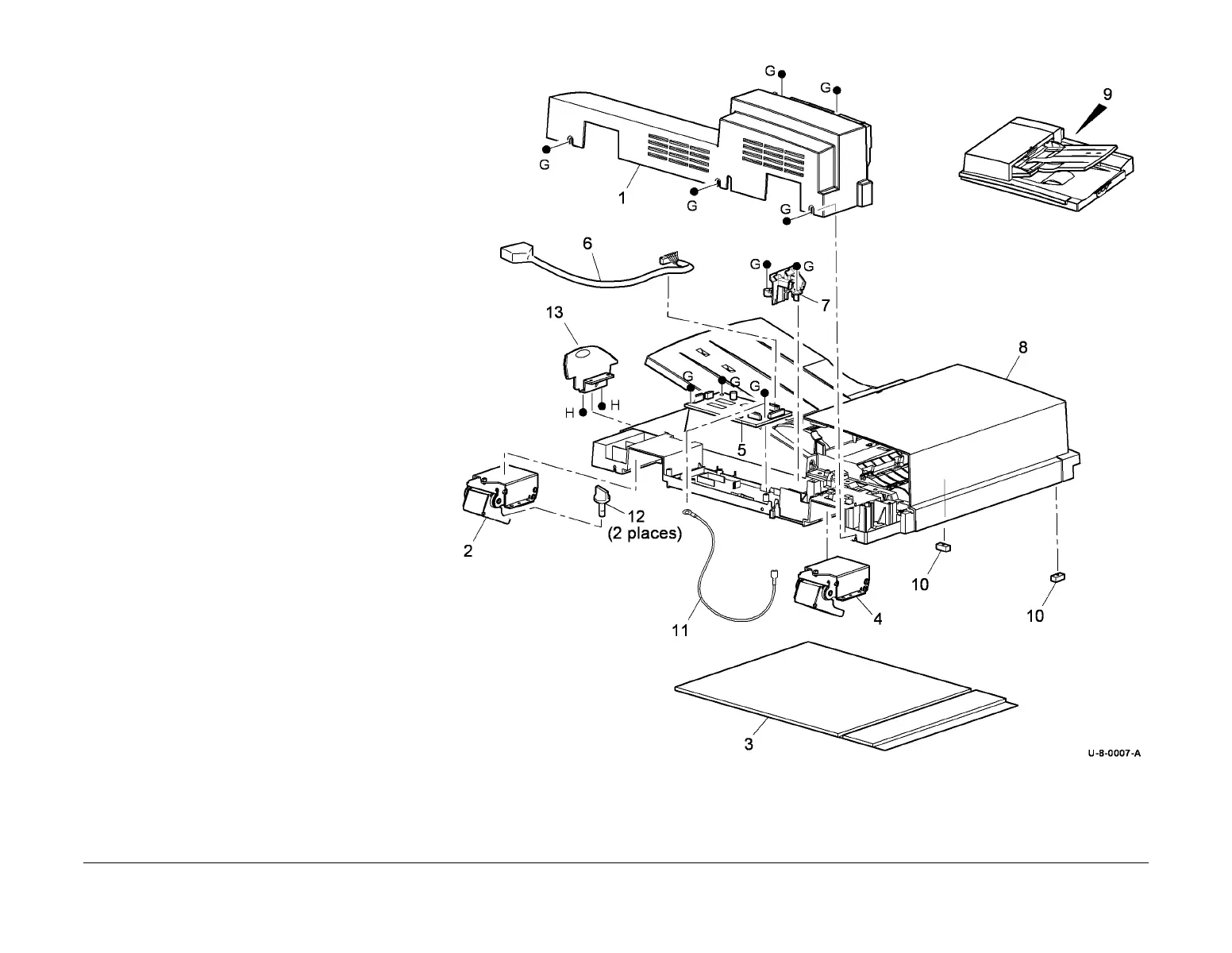

PL 5.10 DADH (Complete), Covers,
DADH PWB
Item Part Description
1 802E19352 Rear cover
2 036K01701 Right counterbalance (REP 5.12,
ADJ 5.2, ADJ 5.5)
3 019K13350 Document pad (ADJ 5.6)
4 036K01630 Left counterbalance (REP 5.12,
ADJ 5.2, ADJ 5.5)
5 960K51762 DADH PWB
6 962K62932 Communication/power cable
(PJ188, PJ851)
7 – Harness support (P/O PL 5.10 Item
9)
8 – Top cover (REF: PL 5.20 Item 15)
9 084K36766 DADH (complete) (REP 5.19, ADJ
5.2, ADJ 5.5)
10 121E17510 DADH Platen down sensor magnet
(See NOTE)
11 – DADH ground harness (P/O PL
5.10 Item 9)
12 – Thumbscrew (Not spared)
13 017E11301 End stop
NOTE: To clean the DADH, refer to ADJ 5.4. For the platen
down sensor (Q62-019) refer to PL 62.16 Item 5.
To Next Page
