February 2013
5-30
ColorQube® 9303 Family
PL 12.70
Parts Lists

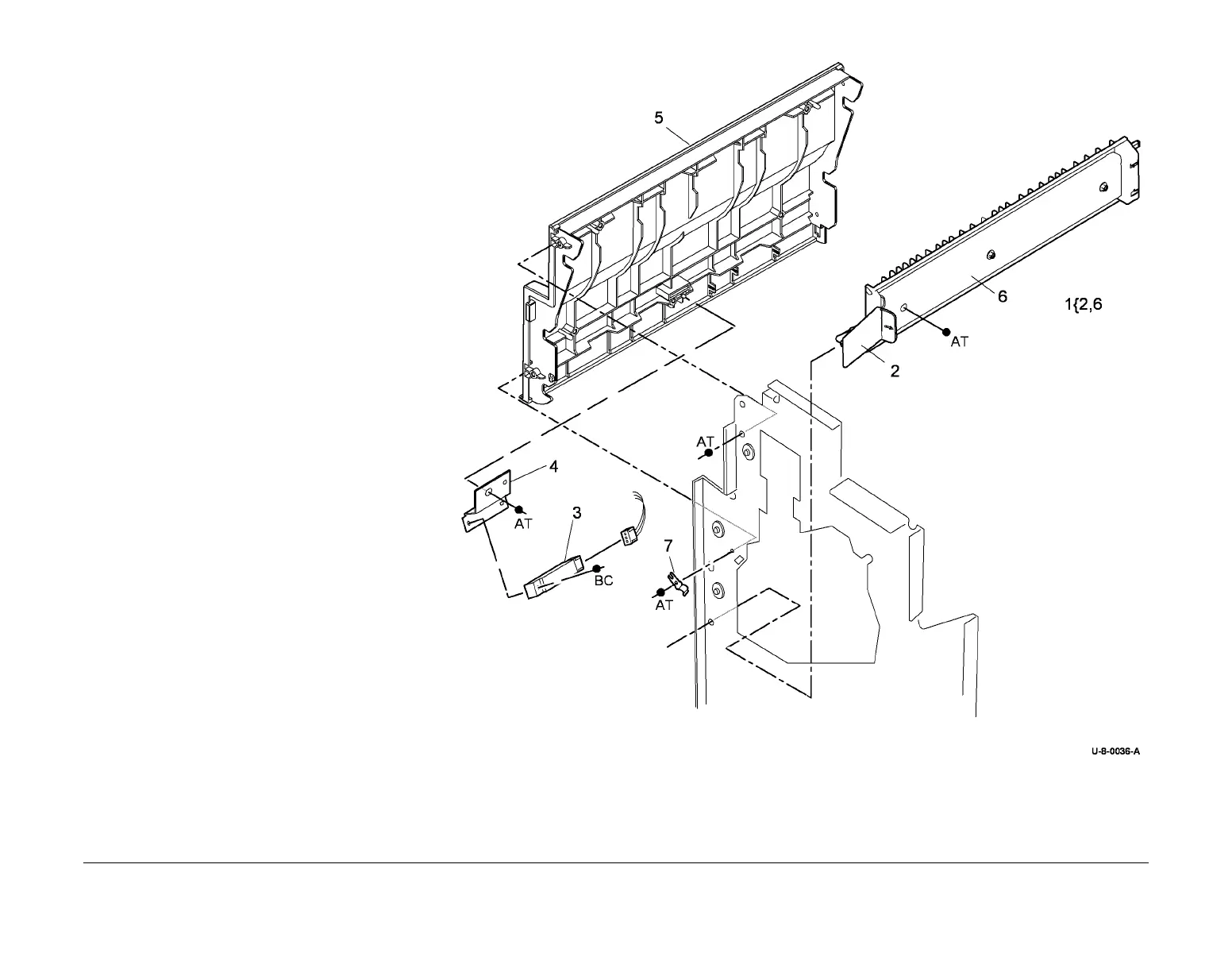

PL 12.70 LCSS Entry Guide Cover/
Jam Clearance Guide
Item Part Description
1 032K09670 Jam clearance guide assembly
2 003K17531 Jam clearance handle
3 130E10380 Entry sensor (Q12-077)
4 – Sensor bracket (Not spared)
5 848K31330 Entry guide cover (REP 12.15-110)
6 – Jam clearance guide (P/O PL 12.70
Item 1)
7 – Latch (Not spared)
