February 2013
4-57
ColorQube® 9303 Family
REP 5.18, REP 5.19
Repairs/Adjustments
Replacement
The replacement is the reverse of the removal procedure. Make sure that the torsion spring
and document finger are installed correctly, refer to Figure 3.

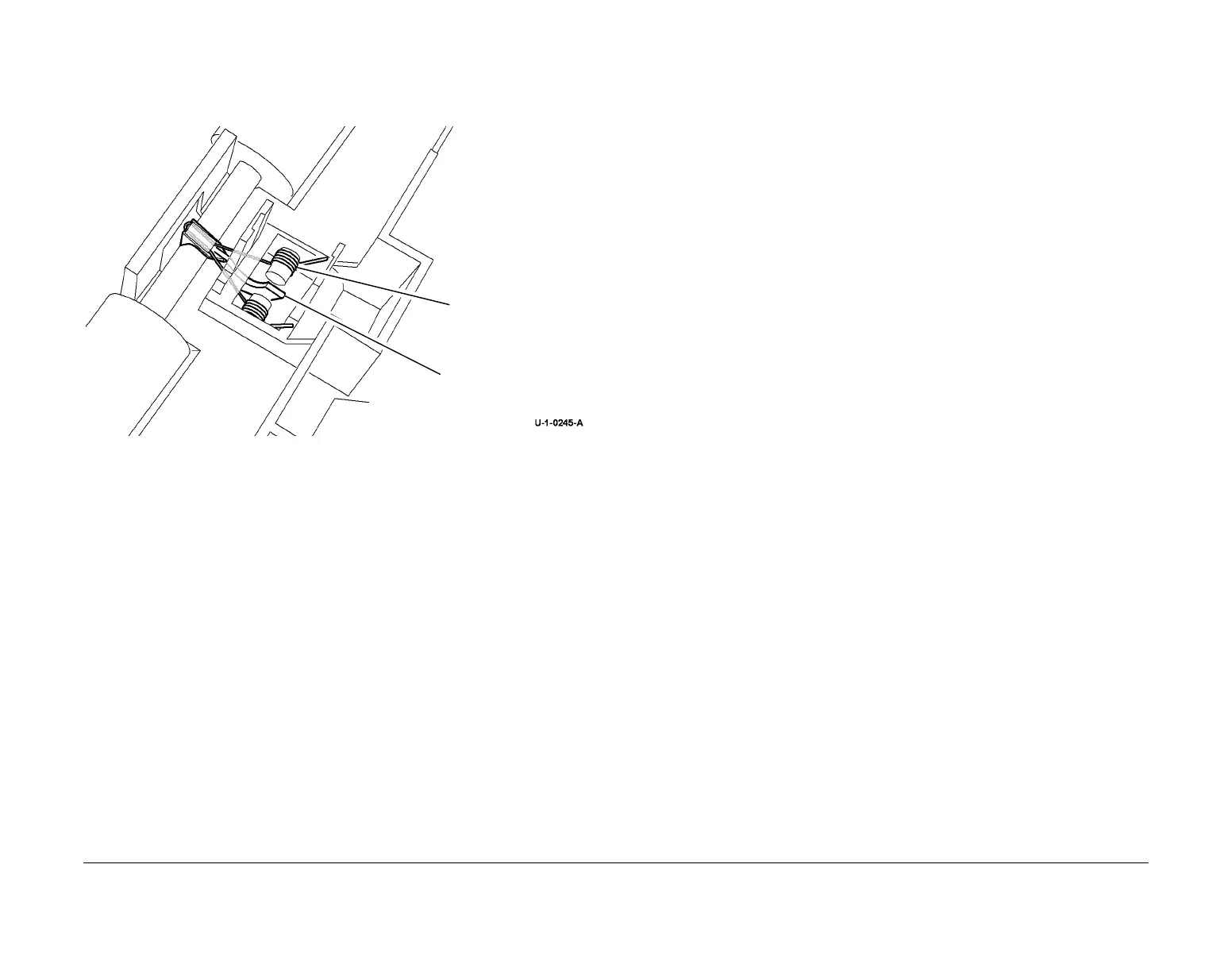

Figure 3 Torsion spring and document finger
REP 5.19 DADH Removal
Parts List on PL 5.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Do not remove the DADH while the DADH is lowered. In the lowered position the coun-
terbalance springs are compressed and can cause injury when released.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Disconnect the communication/power cable, PL 5.10 Item 6 and the DADH ground har-
ness, PL 5.10 Item 11.
2. Raise the DADH.
WARNING
Use safe handling procedures when removing the module, GP 16. The module is heavy.
NOTE: The DADH weight is 13Kg (29lb.).
Torsion spring.
Document finger.
To Next Page
