Xerox ColorQube 9303 Series Service Manual

February 2013
5-16
ColorQube® 9303 Family
PL 10.20
Parts Lists

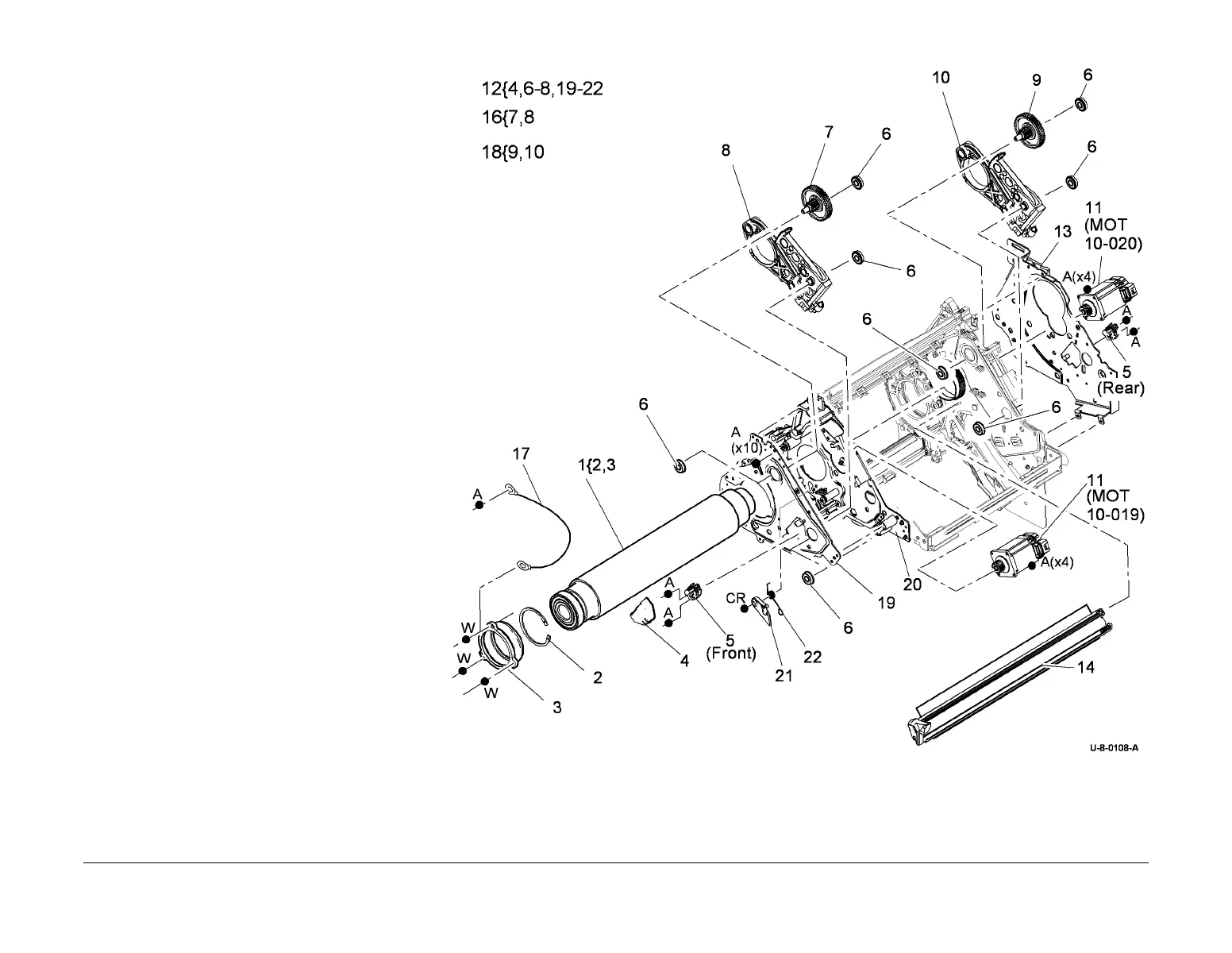

PL 10.20 Transfix Roller Assembly
Item Part Description
1 059K78250 Transfix roller (REP 10.1)
2 – Bearing retainer (P/O PL 10.20
Item 1)
3 – Transfix bearing carrier (P/O PL
10.20 Item 1)
4 848E34280 Transfix encoder cover
5 146K01011 Front transfix flexure encoder/Rear
transfix flexure encoder (REP
10.24)
6 – Bearing (P/O PL 10.20 Item 12)
7 – Front compound gear (P/O PL
10.20 Item 16)
8 – Front transfix linkage assembly (P/
O PL 10.20 Item 16) (REP 10.2)
9 – Rear compound gear (P/O PL
10.20 Item 18) (REP 10.3)
10 – Rear transfix linkage assembly (P/
O PL 10.20 Item 18) (REP 10.3)
11 127K62320 Front transfix motor (MOT10-019)
(REP 10.4), Rear transfix motor
(MOT10-020) (REP 10.5)
12 801K37690 Front drum frame assembly (REP
10.2)
13 801K37940 Rear outer frame (REP 10.3)
14 041K06800 Transfix stripper assembly (See
NOTE) (REP 10.6)
15 – Not used
16 – Front transfix linkage and gear kit
(REF: PL 31.11 Item 21) (REP
10.2)
17 117E35760 Transfix bearing ground cable
18 – Rear transfix linkage and gear kit
(REF: PL 31.11 Item 22) (REP
10.3)
19 – Front outer frame (P/O PL 10.20
Item 12)
20 – Front inner frame (P/O PL 10.20
Item 12)
21 – Latch (P/O PL 10.20 Item 12)
22 – Spring (Not spared)
NOTE: To reset the HFSI count go to dC135.
