February 2013
4-133
ColorQube® 9303 Family
REP 12.7-171, REP 12.8-171
Repairs/Adjustments
REP 12.7-171 Pressing Plate Fingers
Parts List on PL 12.110.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the right side-cover REP 12.5-171.
2. Remove the screws and lower the fingers through the cover slots, Figure 1.

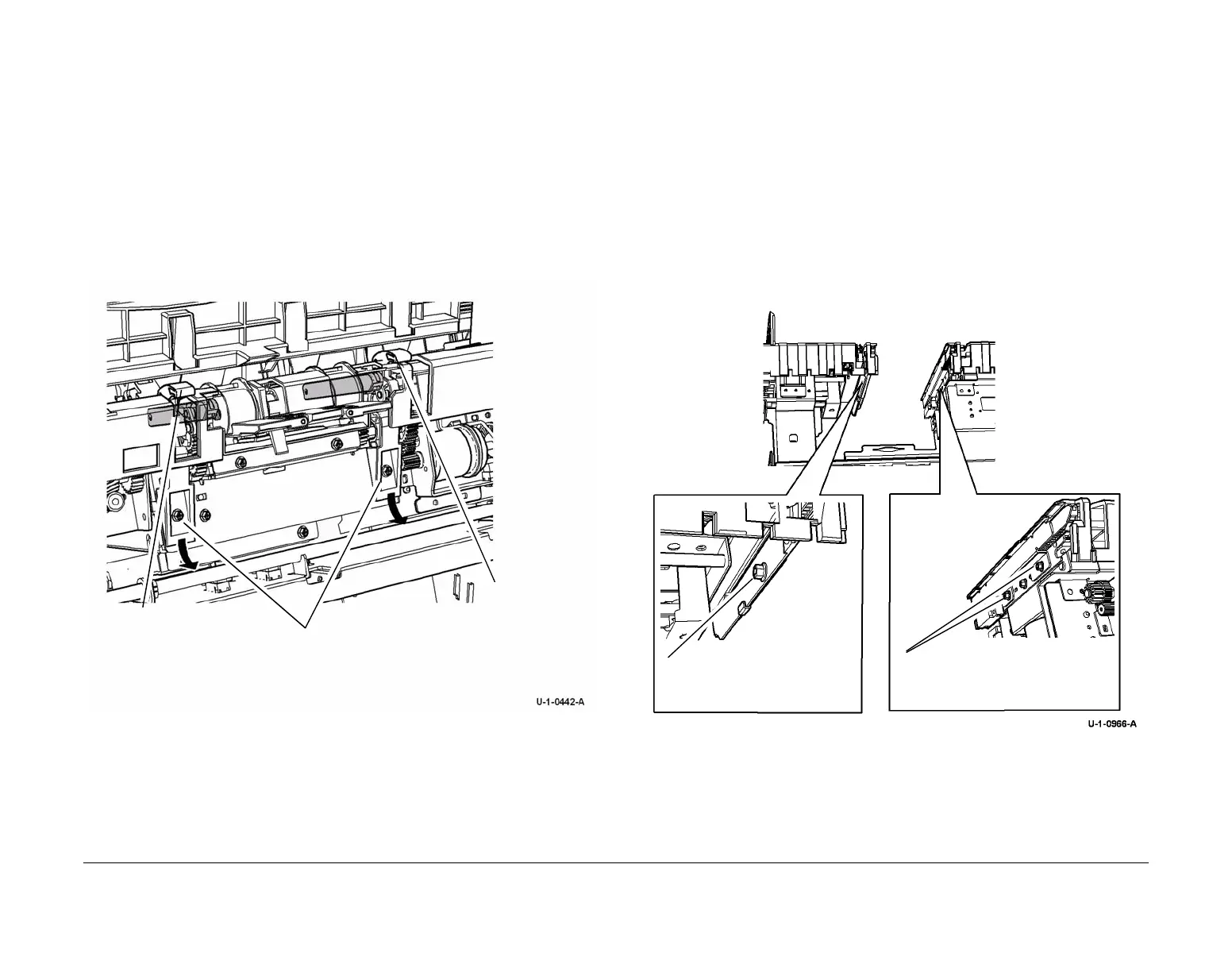

Figure 1 Pressing Plate Fingers
Replacement
Reverse the removal procedures to replace the front and rear pressing plate fingers.
REP 12.8-171 Front and Rear Support Fingers
Parts List on PL 12.110.
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the right side cover REP 12.5-171.
2. Remove the ejector assembly REP 12.7-171.
3. Remove the ejector front plate and support finger assembly, Figure 1.
Figure 1 Remove front and rear support fingers
Replacement
Reverse the removal procedure to replace the front or rear support fingers.
Front pressing
plate finger.
Rear pressing
plate finger.
1
Remove 2 screws.
2
Remove the fingers.
1
Remove screw and remove the
front finger.
2
Remove 2 screws and remove the
rear finger.
REAR
FRONT
