February 2013
4-357
ColorQube® 9303 Family
REP 91.23, REP 91.24
Repairs/Adjustments
4. Remove the rear track guide, Figure 3.

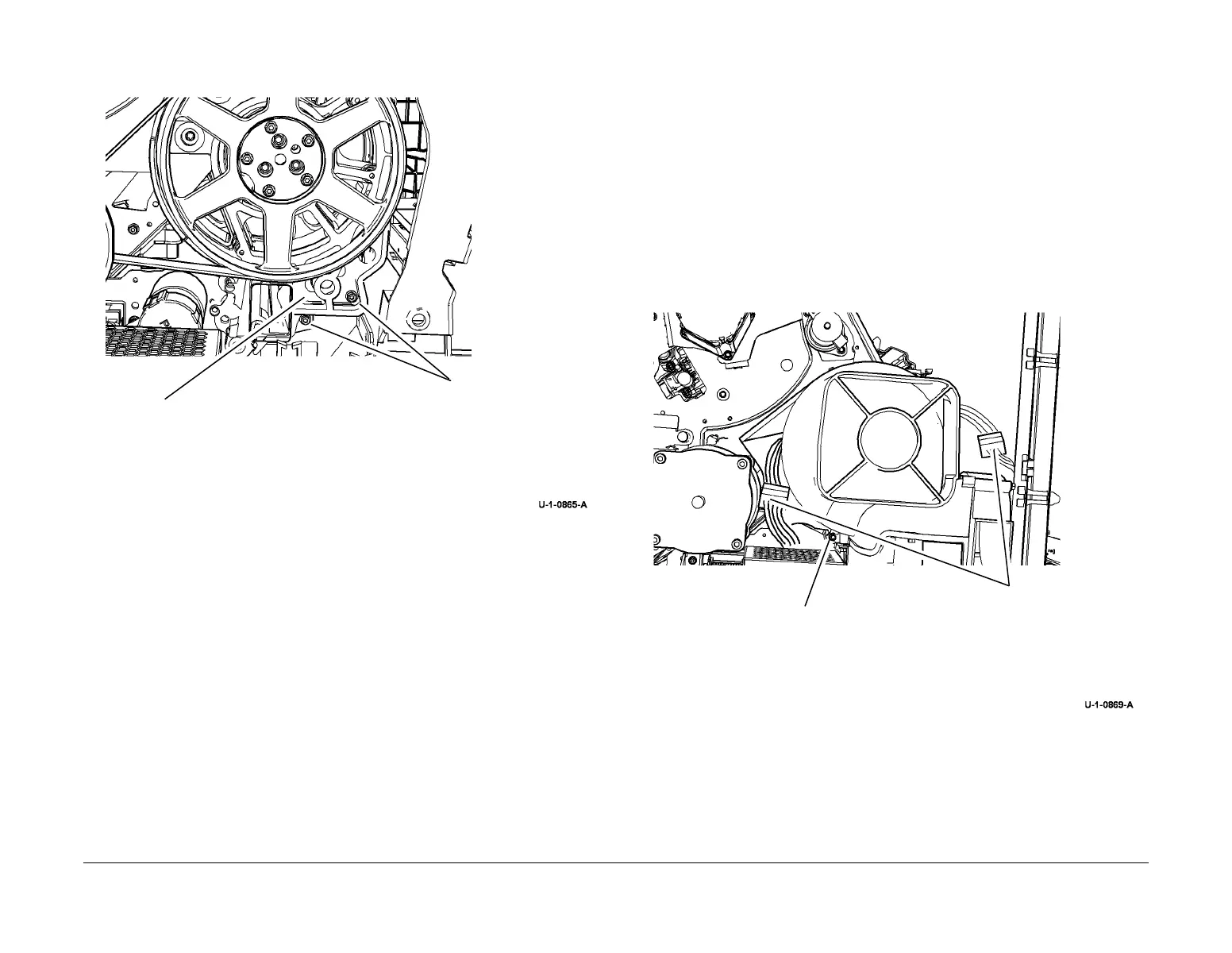

Figure 3 Rear track guide removal
Replacement
CAUTION
Do not over tighten the screws as the track guide will crack.
1. Replacement is the reverse of the removal procedure.
2. Run the relevant diagnostic routines, refer to GP 37 Post Part Replacement Routines.
REP 91.24 Drum Drive Motor and Belt
Parts List on PL 94.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
1. Remove the rear cover, PL 81.10 Item 1.
2. Remove the drum and abatement fan assembly from the rear of the machine, Figure 1.
Figure 1 Drum and abatement fan removal
1
Remove 2 gold screws.
2
Remove the rear track guide
from the inside of the machine.
2
Remove the screw then lift
and remove the abatement
fan assembly.
1
Disconnect harness.
To Next Page
