ColorQube® 9303 Family

PL 5.20

Parts Lists

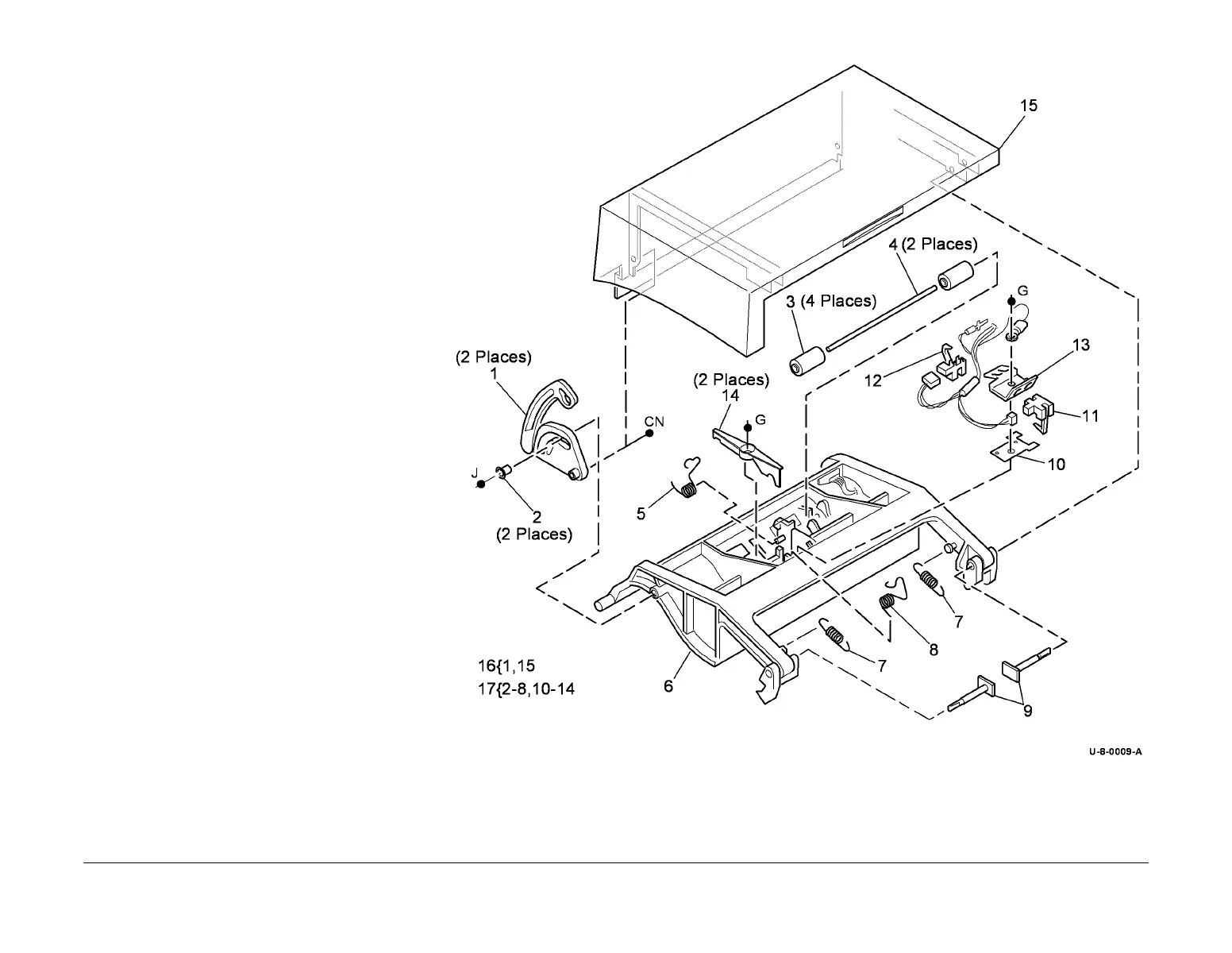

PL 5.20 Top Cover Assembly

Item Part Description

1 – Hinge (P/O PL 5.20 Item 16)

2 – Bushing (P/O PL 5.20 Item 16)

3 022E25061 CVT/Takeaway idler

4 806E19680 Shaft

5 – Torsion spring (green) (P/O PL 5.20

Item 17)

6 038E22914 Base

7 – Spring (P/O PL 5.20 Item 17)

8 – Torsion spring (silver) (P/O PL 5.20

Item 17)

9 029E37810 Latch pin

10 – Spring plate (P/O PL 5.20 Item 17)

11 130K73960 DADH TAR sensor (Q05-096) (REP

5.8)

12 130K73970 DADH CVT Sensor (Q05-097)

(REP 5.8)

13 – Sensor support (P/O PL 5.20 Item

17)

14 – Shaft securing bracket (P/O PL

5.20 Item 17)

15 802K62453 Top cover

16 802K93770 Top cover assembly (REP 5.1)

17 055K37570 Top access cover assembly (REP

5.2)

NOTE: For the top cover interlock switch (S05-212), refer to

PL 5.15 Item 11.
