Xerox ColorQube 9303 Series Service Manual

February 2013
5-43
ColorQube® 9303 Family
PL 12.155
Parts Lists

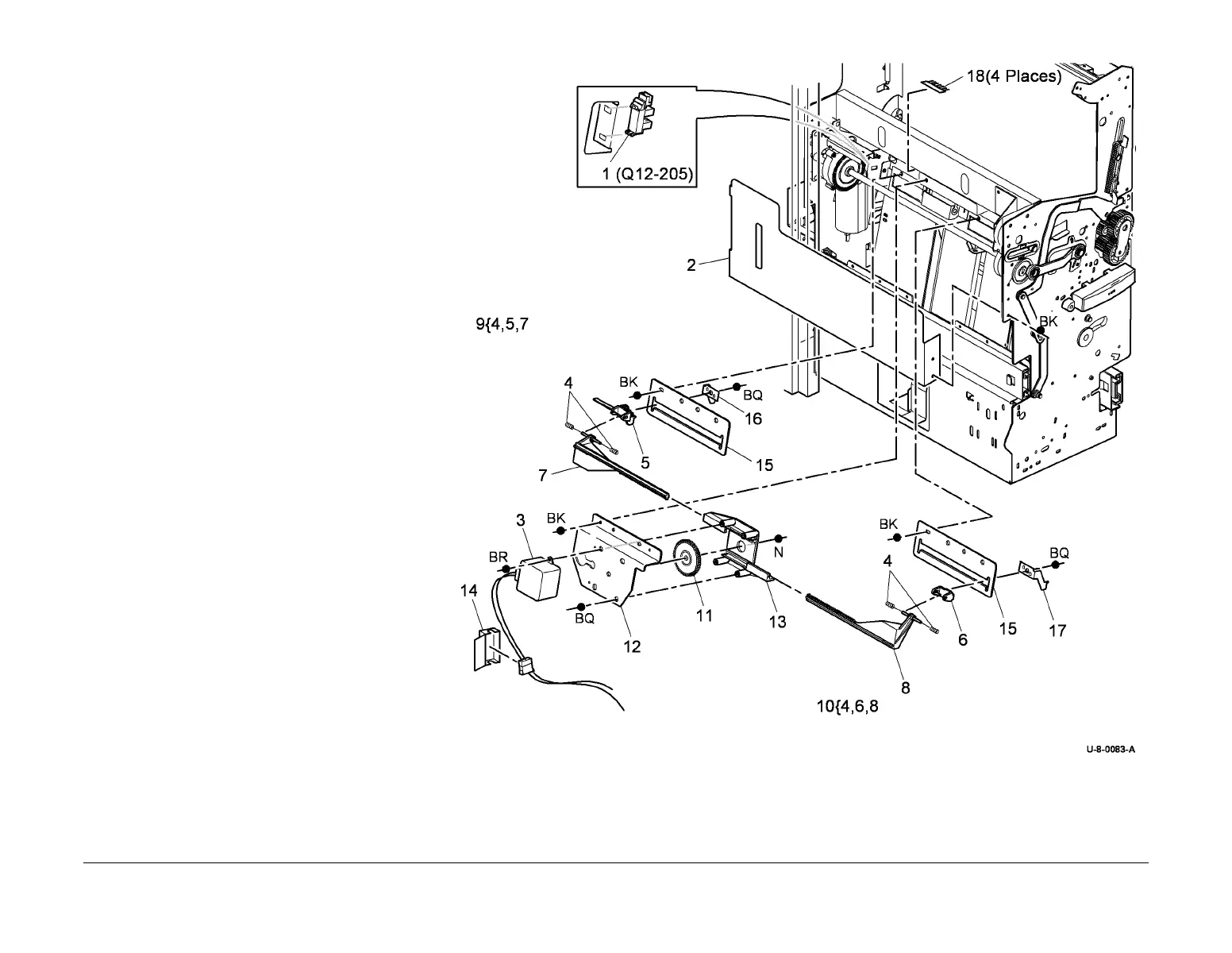

PL 12.155 HVF BM Tamper Assembly
Item Part Description
1 107E22600 BM Tamper 1 home sensor (Q12-
205)
2 – LH Frame plate (Not spared)
3 127K47660 BM Tamper 1 motor (MOT12-256)
(REP 12.30-171)
4 – BM Tamper spring (P/O PL 12.155
Item 10)
5 – BM Rear tamper arm (P/O PL
12.155 Item 9) (REP 12.30-171)
6 – BM Front tamper arm (P/O PL
12.155 Item 10) (REP 12.30-171)
7 – BM Rear tamper rack (P/O PL
12.155 Item 9) (REP 12.30-171)
8 – BM Front tamper rack (P/O PL
12.155 Item 10) (REP 12.30-171)
9 007K13190 BM Rear tamper assembly (REP
12.30-171)
10 007K13180 BM Front tamper assembly (REP
12.30-171)
11 807E15450 BM Tamper gear (REP 12.30-171)
12 – BM Tamper bracket (Not spared)
(REP 12.30-171)
13 – BM Tamper rack guide (Not spared)
(REP 12.30-171)
14 802E59410 BM Connector cover
15 – BM Tamper guide plate (Not
spared) (REP 12.30-171)
16 – BM Rear tamper finger (Not
spared) (REP 12.30-171)
17 – BM Front tamper finger (Not
spared) (REP 12.30-171)
18 125K03593 BM Static eliminator
