February 2013
5-89
ColorQube® 9303 Family
PL 81.40
Parts Lists

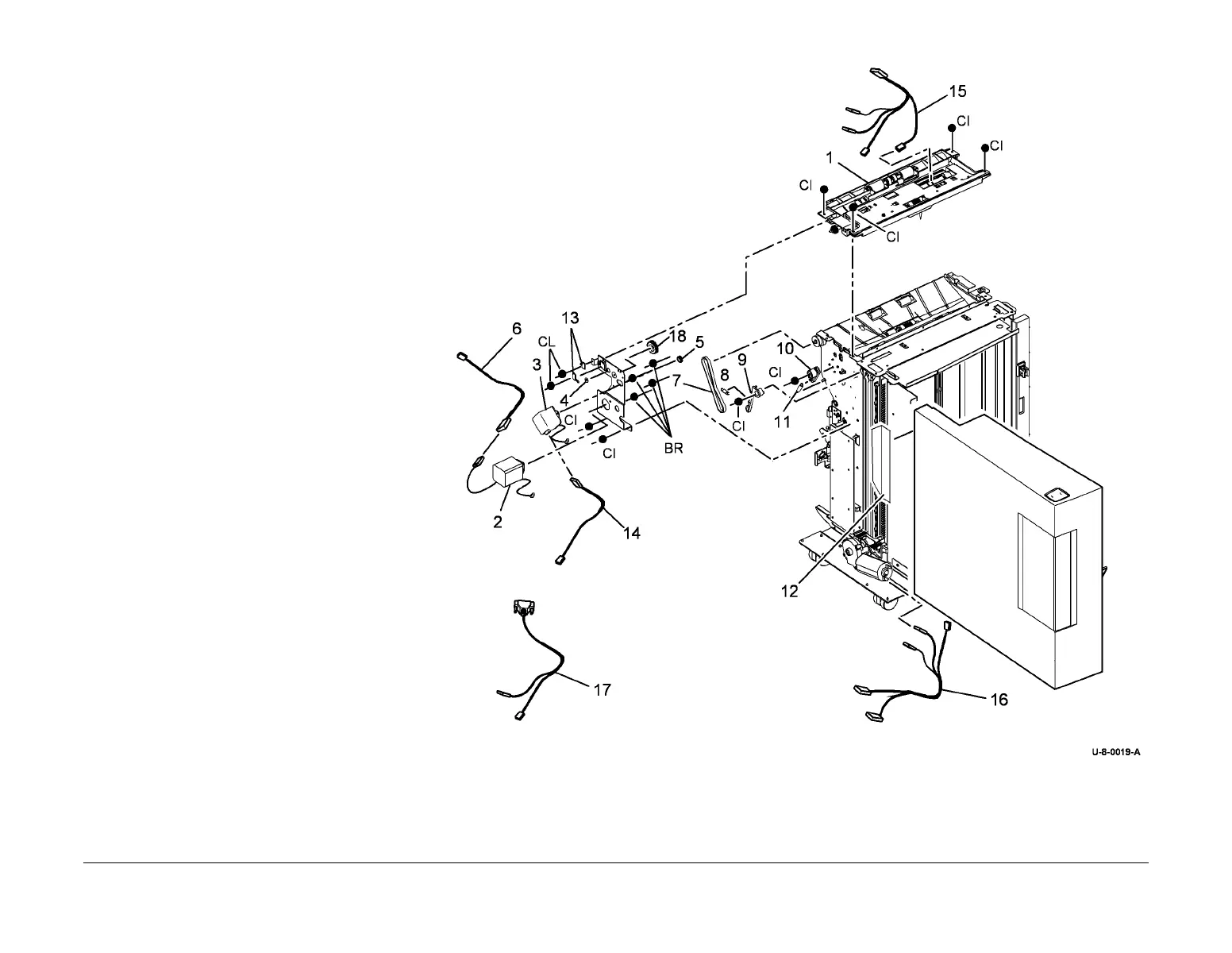

PL 81.40 Tray 5 Feed Assembly (1 of
3)
Item Part Description
1 – Upper feeder assembly (REF: PL
81.45 Item 1)
2 127K56453 Tray 5 transport motor (MOT75-
018) (REP 82.5)
3 127K61980 Feed motor (MOT75-117) (REP
81.12)
4 – Bearing (Not spared)
5 – Gear 14T (P/O PL 81.40 Item 3)
6 – Feed/elevator motor harness (Not
spared)
7 423W09050 Drive belt (REP 82.6)
8 – Upper limit actuator spring (Not
spared)
9 – Upper limit actuator (Not spared)
10 – Belt tensioner (Not spared)
11 – Belt tensioner spring (Not spared)
12 – Elevator harness shield (Not
spared)
13 125E00430 Static eliminator
14 – Transport motor harness (Not
spared) (PJ511)
15 – Tray 5 upper feeder assembly
harness (Not spared) (PJ505)
16 962K50475 Elevator motor harness (PJ504)
17 962K82710 Centre reg interface harness
18 007K14401 Gear 30T Bearing
To Next Page
