February 2013
4-186
ColorQube® 9303 Family
REP 12.47-171, REP 12.48-171
Repairs/Adjustments
9. Figure 4. Remove the top exit feed roll.
Figure 4 Top exit feed roll removal.
Replacement
The replacement procedure is the reverse of the removal procedure.
REP 12.48-171 Compiler Paddle Motor Assembly
Parts List on PL 12.120
Removal
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the rear cover REP 12.1-171.
2. Remove the paddle motor assembly, Figure 1.

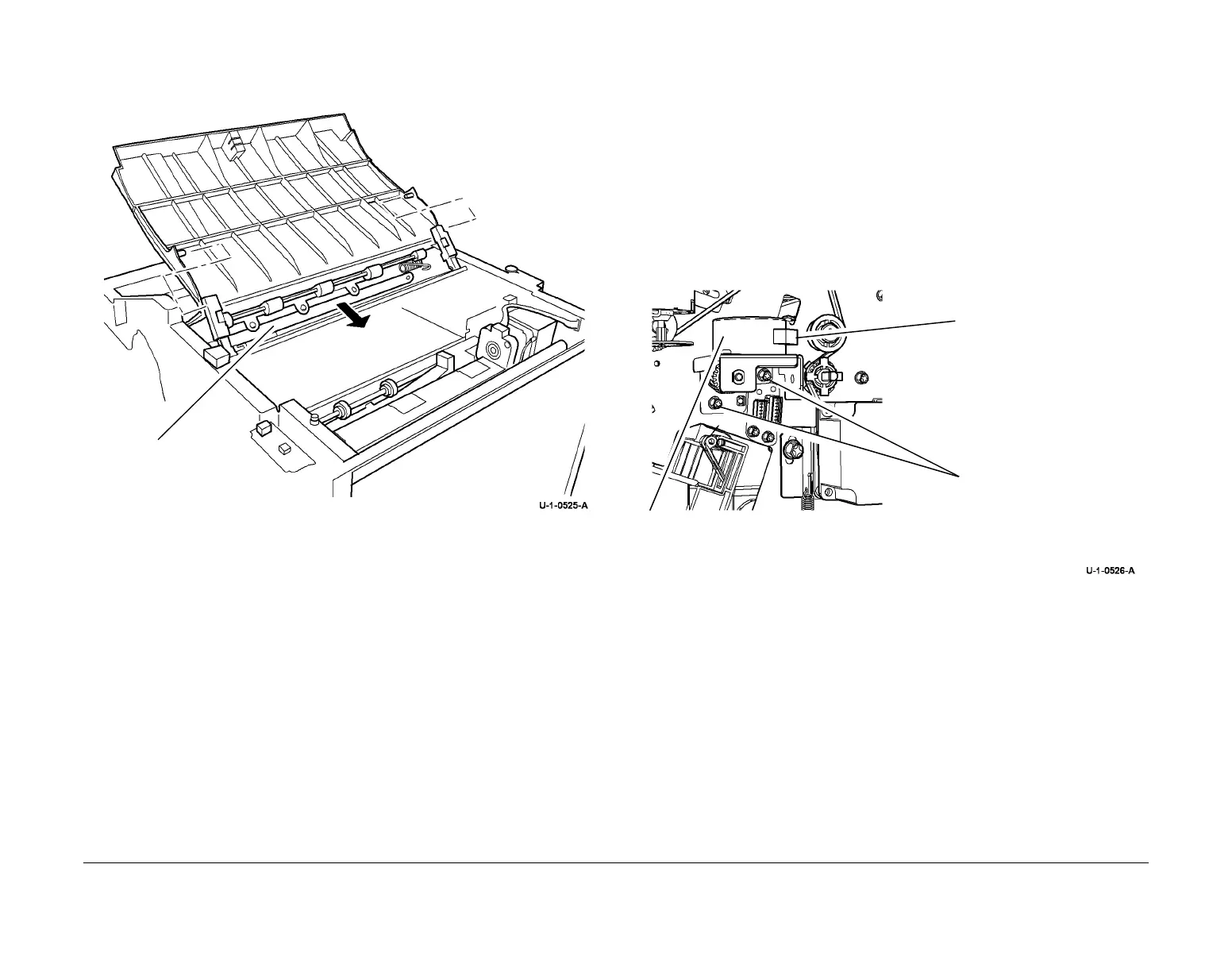

Figure 1 Paddle Motor Assembly
Replacement
Reverse the removal procedures to replace the compiler paddle motor assembly.
1
Remove the
magnet bracket.
2
Remove the top
exit feed roll.
1
Disconnect the motor
PJ.
2
Remove the 2 bracket
screws.
3
Remove the Paddle Motor.
