February 2013
4-243
ColorQube® 9303 Family
REP 62.1
Repairs/Adjustments
REP 62.1 Scanner Module
Parts List on PL 62.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 14. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
WARNING
Take care during this procedure. Sharp edges may be present that can cause injury.
WARNING
Mandatory safety warning. This procedure must be performed by 2 people. The module
is heavy.
1. Remove the DADH, REP 5.19.
2. Prepare to remove the scanner, Figure 1.

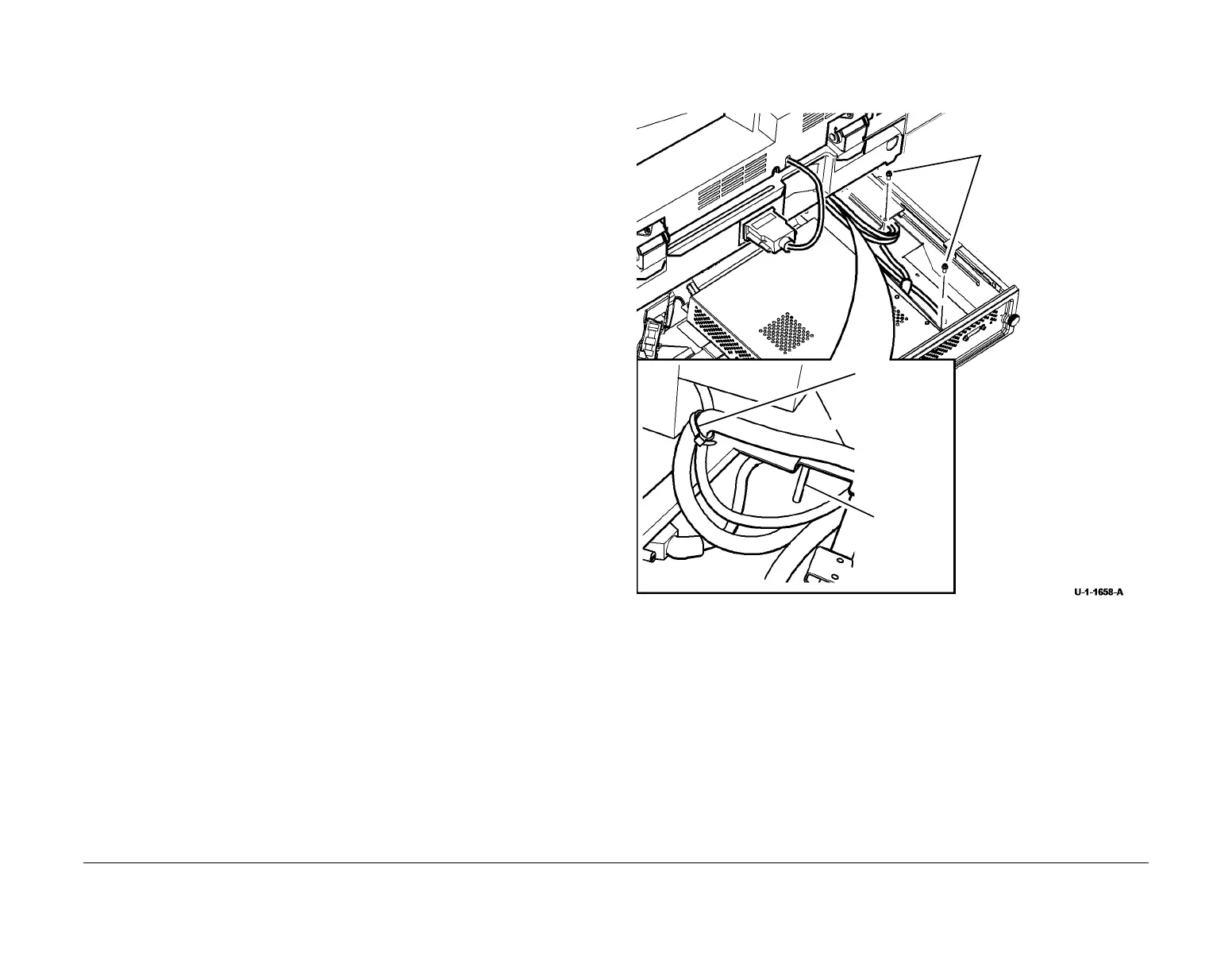

Figure 1 Preparation
3. Remove the SBC PWB cover, PL 3.11 Item 11.
4. Disconnect PJ15, PJ18, PJ19 and PJ223 from the single board controller PWB.
5. Disconnect PJ8 from the power distribution PWB.
6. Release the harnesses from around the post, refer to Figure 1.
WARNING
Use safe handling procedures when removing the module. Refer to GP 16. The module
is heavy.
NOTE: The weight of the scanner is 15Kg (33lb).
7. Remove the scanner module, Figure 2.
1
Remove 2 screws, then
the harness guide plate.
Post
2
Cut the cable
tie that secures
the UI harness.
To Next Page
